| Basic Information | ||
| Supported CPU | support for: 3rd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen processors/ 2nd<br> Generation AMD Ryzen with Radeon Vega Graphics processors/ AMD Ryzen with Radeon <br>Vega Graphics processors | |
| Chipset | AMD X570 | |
| BIOS | 1 x 128 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek ALC1200 codec<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> Support for S/PDIF Out | |
| Memory Specifications | ||
| Type | Dual channel memory architecture | |
| Slots | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Supported Memory | 3rd Generation AMD Ryzen™ processors:<br> Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / <br>3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules<br> 2nd Generation AMD Ryzen™ processors/AMD Ryzen™ with Radeon™ Vega Graphics <br>processors:<br> Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules | |
| Max. Memory | 128 GB | |
| Expansion Slots | ||
| PCI | Integrated in the CPU (PCIEX16):<br> · 3rd Generation AMD Ryzen processors:<br> 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16<br> · 2nd Generation AMD Ryzen processors:<br> 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16<br> For optimum performance, if only one PCI Express graphics card is to be installed, be sure to <br>install it in the PCIEX16 slot.<br> · 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/AMD Ryzen with Radeon<br> Vega Graphics processors:<br> 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8<br> Integrated in the Chipset (PCIEX4/PCIEX1):<br> 1 x PCI Express x16 slot, supporting PCIe 4.0/3.0 and running at x4 (PCIEX4)<br> For 3rd Generation AMD Ryzen processors only.<br> 2 x PCI Express x1 slots, supporting PCIe 4.0/3.0<br> For 3rd Generation AMD Ryzen processors only. | |
| M.2 Socket | Integrated in the CPU (M2A_SOCKET):<br> · 3rd Generation AMD Ryzen processors:<br> 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)<br> · 2nd Generation AMD Ryzen processors/2nd Generation AMD Ryzen with Radeon Vega <br>Graphics processors/AMD Ryzen with Radeon Vega Graphics processors:<br> 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)<br> Integrated in the Chipset (M2B_SOCKET):<br> 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0/3.0 x4/x2 <br>SSD support)<br> For 3rd Generation AMD Ryzen processors only. | |
| Graphics | ||
| Max Shared Memory | 16 GB | |
| Graphics | Integrated Graphics Processor:<br> 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> Support for HDMI 2.0 version, HDCP 2.2, and HDR.<br> Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ <br>with Radeon™ Vega Graphics processors only. | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| USB (s) | Integrated in the CPU:<br> 4 x USB 3.2 Gen 1 ports on the back panel<br> Chipset:<br> 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header<br> 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel<br> 4 x USB 3.2 Gen 1 ports available through the internal USB headers<br> Chipset+2 USB 2.0 Hubs:<br> 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) | |
| LAN Port (s) | 1 x RJ-45 port<br> Intel GbE LAN chip (10/100/1000 Mbit) | |
| Audio | 5 x audio jacks<br> Realtek ALC1200 codec<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> Support for S/PDIF Out | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 1 x water cooling CPU fan header<br> 2 x system fan headers<br> 2 x addressable LED strip headers<br> 2 x RGB LED strip headers<br> 1 x CPU cooler LED strip/RGB LED strip header<br> 2 x M.2 Socket 3 connectors<br> 6 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C™ port, with USB 3.2 Gen 2 support<br> 2 x USB 3.2 Gen 1 headers<br> 2 x USB 2.0/1.1 headers<br> 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)<br> 1 x Clear CMOS jumper<br> 1 x Q-Flash Plus button | |
| Others Information | ||
| Special Features | Support for APP Center<br> Available applications in APP Center may vary by motherboard model. Supported functions of <br>each application may also vary depending on motherboard specifications.<br> @BIOS<br> AutoGreen<br> Cloud Station<br> EasyTune<br> Fast Boot<br> Game Boost<br> ON/OFF Charge<br> RGB Fusion<br> Smart Backup<br> Smart Keyboard<br> Smart Survey<br> System Information Viewer<br> USB Blocker<br> Support for Q-Flash Plus<br> Support for Q-Flash<br> Support for Xpress Install | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years | |

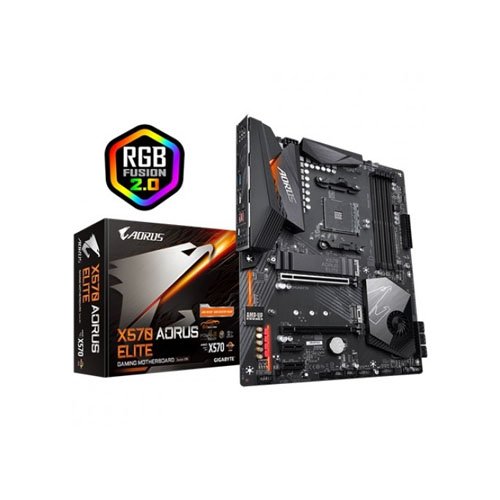

GIGABYTE X570 motherboards based on the AMD X570 Chipset provide full support for latest AMD Ryzen™ 5000 Series Processors. The all-new design is a testament to GIGABYTE dedication to design quality. GIGABYTE X570 motherboards offer a rich list of features such as support for PCIe 4.0, USB Type-C™ interfaces on select boards, refined audio, high speed of Ethernet and latest standard of WIFI design, to fulfill users' performance, audio, and data transfer needs. The new, advanced power and thermal design enables users to unleash the performance on AMD Ryzen™ 5000 Series Processors, making the GIGABYTE X570 motherboards perfect for users looking to build the best AMD platform gaming system.
The latest price of Gigabyte X570 Aorus Elite AMD ATX Motherboard in Bangladesh is 22,000৳ You can buy the Gigabyte X570 Aorus Elite AMD ATX Motherboard at best price from our Website or visit any of our showrooms.
