| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors<br> L3 cache varies with CPU | |
| Chipset | Intel H610 Express Chipset | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm | |
| Audio | Realtek Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel | |
| Memory Specifications | ||
| Type | DDR4 | |
| Slots | 2 x DDR DIMM sockets | |
| Supported Memory | 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules<br> Dual channel memory architecture<br> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for Extreme Memory Profile (XMP) memory modules | |
| Max. Memory | Up to 64 GB (32 GB single DIMM capacity) of system memory | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16<br> * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to<br> install it in the PCIEX16 slot.<br> (The PCI Express x16 slot conforms to PCI Express 4.0 standard.)<br> 1 x PCI Express x1 slot<br> (The PCI Express x1 slot conforms to PCI Express 3.0 standard.) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support:<br> 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz<br> 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> * Support for HDMI 2.1 version and HDCP 2.3.<br> ** Support native HDMI 2.1 TMDS compatible ports | |
| Connector & Ports | ||
| HDMI | 1 x HDMI 2.0 port | |
| USB (s) | Chipset:<br> 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)<br> 4 x USB 2.0/1.1 ports on the back panel<br> Chipset+USB 2.0 Hub:<br> 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| LAN Port (s) | Intel GbE LAN chip (1 Gbps/100 Mbps) | |
| Supported Storage | Chipset:<br> 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)<br> 4 x SATA 6Gb/s connectors | |
| Audio | 3 x audio jacks | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x M.2 Socket 3 connector<br> 4 x SATA 6Gb/s connectors<br> 1 x CPU fan header<br> 2 x system fan headers<br> 1 x RGB LED strip header<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)<br> 1 x serial port header<br> 1 x Clear CMOS jumper | |
| D-Sub (s) | 1 x D-Sub port | |
| Others Information | ||
| Special Features | Support for APP Center<br> * Available applications in APP Center may vary by motherboard model. Supported functions <br>of each application may also vary depending on motherboard specifications.<br> @BIOS<br> Ambient LED<br> EasyTune<br> Fast Boot<br> Game Boost<br> ON/OFF Charge<br> Smart Backup<br> System Information Viewer<br> Support for Q-Flash<br> Support for Xpress Install | |
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

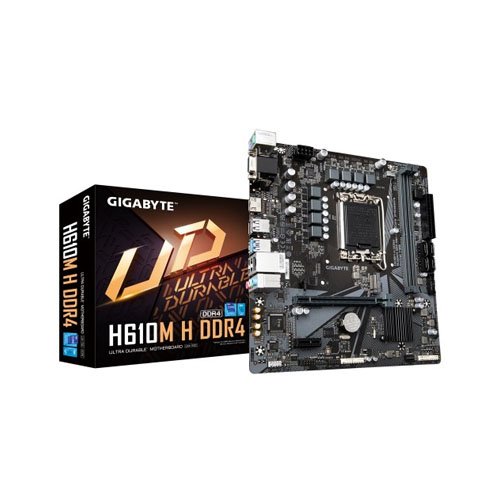

The Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard is a compact yet powerful solution designed for users looking to build a reliable and high-performance PC with Intel’s 12th Generation processors. Supporting LGA1700 socket CPUs, including Intel Core, Pentium Gold, and Celeron processors, this motherboard ensures compatibility with a wide range of computing needs. Built on the Intel H610 Express Chipset, it provides efficient performance while maintaining energy efficiency and stability for daily computing, gaming, and professional workloads. This Micro ATX motherboard supports up to 64GB of DDR4 memory across two DIMM slots, accommodating high-speed modules up to 3200 MHz. Dual-channel memory architecture, Extreme Memory Profile (XMP) support, and compatibility with ECC and non-ECC modules offer flexibility for both standard and advanced memory configurations. For graphics, it comes with integrated Intel HD Graphics, featuring a D-Sub port supporting 1920x1200 resolution and an HDMI 2.1 port supporting up to 4096x2160 resolution at 60Hz, making it ideal for multimedia applications and modern displays. Expansion and connectivity are well-covered with one PCIe x16 slot (PCIe 4.0) for dedicated graphics, a PCIe x1 slot (PCIe 3.0) for additional cards, an M.2 connector for high-speed SSDs, and four SATA 6Gb/s connectors for storage. It also includes a range of USB ports (USB 3.2 Gen 1 and USB 2.0/1.1), Intel GbE LAN for stable networking, and three high-definition audio jacks powered by Realtek Audio CODEC. Internal headers support RGB lighting, multiple fans, front panel audio, and USB connections, while specialized features such as Q-Flash, EasyTune, Smart Backup, and APP Center provide convenience for system management and performance tuning. With a robust power design, user-friendly BIOS, and a compact 23cm x 21.5cm Micro ATX form factor, the Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard is an ideal choice for those seeking durability, efficiency, and modern features in one motherboard, backed by a 3-year manufacturing warranty for peace of mind.
The Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard offers a combination of performance, reliability, and modern features, making it an ideal choice for gamers, content creators, and professionals. Designed for Intel’s 12th Gen processors, this motherboard delivers seamless computing, advanced connectivity, and future-ready expansion options.
Key Benefits:
12th Gen Intel CPU Support: Compatible with Intel Core, Pentium Gold, and Celeron processors for versatile performance.
High-Speed DDR4 Memory: Supports up to 64GB with dual-channel architecture and XMP profiles for enhanced multitasking.
Advanced Graphics Support: Integrated Intel HD Graphics with HDMI 2.1 and D-Sub ports for high-resolution display options.
Expandable & Versatile: One PCIe x16 slot, one PCIe x1 slot, M.2 connector, and four SATA 6Gb/s ports for storage and expansion.
Robust Audio & Networking: Realtek HD audio and Intel GbE LAN provide clear sound and stable internet connectivity.
User-Friendly BIOS & Tools: Features like Q-Flash, EasyTune, Smart Backup, and APP Center simplify setup and system optimization.
Compact Micro ATX Form Factor: Efficient design allows installation in small to mid-size PC builds without compromising functionality.
Durable & Reliable: High-quality components and a solid power design ensure stability and long-term performance.
Build or upgrade your PC today with the Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard and experience top-tier performance and reliability! With its advanced features, flexible memory and storage options, and user-friendly interface, this motherboard is perfect for gaming, office, or creative setups. Available in the Motherboard, GIGABYTE (Intel) category, you can get this premium motherboard from Tech Valley and take your PC performance to the next level!
The latest price of Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard in Bangladesh is 10,700৳ You can buy the Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard at best price from our Website or visit any of our showrooms.
