| Basic Information | ||
| Supported CPU | 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors<br> 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / <br>Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors<br> * Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family. | |
| Chipset | Intel H510 Express Chipset | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.0cm | |
| Audio | Realtek Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel | |
| Memory Specifications | ||
| Type | Dual channel memory architecture | |
| Slots | 2 x DDR4 DIMM | |
| Supported Memory | 11th Generation Intel Core i9/i7/i5 processors:<br> Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules<br> 10th Generation Intel Core i9/i7 processors:<br> Support for DDR4 2933/2666/2400/2133 MHz memory modules<br> 10th Generation Intel Core i5/i3/Pentium/Celeron processors:<br> Support for DDR4 2666/2400/2133 MHz memory modules<br> 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system <br>memory<br> Dual channel memory architecture<br> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for Extreme Memory Profile (XMP) memory modules | |
| Max. Memory | 64 GB (32 GB single DIMM capacity) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support:<br> 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz<br> 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz<br> * Support for HDMI 1.4 version and HDCP 2.3. | |
| Connector & Ports | ||
| HDMI | 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz | |
| USB (s) | Chipset:<br> 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)<br> 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) | |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbit/100 Mbit) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)<br> 4 x SATA 6Gb/s connectors<br> * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. | |
| Audio | 3 x audio jacks | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 1 x system fan header<br> 1 x RGB LED strip header<br> 1 x M.2 Socket 3 connector<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB 3.2 Gen 1 header<br> 1 x USB 2.0/1.1 header<br> 1 x serial port header<br> 1 x Clear CMOS jumper | |
| D-Sub (s) | 1 x D-Sub port | |
| Others Information | ||
| Special Features | Support for APP Center<br> @BIOS<br> Ambient LED<br> EasyTune<br> Fast Boot<br> Game Boost<br> ON/OFF Charge<br> Smart Backup<br> System Information Viewer<br> Support for Q-Flash<br> Support for Xpress Install | |
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

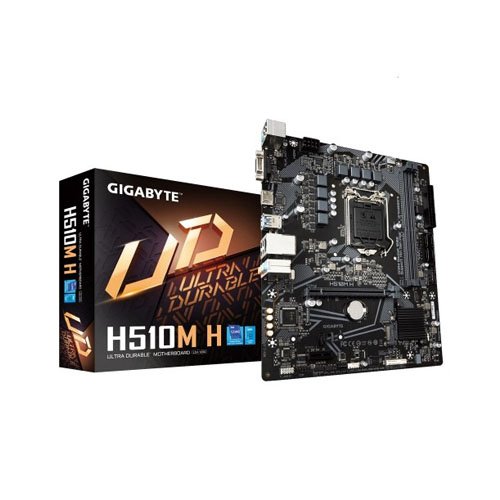

Get gaming-level performance and DisplayPort connectivity with the H510M H Micro-ATX Motherboard from Gigabyte. Utilizing the Intel H510 Express Chipset, this motherboard is meant to be used with CPUs that support the intel socket. Install up to 64GB of dual-channel DDR4 RAM across four slots. Storage drives are often installed using four SATA III connectors or an M.2 slot. Gigabyte H510M H Motherboard supports 11th and 10th Gen Intel Core Series Processors and comes with Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs. It features Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface. It is powered by GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management. Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users with the most comprehensive features and the fastest and smoothest Internet experience. Gigabyte H510M H Motherboard use high-end audio capacitors. These high-quality capacitors help deliver high resolution and high-fidelity audio to provide the most realistic sound effects for gamers. It features an audio noise guard that essentially separates the board’s sensitive analogue audio components from potential noise pollution at the PCB level. Gigabyte H510M H use Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. Gigabyte H510M H Motherboard use rear I/O panel sports four USB 3.2 Gen 1 and two USB 2.0 ports, also as a PS/2 combo port for connecting legacy mice or keyboards. DisplayPort, HDMI, and DVI-D outputs accommodate displays, while an RJ45 port supports Gigabit Ethernet. Three 3.5mm audio ports also are present on the rear panel. The H510M H Micro-ATX Motherboard utilizes the Realtek audio codec and supports Windows 10 64-bit operating systems.
The latest price of Gigabyte H510M H Intel 10th and 11th Gen Micro ATX Motherboard in Bangladesh is 10,000৳ You can buy the Gigabyte H510M H Intel 10th and 11th Gen Micro ATX Motherboard at best price from our Website or visit any of our showrooms.
