| Supported CPU | LGA1200 package: 11th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors L3 cache varies with CPU |
|
| Chipset | Intel H470 Express Chipset | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 22.6cm x 18.5cm |
|
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot: Supporting PCIe 3.0 and running at x16 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
|
| M.2 Socket | 1 x M.2 connector: Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x DIMM | |
| Supported Memory | 11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer to "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz |
|
| Maximum Memory | 64GB (32 GB single DIMM capacity) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz |
|
| Max Shared Memory | 512MB | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz | |
| USB (s) | 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
|
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps) | |
| Supported Storage | 1 x M.2 connector: Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD 2 x SATA 6Gb/s connectors Intel Optane Memory Ready |
|
| RAID | Support for RAID 0, RAID 1, and RAID 5 | |
| Audio | 1 x front panel audio header | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper |
|
| Others | ||
| Special Features | Support for APP Center @BIOS Ambient LED EasyTune ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 Years | |

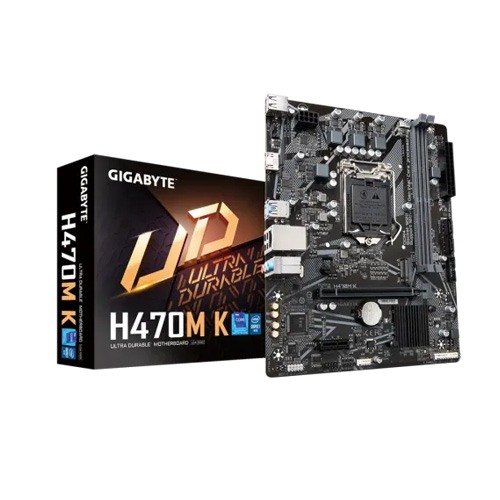

The Gigabyte H470M K Micro ATX Motherboard is a reliable and performance-driven solution designed for 10th Gen Intel Core processors using the LGA1200 socket. Built on the Intel H470 chipset, this motherboard offers a balanced combination of stability, expandability, and essential features, making it ideal for home, office, and mainstream gaming PCs. Its Micro ATX form factor ensures compatibility with compact and mid-sized PC cases while still providing ample connectivity and expansion options. Equipped with dual DDR4 DIMM slots, it supports high-speed memory modules to ensure smooth multitasking and responsive system performance. The board includes PCIe slots for graphics cards and additional expansion cards, allowing users to customize their build according to their needs. For storage, it features SATA connectors and an M.2 slot for faster NVMe SSD support, enabling quicker boot times and rapid data access. The motherboard is engineered with high-quality components and durable capacitors to ensure long-lasting performance and stable power delivery. It also integrates Realtek audio technology for clear sound output and Gigabit LAN for stable and fast network connectivity. With multiple USB ports, HDMI and DVI display outputs, and comprehensive BIOS support, the Gigabyte H470M K delivers flexibility and user-friendly configuration. Whether you are building a budget gaming PC or a dependable workstation, this motherboard provides the essential features and performance required for a modern computing experience.
The Gigabyte H470M K Micro ATX Motherboard is designed to deliver stable performance and essential connectivity for everyday computing and gaming needs.
It combines durable components, modern storage support, and reliable networking features in a compact Micro ATX design.
The latest price of Gigabyte H470M K Micro ATX Motherboard in Bangladesh is 9,500৳ You can buy the Gigabyte H470M K Micro ATX Motherboard at best price from our Website or visit any of our showrooms.
