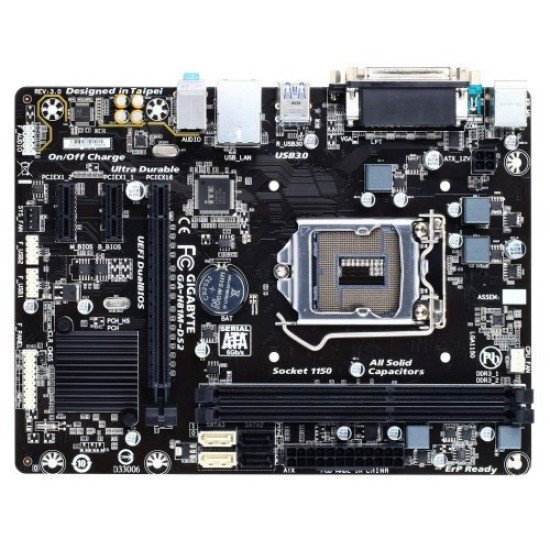

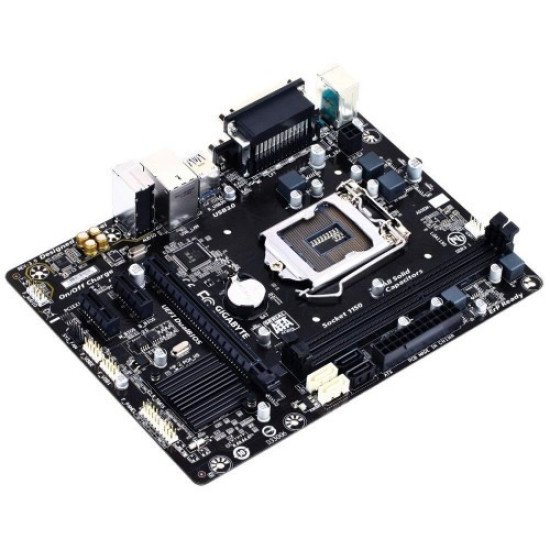

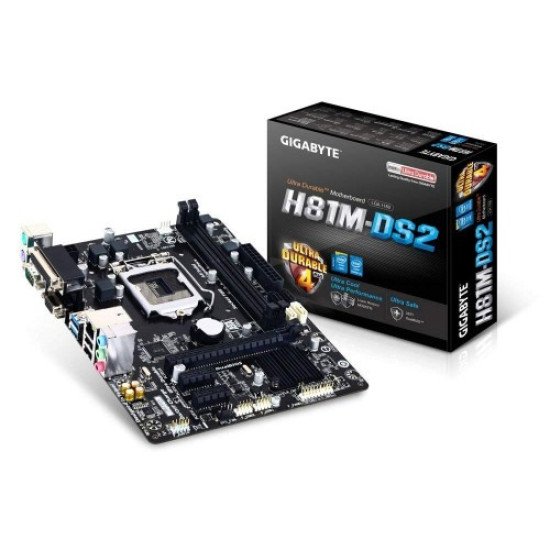

Gigabyte GA-H81M-DS2 Micro ATX Motherboard

Gigabyte GA-H81M-DS2 Micro ATX Motherboard

The Gigabyte GA-H81M-DS2 Micro ATX Motherboard is a reliable and compact motherboard designed for users who want a stable, high-performance platform for their Intel-based systems. Built with the Intel H81 Express chipset, this motherboard supports a wide range of Intel processors, including Core i7, i5, i3, Pentium, and Celeron CPUs in the LGA1150 package, making it versatile for both professional and home computing setups. With support for dual-channel DDR3 memory, the GA-H81M-DS2 allows up to 16GB of RAM across 2 DIMM slots, supporting DDR3 speeds of 1600/1333 MHz and Extreme Memory Profile (XMP) modules for enhanced memory performance. Its Micro ATX form factor (22.6cm x 17cm) makes it ideal for compact builds without compromising expandability. For graphics, the motherboard features a PCI Express x16 slot and two PCI Express x1 slots, providing flexibility for graphics cards and expansion cards. Integrated graphics support is available via a D-Sub port, capable of outputting resolutions up to 1920x1200, suitable for basic display needs. Connectivity options include up to 2 USB 3.0 ports and 6 USB 2.0 ports, a Realtek GbE LAN port for fast networking, and support for 4 SATA ports (2 x SATA 6Gb/s and 2 x SATA 3Gb/s) to connect SSDs, HDDs, and optical drives. The onboard Realtek ALC887 audio codec delivers high-definition audio with support for 2/4/5.1/7.1 channels, providing immersive sound for multimedia applications. The motherboard also features essential internal connectors, including 24-pin ATX and 4-pin CPU power connectors, fan headers, USB headers, front panel connectors, and a Clear CMOS jumper for easy system maintenance. Backed by a 3-year manufacturing warranty, the Gigabyte GA-H81M-DS2 Micro ATX Motherboard offers a dependable, feature-rich, and cost-effective platform for building or upgrading Intel-based desktops, ensuring reliable performance for daily computing, office work, and light gaming.

Features Of Gigabyte GA-H81M-DS2 Micro ATX Motherboard

• CPU Support: Compatible with 4th Generation Intel® Core™ i7, i5, i3, Pentium®, and Celeron® processors in the LGA1150 socket, providing flexibility for various desktop builds.
• Chipset: Powered by the Intel® H81 Express chipset, ensuring stable performance and compatibility with a wide range of Intel CPUs.
• Memory Support: Features dual-channel DDR3 memory architecture with 2 x 1.5V DIMM slots, supporting up to 16GB of RAM at speeds of 1600/1333 MHz and XMP memory profiles.
• Expansion Slots: Includes 1 PCI Express x16 slot and 2 PCI Express x1 slots, enabling installation of graphics cards, sound cards, or other expansion devices.
• Graphics Output: Integrated D-Sub port supporting resolutions up to 1920x1200, suitable for basic display setups without a dedicated GPU.

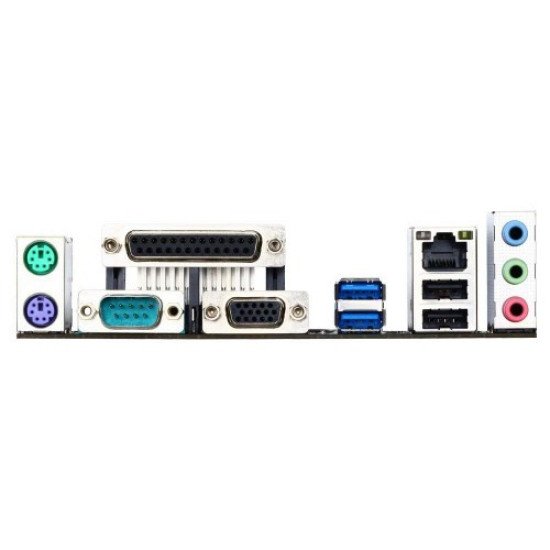

• Connectivity Options: Provides up to 2 USB 3.0 ports and 6 USB 2.0 ports, Realtek GbE LAN, and 4 SATA ports (2 x SATA 6Gb/s, 2 x SATA 3Gb/s) for storage and networking needs.
• Audio & Internal I/O: Equipped with Realtek ALC887 HD Audio codec supporting 2/4/5.1/7.1 channels, ATX 24-pin & 4-pin CPU power connectors, fan headers, front panel headers, USB headers, and a Clear CMOS jumper for easy setup and maintenance.
