| Basic Information | ||
| Supported CPU | LGA1851 socket: Support for Intel Core Ultra Processors | |
| Chipset | Intel B860 Express Chipset | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 22.5cm | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. | |
| Memory | Support for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules | |
| General | ||
| OS | Support for Windows 11 64-bit Support for Windows 10 64-bit | |
| Memory Specifications | ||
| Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) | |
| Motherboard | ||
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |

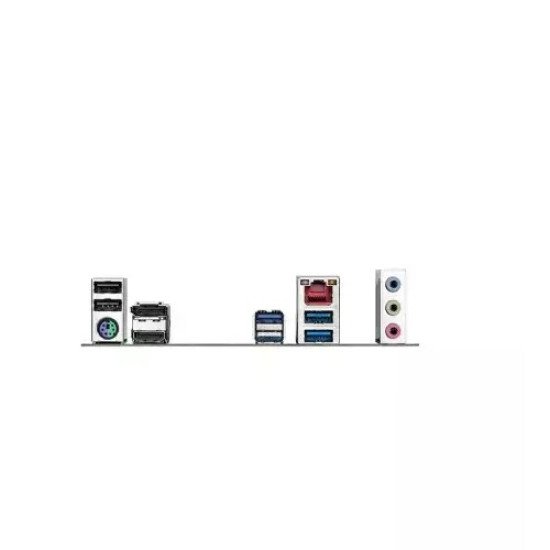

| External I/O Ports | 3 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x DisplayPort* 1 x HDMI port* 3 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks | |
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| Others | ||
| Software | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control | |
| Connector & Ports | ||
| USB (s) | Chipset: - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 3 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 3 x addressable RGB Gen2 LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper | |
| Others Information | ||
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup | |
| Warranty Information | ||
| Warranty | 3 Years | |

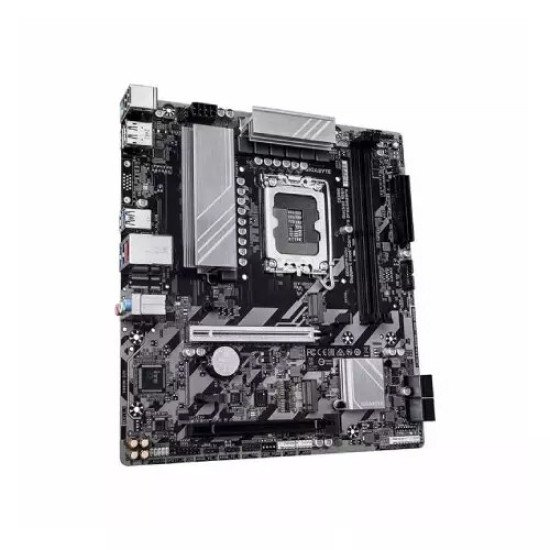

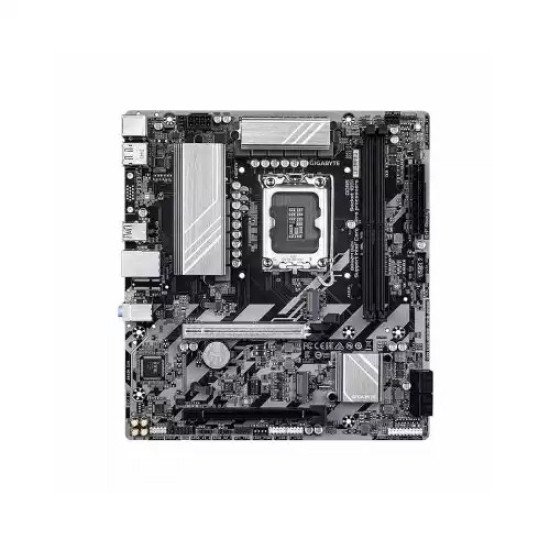

The Gigabyte B860M D2H DDR5 LGA1851 Socket Motherboard is a high-performance, feature-rich motherboard designed for enthusiasts and professionals seeking reliability and speed in a compact Micro ATX form factor. Built around the Intel B860 Express chipset, this motherboard supports the latest Intel Core Ultra Processors via the LGA1851 socket, providing a robust foundation for high-end computing tasks, gaming, and productivity applications. Equipped with dual DDR5 DIMM slots, it supports up to 128 GB of system memory and offers exceptional memory overclocking capabilities, with speeds reaching up to 9066 MHz (O.C.). Users can enjoy faster data transfer rates and improved multitasking performance, while support for XMP profiles ensures hassle-free memory tuning. For storage, the B860M D2H provides multiple options, including two M.2 PCIe 4.0 slots and four SATA 6Gb/s connectors, allowing for high-speed NVMe SSDs and traditional SATA drives. RAID 0, 1, 5, and 10 configurations are also supported, giving users flexibility in balancing performance and redundancy. Graphics output is versatile with DisplayPort 2.1 supporting 4K at 144Hz and HDMI 2.1 supporting 4K at 60Hz, perfect for high-resolution displays. The motherboard also features a 2.5GbE Realtek LAN chip for fast and reliable network connectivity and high-definition Realtek audio codec supporting up to 7.1 channels for immersive sound. Additional highlights include multiple PCIe slots including PCIe 5.0 x16 for next-gen graphics cards, RGB lighting headers, USB 3.2 Gen 1 and USB 2.0 ports, Q-Flash Plus for easy BIOS updates, and comprehensive system monitoring capabilities. With Windows 10 and 11 support, this motherboard is an ideal choice for both modern gaming and professional computing setups. Backed by a 3-year warranty, the Gigabyte B860M D2H ensures long-lasting performance and reliability in a compact, Micro ATX design.
The latest price of Gigabyte B860M D2H DDR5 LGA1851 Socket Motherboard in Bangladesh is 17,304৳ You can buy the Gigabyte B860M D2H DDR5 LGA1851 Socket Motherboard at best price from our Website or visit any of our showrooms.
