| Basic Information | ||
| Supported CPU | Intel Core Ultra Processors<br> L3 cache | |
| Chipset | Intel B860 Express Chipset | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel | |
| Type | DDR5 | |
| Memory Specifications | ||
| Maximum Memory | Up to 256 GB (64 GB single DIMM capacity) | |
| Slots | 4 x DIMM | |
| Supported Memory | Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules<br> | |
| Expansion Slots | ||
| PCI | PCI<br> CPU:<br> - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)<br> Chipset:<br> - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) | |
| M.2 Socket | CPU:<br> - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)<br> Chipset:<br> - 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)<br> - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB) | |
| Motherboard | ||
| Supported Storage | CPU:<br> - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)<br> Chipset:<br> - 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)<br> - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB)<br> - 4 x SATA 6Gb/s connectors | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support:<br> - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz<br> * Support for DisplayPort 2.1 version.<br> <br> - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz<br> * Support for DisplayPort 2.1 version.<br> - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> * Support for HDMI 2.1 version and HDCP 2.3.<br> - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version.(Graphics specifications may vary depending on CPU support.)<br> Support for up to quad-display at the same time | |
| Connector & Ports | ||
| HDMI | 2 x HDMI | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| Display Port (s) | 1 x DisplayPort | |
| USB (s) | CPU:<br> - 1 x USB4 USB Type-C port on the back panel<br> Chipset:<br> - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header<br> - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel<br> - 2 x USB 3.2 Gen 1 ports available through the internal USB header<br> Chipset+USB 3.2 Gen 1 Hub:<br> - 4 x USB 3.2 Gen 1 ports on the back panel<br> Chipset+2 USB 2.0 Hubs:<br> - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)<br> | |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)<br> | |
| Wireless Communication module | Intel Wi-Fi 6E AX211 (PCB rev. 1.0)<br> - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands<br> - BLUETOOTH 5.3<br> - Support for 11ax 160MHz wireless standard<br> Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)<br> - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands<br> - BLUETOOTH 5.3<br> - Support for 11ax 160MHz wireless standard<br> (Actual data rate may vary depending on environment and equipment.) | |
| Audio | 1 x front panel audio header<br> 2 x audio jacks | |

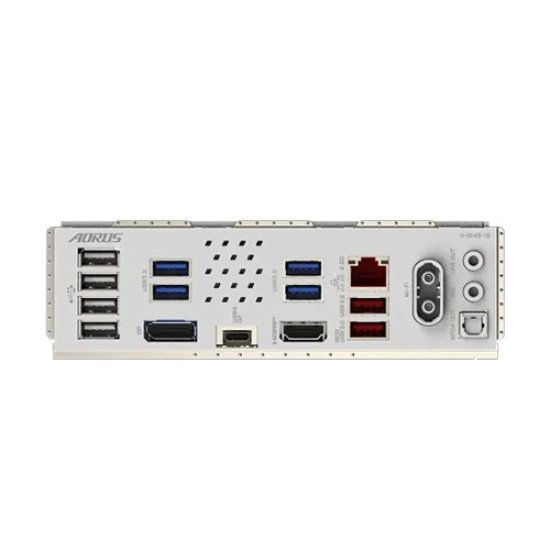

| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 2 x 8-pin ATX 12V power connectors<br> 1 x CPU fan header<br> 1 x CPU fan/water cooling pump header<br> 3 x system fan headers<br> 1 x system fan/water cooling pump header<br> 3 x addressable RGB Gen2 LED strip headers<br> 1 x RGB LED strip header<br> 3 x M.2 Socket 3 connectors<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C® header, with USB 3.2 Gen 2 support<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 2 x Thunderbolt™ add-in card connectors<br> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)<br> 1 x HDMI port*<br> 1 x power button<br> 1 x reset button<br> 1 x Q-Flash Plus button<br> 1 x reset jumper<br> 1 x Clear CMOS jumper<br> Back Panel Connectors:<br> 4 x USB 2.0/1.1 ports<br> 4 x USB 3.2 Gen 1 ports<br> 1 x DisplayPort*<br> 1 x USB4® USB Type-C® port (DisplayPort*)<br> 1 x HDMI port*<br> 1 x RJ-45 port<br> 2 x USB 3.2 Gen 2 Type-A ports (red)<br> 2 x antenna connectors (2T2R)<br> 2 x audio jacks<br> 1 x optical S/PDIF Out connector | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| Others Information | ||
| Bundled Software | Norton Internet Security (OEM version)<br> LAN bandwidth management software | |
| Special Features | Support for GIGABYTE Control Center (GCC)<br> Support for Q-Flash<br> Support for Q-Flash Plus<br> Support for Smart Backup | |
| Warranty Information | ||
| Warranty | 3 Year Warranty | |

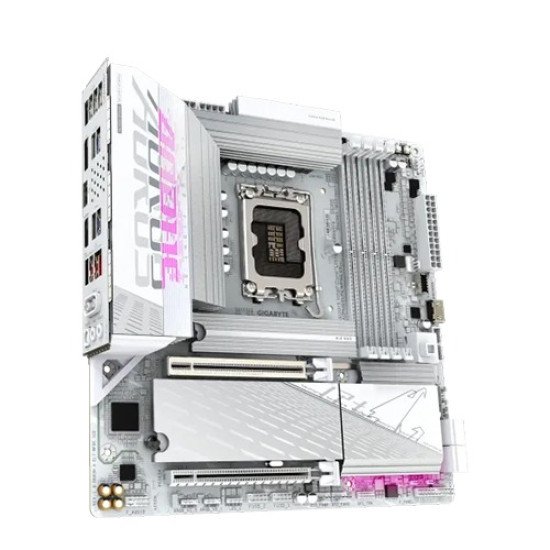

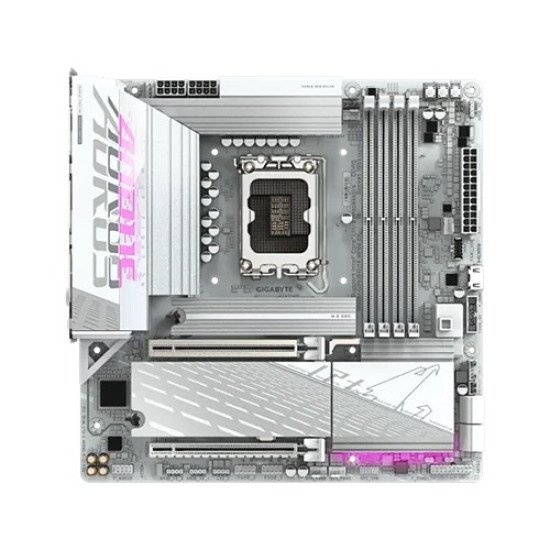

The GIGABYTE B860M A ELITE WF6E ICE Motherboard is engineered to deliver exceptional performance, reliability, and next-generation connectivity for modern gaming and productivity systems. Designed for Intel Core Ultra processors, it utilizes the advanced LGA1851 socket and Intel B860 Express Chipset, ensuring optimized power delivery and efficiency for the latest CPU architectures. With support for up to 256GB of ultra-fast DDR5 memory, reaching speeds up to 9200 MT/s (OC), this motherboard provides the speed and multitasking capability demanded by enthusiasts and creators. Visual performance reaches new heights thanks to support for USB4 Type-C, DisplayPort 2.1, and HDMI 2.1 outputs, enabling resolutions as high as 4K at high refresh rates and multi-display configurations of up to four screens. The board integrates Intel Wi-Fi 6E and Realtek 2.5GbE LAN, delivering blazing-fast wired and wireless connectivity along with Bluetooth 5.3 for seamless peripheral pairing. For expansion, users benefit from a PCIe 5.0 x16 slot, ideal for modern graphics cards or NVMe storage, and two additional PCIe 4.0 slots for added versatility. Storage options are equally impressive, featuring three M.2 slots supporting PCIe 5.0 and 4.0 SSDs, along with four SATA 6Gb/s ports and full RAID support. The GIGABYTE B860M A ELITE WF6E ICE also includes refined audio powered by Realtek 7.1-channel HD Audio with S/PDIF Out, delivering premium clarity for immersive sound experiences. Additional conveniences such as RGB lighting, Q-Flash Plus BIOS updating, multiple fan headers, and Windows 11 compatibility make it a complete solution for high-performance PC builds. With its durable design and Micro ATX form factor, this motherboard offers exceptional power, flexibility, and aesthetics for gamers and professionals alike.
The latest price of GIGABYTE B860M A ELITE WF6E ICE Motherboard in Bangladesh is 34,505৳ You can buy the GIGABYTE B860M A ELITE WF6E ICE Motherboard at best price from our Website or visit any of our showrooms.
