| Basic Information | ||
| Supported CPU | Intel Core Ultra Processors<br> L3 cache | |
| Chipset | Intel B860 Express Chipset | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0<br> | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek® Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel | |
| Type | DDR5 | |
| Memory Specifications | ||
| Maximum Memory | Up to 256 GB (64 GB single DIMM capacity) | |
| Slots | 4 x DIMM | |
| Supported Memory | Support for DDR5 9200(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules | |
| Expansion Slots | ||
| PCI | CPU:<br> - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)<br> * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.<br> Chipset:<br> - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1(PCIEX1_1, PCIEX1_2)<br> | |
| M.2 Socket | CPU:<br> - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU)<br> Chipset:<br> - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2N_SB) - 4 x SATA 6Gb/s connectors<br> RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| Motherboard | ||
| Supported Storage | CPU:<br> - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU) Chipset:<br> - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2N_SB) - 4 x SATA 6Gb/s connectors | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support:<br> - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs <br>and a maximum resolution of 3840x2160@144 Hz<br> * Support for DisplayPort 2.1 version.<br> <br> - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version.<br> <br> - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3.<br> <br> - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz<br> * Support for HDMI 1.4 version(Graphics specifications may vary depending on CPU support)<br> Support for up to quad-display at the same time | |
| Connector & Ports | ||
| HDMI | 2 x HDMI | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| Display Port (s) | 1 x DisplayPort | |
| USB (s) | CPU:<br> - 1 x USB4® USB Type-C® port on the back panel<br> Chipset:<br> - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header<br> - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel<br> - 2 x USB 3.2 Gen 1 ports available through the internal USB header<br> Chipset+USB 3.2 Gen 1 Hub:<br> - 4 x USB 3.2 Gen 1 ports on the back panel<br> Chipset+2 USB 2.0 Hubs:<br> - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) | |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless Communication module | Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.0)<br> - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands<br> - BLUETOOTH 5.4<br> - Support for 11be 160MHz wireless standard<br> MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.1)<br> - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands<br> - BLUETOOTH 5.4<br> - Support for 11be 160MHz wireless standard | |
| Audio | 1 x front panel audio header<br> 2 x audio jacks | |

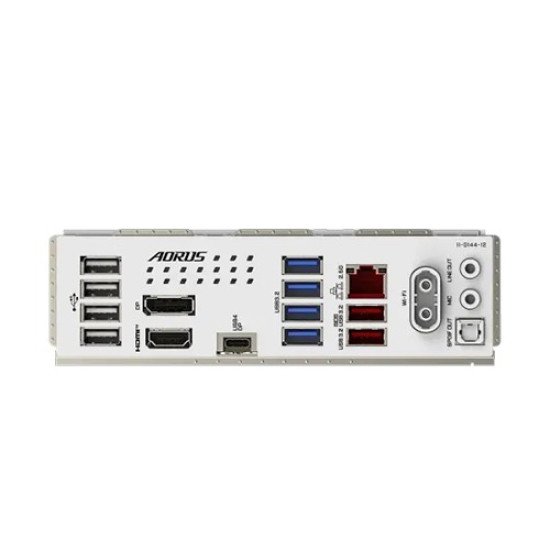

| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 2 x 8-pin ATX 12V power connectors<br> 1 x CPU fan header<br> 1 x CPU fan/water cooling pump header<br> 3 x system fan headers<br> 1 x system fan/water cooling pump header<br> 3 x addressable RGB Gen2 LED strip headers<br> 1 x RGB LED strip header<br> 3 x M.2 Socket 3 connectors<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C® header, with USB 3.2 Gen 2 support<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)<br> 1 x HDMI port (Note)<br> 1 x power button<br> 1 x reset button<br> 1 x Q-Flash Plus button<br> 1 x reset jumper<br> 1 x Clear CMOS jumper<br> <br> Back Panel Connectors:<br> 1 x USB4® USB Type-C® port (DisplayPort (Note))<br> 2 x USB 3.2 Gen 2 Type-A ports (red)<br> 4 x USB 3.2 Gen 1 ports<br> 4 x USB 2.0/1.1 ports<br> 1 x DisplayPort (Note)<br> 1 x HDMI port (Note)<br> 2 x antenna connectors (2T2R)<br> 1 x RJ-45 port<br> 1 x optical S/PDIF Out connector<br> 2 x audio jacks | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| Others Information | ||
| Bundled Software | Norton Internet Security (OEM version)<br> LAN bandwidth management software | |
| Special Features | Support for GIGABYTE Control Center (GCC)<br> Support for Q-Flash<br> Support for Q-Flash Plus<br> Support for Smart Backup | |
| Warranty Information | ||
| Warranty | 3 Year Warranty | |

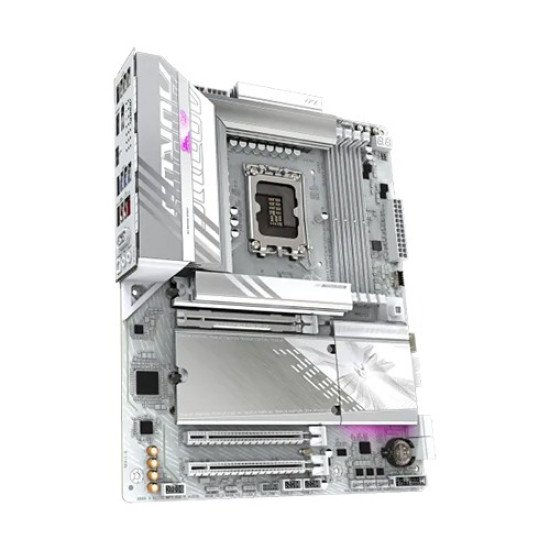

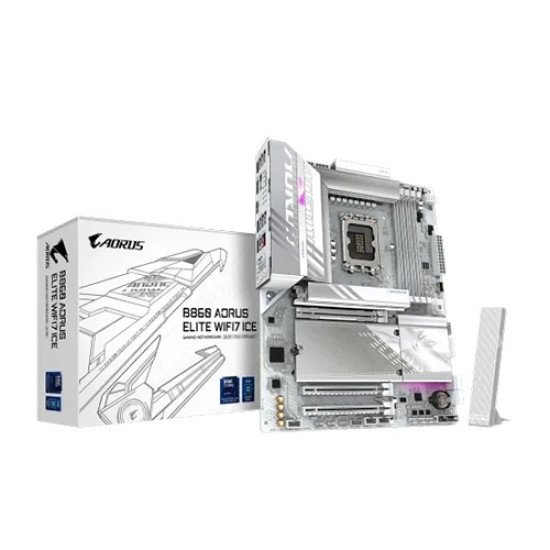

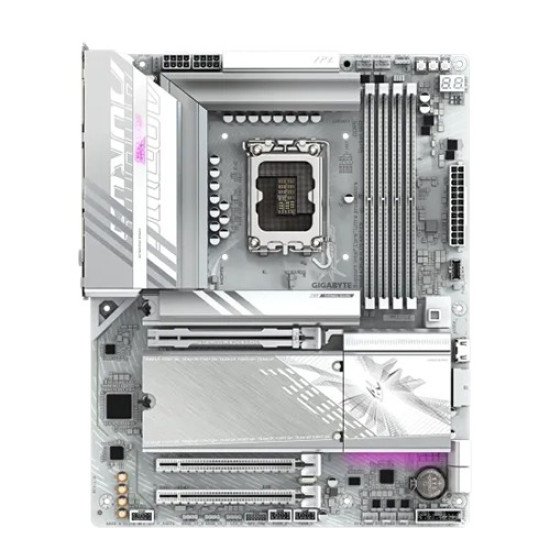

The Gigabyte B860 A ELITE WF7 ICE Motherboard is engineered to unleash the full performance potential of Intel’s latest Core Ultra processors. Built on the robust Intel B860 Express chipset and featuring the LGA1851 socket, this ATX motherboard delivers a powerful foundation for gaming enthusiasts, creators, and high-performance PC builders. Its advanced DDR5 memory support, with speeds reaching up to 9200 MT/s (OC) and capacities up to 256 GB, ensures exceptional multitasking capability and rapid data throughput. For graphics output, the motherboard integrates Intel HD Graphics support and offers outstanding display flexibility with USB4, DisplayPort 2.1, and HDMI 2.1, enabling crisp resolutions of up to 4096×2160 at 60 Hz and support for quad-display setups. Networking is equally impressive, with high-speed Realtek 2.5 GbE LAN, Wi-Fi 7, and Bluetooth 5.4, ensuring low-latency online gaming and seamless wireless connectivity. Expansion options are abundant, featuring a PCIe 5.0 x16 slot for graphics cards or cutting-edge NVMe SSDs, along with two PCIe 4.0 x1 slots for additional devices. Storage flexibility shines with three M.2 slots—including one PCIe 5.0—and four SATA 6Gb/s ports, all supporting RAID 0/1/5/10 configurations for optimized performance or redundancy. The rear I/O panel is equipped with versatile connectivity, including USB4 Type-C, multiple USB 3.2 ports, optical S/PDIF Out, and dual antenna connectors. Additional highlights include advanced cooling support, customizable RGB lighting via Gen2 LED headers, and Gigabyte’s Q-Flash Plus for effortless BIOS updates. With its superior connectivity, powerful hardware compatibility, and future-ready performance, the Gigabyte B860 A ELITE WF7 ICE Motherboard is an ideal choice for building a high-end, reliable, and visually
The latest price of Gigabyte B860 A ELITE WF7 ICE Motherboard in Bangladesh is 36,050৳ You can buy the Gigabyte B860 A ELITE WF7 ICE Motherboard at best price from our Website or visit any of our showrooms.
