| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for:<br> AMD Ryzen 9000 Series Processors<br> AMD Ryzen 8000 Series Processors<br> AMD Ryzen 7000 Series Processors | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio <br>software for audio settings. | |
| Type | DDR5 | |
| Memory Specifications | ||
| Maximum Memory | Up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Slots | 4 DIMMs | |
| Supported Memory | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.<br> Dual channel memory architecture<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:<br> AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode<br> AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode<br> AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode<br> * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.<br> Chipset:<br> - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) | |
| Chipset | ||
| Chipset | AMD B650 | |
| Motherboard | ||
| Supported Storage | Support for GIGABYTE Control Center (GCC)<br> * Available applications in GCC may vary by motherboard model. <br>Supported functions of each application may also vary depending on motherboard specifications.<br> Support for Q-Flash<br> Support for Q-Flash Plus<br> Support for Smart Backup | |
| Graphics | ||
| Graphics | Integrated Graphics Processor with AMD Radeon Graphics support:<br> - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3, and HDR.<br> ** Support for native HDMI 2.1 TMDS compatible ports.<br> - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version.<br> (Graphics specifications may vary depending on CPU support.)<br> Support for up to triple-display at the same time | |
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices<br> * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.<br> RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| Display Port (s) | 2x DisplayPorts | |
| USB (s) | CPU:<br> - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support<br> - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel<br> CPU+USB 2.0 Hub:<br> - 4 x USB 2.0/1.1 ports on the back panel<br> Chipset:<br> - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header<br> - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)<br> - 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| LAN Port (s) | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless Communication module | Realtek Wi-Fi 6E RTL8852CE<br> - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands<br> - BLUETOOTH 5.3<br> - Support for 11ax 160MHz wireless standard<br> (Actual data rate may vary depending on environment and equipment.) | |
| Audio | 3 x Audio jacks | |

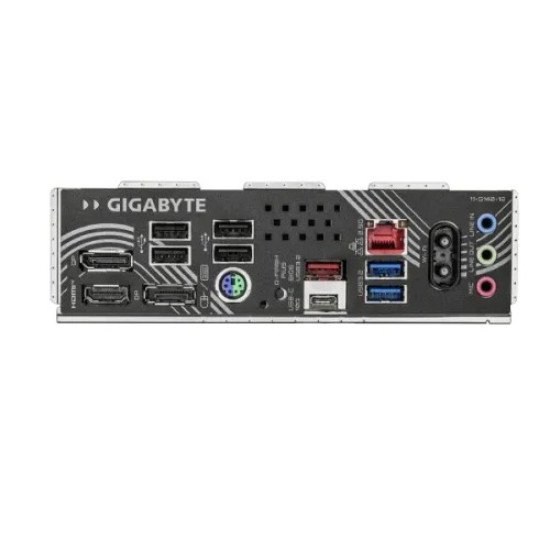

| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 1 x CPU fan/water cooling pump header<br> 1 x system fan header<br> 1 x system fan/water cooling pump header<br> 3 x addressable RGB Gen2 LED strip headers<br> 1 x RGB LED strip header<br> 4 x SATA 6Gb/s connectors<br> 2 x M.2 Socket 3 connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C® header, with USB 3.2 Gen 2 support<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)<br> 1 x reset button<br> 1 x reset jumper<br> 1 x Clear CMOS jumper<br> Back Panel Connectors<br> 1 x HDMI port (Note)<br> 2 x DisplayPorts (Note)<br> 1 x Q-Flash Plus button<br> 1 x PS/2 keyboard/mouse port<br> 1 x USB 3.2 Gen 2 Type-A port (red)<br> 1 x USB Type-C® port, with USB 3.2 Gen 2 support<br> 2 x USB 3.2 Gen 1 ports<br> 4 x USB 2.0/1.1 ports<br> 1 x RJ-45 port<br> 2 x antenna connectors (2T2R)<br> 3 x audio jacks | |
| Others Information | ||
| Bundled Software | Norton Internet Security (OEM version)Content:<br> <br> Write a description in 300 words about MSI PRO B550M-P GEN3 AMD AM4 Micro ATX Motherboard.<br> LAN bandwidth management software | |
| Warranty Information | ||
| Warranty | 3 Years | |
The GIGABYTE B650M EAGLE WIFI6E motherboard is a powerful and versatile Micro ATX board designed for AMD’s latest Ryzen 9000, 8000, and 7000 Series Processors, built on the AMD Socket AM5 platform. Featuring the AMD B650 chipset, it delivers exceptional performance, reliability, and connectivity for gamers, creators, and power users alike. This motherboard supports up to 256 GB of DDR5 memory across four DIMM slots, with speeds reaching DDR5-8200(O.C.), ensuring high-speed data handling and smooth multitasking. For storage, it includes two M.2 connectors (supporting PCIe 5.0 and 4.0 interfaces depending on CPU) and four SATA 6Gb/s ports, with full RAID 0/1/5/10 support for NVMe SSDs—ideal for users who need both speed and redundancy. Expansion options include one PCIe 5.0 x16 slot and one PCIe 3.0 x4 slot, offering flexibility for high-end graphics cards and additional devices. The board’s integrated Realtek Wi-Fi 6E (RTL8852CE) module and 2.5GbE LAN provide blazing-fast wired and wireless networking. For visuals, the B650M EAGLE WIFI6E supports triple-display output through two DisplayPorts (up to 3840x2160@144Hz) and one HDMI 2.1 port (up to 4096x2160@60Hz), powered by AMD Radeon integrated graphics. High-definition audio is delivered by the Realtek audio codec, supporting up to 7.1-channel sound for immersive entertainment. Convenience and aesthetics are enhanced with RGB Fusion 2.0 lighting headers, Q-Flash Plus BIOS update feature, and full compatibility with GIGABYTE Control Center (GCC) for system management. With a durable 3-year warranty and premium build quality, the GIGABYTE B650M EAGLE WIFI6E stands out as a feature-rich, future-ready motherboard for modern AM5 systems.
The latest price of GIGABYTE B850M EAGLE WIFI6E Motherboard in Bangladesh is 26,800৳ You can buy the GIGABYTE B850M EAGLE WIFI6E Motherboard at best price from our Website or visit any of our showrooms.
