| Key Features | ||
| Expansion Slots | 1 x PCI Express x16 slot, integrated in the CPU:<br> AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode<br> AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode<br> AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode | |
| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for:<br> AMD Ryzen 9000 Series Processors/<br> AMD Ryzen 8000 Series Processors/<br> AMD Ryzen 7000 Series Processors<br> | |
| Operating System | Support for Windows 11 64-bit | |
| Others | Storage Interface<br> 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:<br> AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs<br> AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs<br> AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs<br> 1 x M.2 connector on the back of the motherboard (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs<br> 2 x SATA 6Gb/s connectors<br> RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices<br> * RAID 5 is only available on AMD Ryzen 9000 Series Processors.<br> RAID 0 and RAID 1 support for SATA storage devices<br> H/W Monitoring<br> Voltage detection<br> Temperature detection<br> Fan speed detection<br> Water cooling flow rate detection<br> Fan fail warning<br> Fan speed control | |
| Physical Specification | ||
| Chipset | AMD B850 | |
| Form Factor | Mini-ITX Form Factor; 17.0cm x 17.0cm | |
| Input Devices | ||
| External I/O Ports | 1 x Q-Flash Plus button<br> 1 x HDMI port (Note)<br> 2 x antenna connectors (2T2R)<br> 1 x USB4 USB Type-C port (DisplayPort (Note))<br> 1 x USB Type-C port, with USB 3.2 Gen 2 support<br> 2 x USB 3.2 Gen 2 Type-A ports (red)<br> 2 x USB 3.2 Gen 1 ports<br> 2 x USB 2.0/1.1 ports<br> 1 x RJ-45 port<br> 2 x audio jacks<br> (Note) Actual support may vary by CPU.<br> | |
| Motherboard | ||
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0<br> | |
| Memory | Support for DDR5 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) /<br> 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory<br> modules<br> 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory<br> <br> Dual channel memory architecture<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> <br> Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP)<br> memory modules | |
| Graphics | ||
| Graphics | Integrated Graphics Processor with AMD Radeon Graphics support:<br> - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> * Support for HDMI 2.1 version and HDCP 2.3, and HDR.<br> ** Support for native HDMI 2.1 TMDS compatible ports.<br> (Graphics specifications may vary depending on CPU support.) | |
| Connector & Ports | ||
| USB (s) | CPU+ASMedia USB4 controller:<br> - 1 x USB4 USB Type-C port on the back panel<br> CPU:<br> - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support<br> - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel<br> Chipset:<br> - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header<br> - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)<br> - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)<br> | |
| Wireless Communication module | Realtek Wi-Fi 7 RTL8922AE<br> - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands<br> - BLUETOOTH 5.4<br> - Support for 11be 160MHz wireless standard<br> (Actual data rate may vary depending on environment and equipment.) | |
| Audio | Realtek ALC4080 CODEC<br> High Definition Audio<br> 2-channel | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 1 x CPU fan/water cooling pump header<br> 1 x system fan header<br> 2 x addressable RGB Gen2 LED strip headers<br> 1 x RGB LED strip header<br> 2 x M.2 Socket 3 connectors<br> 2 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x speaker header<br> 1 x front panel audio header (routed from the adapter card on the rear panel)<br> 1 x USB Type-C header, with USB 3.2 Gen 2 support<br> 1 x USB 3.2 Gen 1 header<br> 1 x USB 2.0/1.1 header<br> 1 x reset jumper<br> 1 x Clear CMOS jumper<br> 1 x chassis intrusion header | |
| Network & Connectivity | ||
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Ports & Slots | ||
| Features | Support for GIGABYTE Control Center (GCC)<br> Support for Q-Flash<br> Support for Q-Flash Plus<br> Support for Smart Backup<br> | |
| Others Information | ||
| Bundled Software | Norton Internet Security (OEM version)<br> LAN bandwidth management software | |
| Warranty Information | ||
| Warranty | 3-Years | |

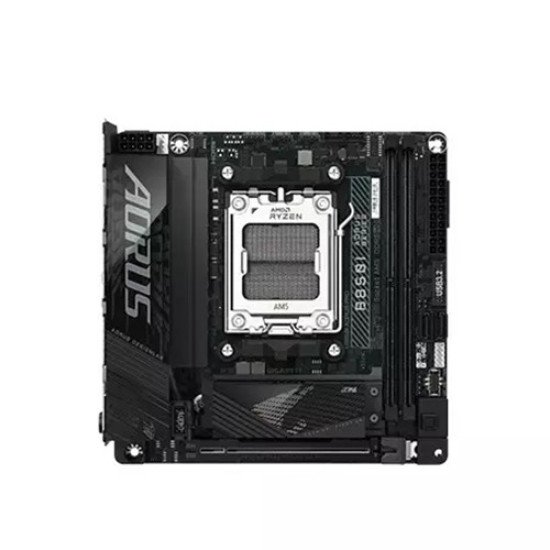

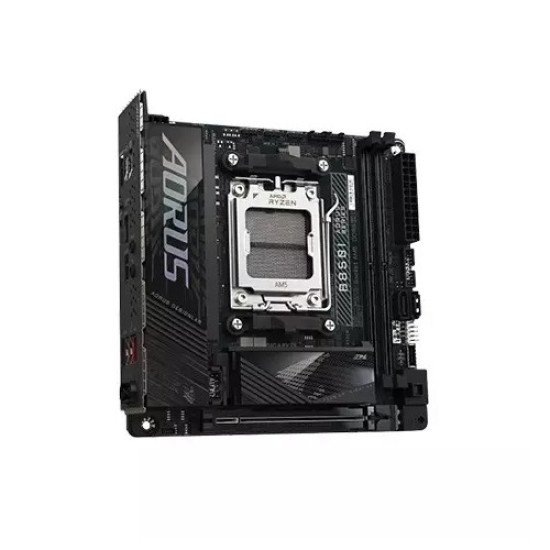

The Gigabyte B850I AORUS PRO motherboard is a compact yet high-performance Mini-ITX board designed for enthusiasts seeking cutting-edge features in a small form factor. Built on the AMD B850 chipset, it supports the latest AMD Ryzen 9000, 8000, and 7000 Series Processors with the AM5 socket, ensuring compatibility with the most advanced CPUs available. Despite its small size, it delivers exceptional performance and versatility for gaming and productivity builds. The board supports DDR5 memory up to an impressive 8400 MHz (OC) and a total capacity of 128 GB, enabling ultra-fast data throughput and system responsiveness. It also features dual M.2 slots—one supporting PCIe 5.0 x4 for next-generation SSDs and another supporting PCIe 4.0 x4—as well as two SATA 6Gb/s connectors, offering flexible and high-speed storage options. For connectivity, the B850I AORUS PRO is equipped with Realtek 2.5GbE LAN and Wi-Fi 7 (RTL8922AE) for lightning-fast wired and wireless networking. Bluetooth 5.4 support ensures seamless connection to peripherals. The rear I/O includes USB4 Type-C, USB 3.2 Gen 2, and multiple USB Type-A ports, providing excellent expansion and device compatibility. Graphics output is handled by an HDMI 2.1 port supporting 4K@60Hz, catering to users who rely on integrated AMD Radeon graphics. Audio quality is enhanced by the Realtek ALC4080 codec, delivering high-definition sound. Additional premium features include GIGABYTE Control Center (GCC) for system management, Q-Flash Plus for BIOS updates without a CPU, and support for Smart Backup. With its sleek black design, robust power delivery, and advanced cooling options, the Gigabyte B850I AORUS PRO is an ideal foundation for compact gaming PCs and performance-driven builds.
The latest price of Gigabyte B850I AORUS PRO Motherboard in Bangladesh is 42,000৳ You can buy the Gigabyte B850I AORUS PRO Motherboard at best price from our Website or visit any of our showrooms.
