| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for:<br> AMD Ryzen 9000 Series Processors/<br> AMD Ryzen 8000 Series Processors/<br> AMD Ryzen 7000 Series Processors<br> (Go to GIGABYTE's website for the latest CPU support list.) | |
| Operating System | Support for Windows 11 64-bit<br> Support for Windows 10 64-bit | |
| Others | H/W Monitoring<br> Voltage detection<br> Temperature detection<br> Fan speed detection<br> Water cooling flow rate detection<br> Fan fail warning<br> Fan speed control<br> * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
| Physical Specification | ||
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Chipset | ||
| Chipset | AMD B840 | |
| Motherboard | ||
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0<br> | |

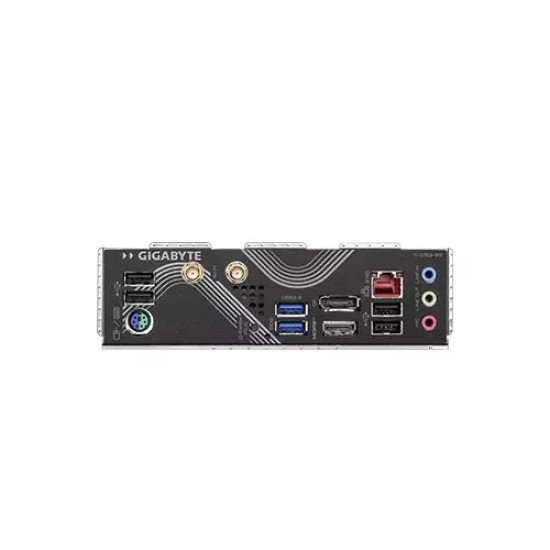

| External I/O Ports | 1 x PS/2 keyboard/mouse port<br> 4 x USB 2.0/1.1 ports<br> 1 x DisplayPort (Note)<br> 1 x HDMI port (Note)<br> 1 x Q-Flash Plus button<br> 2 x USB 3.2 Gen 1 ports<br> 1 x RJ-45 port<br> 2 x SMA antenna connectors (2T2R)<br> 3 x audio jacks<br> (Note) Actual support may vary by CPU. | |
| Internal I/O Ports | 1x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 1 x CPU fan/water cooling pump header<br> 1 x system fan header<br> 1 x system fan/water cooling pump header<br> 2 x addressable RGB Gen2 LED strip headers<br> 1 x RGB LED strip header<br> 2 x M.2 Socket 3 connectors<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C header, with USB 3.2 Gen 1 support<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)<br> 1 x reset jumper<br> 1 x Clear CMOS jumper | |
| Memory | Support for DDR5 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.<br> 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory<br> Dual-channel memory architecture<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for AMD Extended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules. Please refer to "Memory Support List" on GIGABYTE's website for more information.) | |
| Slots | Expansion Slots:<br> 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:<br> AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x16 mode<br> AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode<br> AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode<br> Chipset:<br> - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) | |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:<br> AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs<br> AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs<br> AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs<br> 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 3.0 x2 SSDs<br> 4 x SATA 6Gb/s connectors<br> RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices<br> * RAID 5 is only available on AMD Ryzen 9000 Series Processors.<br> RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| USB Port | CPU:<br> - 2 x USB 3.2 Gen 1 ports on the back panel<br> CPU+USB 2.0 Hub:<br> - 4 x USB 2.0/1.1 ports on the back panel<br> Chipset:<br> - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header<br> - 2 x USB 3.2 Gen 1 ports available through the internal USB headers<br> - 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Graphics | ||
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support:<br> - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz<br> * Support for DisplayPort 1.4 version and HDR.<br> - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> * Support for HDMI 2.1 version, HDCP 2.3, and HDR.<br> ** Support for native HDMI 2.1 TMDS compatible ports.<br> (Graphics specifications may vary depending on CPU support.) | |
| Connectivity | ||
| Wi-Fi | Realtek Wi-Fi 6 RTL8851BE<br> - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands<br> - Support for 11ax 80MHz wireless standard | |
| Connector & Ports | ||
| Audio | Realtek Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| Network & Connectivity | ||
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Others Information | ||
| Bundled Software | Norton Internet Security (OEM version)<br> LAN bandwidth management software | |
| Special Features | Support for GIGABYTE Control Center (GCC)<br> * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on the motherboard specifications.<br> Support for Q-Flash<br> Support for Q-Flash Plus<br> Support for Smart Backup | |
| Warranty Information | ||
| Warranty | 3 Years | |

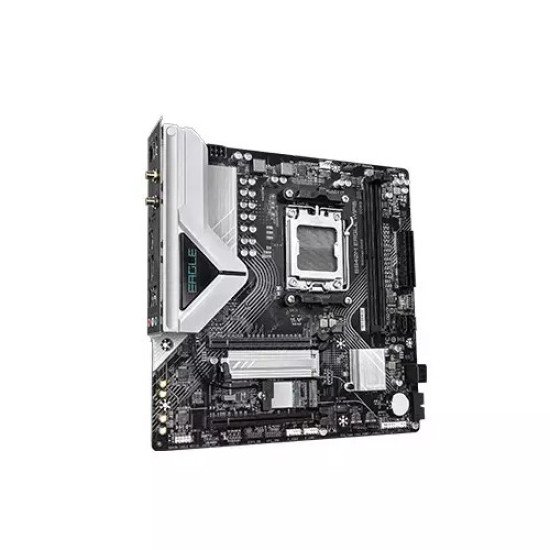

The GIGABYTE B840M EAGLE WIFI6 is a high-performance Micro ATX motherboard designed for AMD’s latest Ryzen processors, delivering an ideal balance of speed, connectivity, and advanced features for gamers, content creators, and PC enthusiasts. Compatible with AMD Socket AM5, it supports Ryzen 7000, 8000, and 9000 series processors, ensuring flexibility and future-proofing for high-performance builds. Powered by the AMD B840 chipset, the motherboard offers stable performance and efficient connectivity options. Memory support is robust, with two DDR5 DIMM slots accommodating up to 128 GB of RAM, supporting speeds up to 7600 MHz (OC) and compatibility with AMD EXPO and XMP profiles. This allows users to achieve extreme memory performance for gaming, multitasking, or creative workloads. Storage options include two M.2 connectors (one PCIe 4.0 integrated in the CPU and one PCIe 3.0 via the chipset) and four SATA 6Gb/s ports, with RAID 0, 1, 5, and 10 support for NVMe drives, providing flexibility for high-speed storage solutions. The motherboard features integrated AMD Radeon graphics support through HDMI 2.1 and DisplayPort 1.4, supporting up to 4K resolution with HDR, ideal for immersive visual experiences. Networking is enhanced with Realtek 2.5GbE LAN and Wi-Fi 6 connectivity, along with Bluetooth 5.3, ensuring fast and stable wired and wireless connections. Expansion options include a PCIe 4.0 x16 slot and a PCIe 3.0 x4 slot, enabling additional graphics or high-speed devices. Multiple internal and external I/O options, including USB Type-C, USB 3.2, and USB 2.0 ports, address connectivity needs, while addressable RGB headers support customizable lighting setups. Additional features include GIGABYTE’s Control Center software for system management, Q-Flash for BIOS updates, comprehensive hardware monitoring, fan and water pump control, and support for Windows 10 and 11 64-bit. Compact yet feature-rich, the B840M EAGLE WIFI6 offers reliability, high-speed performance, and advanced connectivity in a Micro ATX form factor with a 3-year warranty, making it an excellent choice for modern PC builds.
The latest price of GIGABYTE B840M EAGLE WIFI6 Motherboard in Bangladesh is 17,500৳ You can buy the GIGABYTE B840M EAGLE WIFI6 Motherboard at best price from our Website or visit any of our showrooms.
