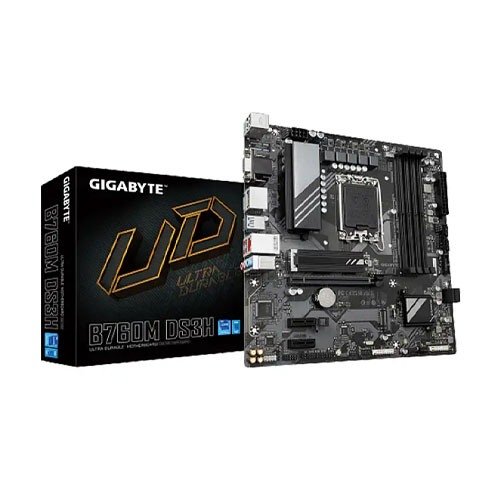

GIGABYTE B760M DS3H DDR5 mATX Motherboard

Basic Information
Supported CPU	LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU
Chipset	Intel B760 Express Chipset
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Expansion Slots
PCI	CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Memory
Type	DDR5
Slots	4
Supported Memory	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	up to 192 GB (48 GB single DIMM capacity) of system memory
Graphics
Graphics	Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz km 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version. Support for up to quad-display at the same time
Connector & Ports
HDMI	1x HDMI
Display Port (s)	2x DisplayPort
D-Sub (s)	1x D-Sub
USB (s)	Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio	3 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty	3 years

The GIGABYTE B760M DS3H DDR5 mATX Motherboard is a powerful and versatile platform designed to maximize the performance of Intel’s 12th and 13th Gen processors. Built on the B760 chipset, this micro-ATX motherboard supports the latest DDR5 memory, providing lightning-fast data transfer speeds and improved energy efficiency. It is engineered to deliver exceptional stability and expandability, making it an ideal choice for gamers, content creators, and PC enthusiasts looking for a reliable system foundation. Equipped with multiple PCIe slots, the B760M DS3H DDR5 allows seamless integration of high-performance graphics cards, storage drives, and other expansion cards. Its advanced thermal design, including strategically placed heatsinks, ensures efficient heat dissipation during intensive workloads, maintaining optimal system performance. The motherboard also features GIGABYTE’s Ultra Durable components, which enhance longevity and reliability under heavy usage. Connectivity options are comprehensive, with high-speed USB 3.2 Gen 2 ports, M.2 slots for NVMe SSDs, and support for modern display interfaces. Integrated networking solutions provide stable wired and wireless connectivity, while audio components deliver crystal-clear sound quality for immersive gaming and media experiences. The sleek design, combined with customizable RGB lighting support, adds a modern aesthetic to any build. Whether assembling a high-speed gaming rig or a productive workstation, the GIGABYTE B760M DS3H DDR5 mATX Motherboard ensures superior performance, robust features, and future-proof technology for years to come.

The GIGABYTE B760M DS3H DDR5 mATX Motherboard combines advanced technology with reliable performance. Key features include:
