| Basic Information | |
| Supported CPU | LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU |
| Chipset | Intel B760 Express Chipset |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| Expansion Slots | |
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
| Memory | |
| Type | DDR5 |
| Slots | 4 |
| Supported Memory | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | up to 192 GB (48 GB single DIMM capacity) of system memory |
| Graphics | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version. Support for up to triple-display at the same time |
| Connector & Ports | |
| HDMI | 1x HDMI |
| Display Port (s) | 2x DisplayPort |
| USB (s) | Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | AMD Wi-Fi 6E RZ608 (MT7921K) (For PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate Intel Wi-Fi 6E AX210 (For PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel Wi-Fi 6E AX211 (For PCB rev. 1.2) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Realtek Wi-Fi 6E RTL8852CE (For PCB rev. 1.3) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate may vary depending on environment and equipment.) |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Audio | 3 x audio jacks |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| Others | |
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Warranty Information | |
| Manufacturing Warranty | 3 years |

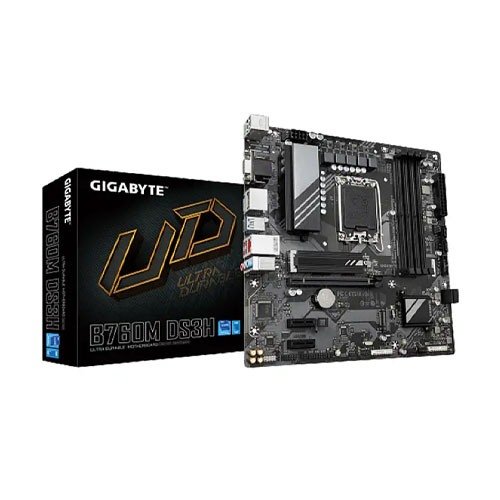

The latest price of GIGABYTE B760M DS3H AX mATX Motherboard in Bangladesh is 19,960৳ You can buy the GIGABYTE B760M DS3H AX mATX Motherboard at best price from our Website or visit any of our showrooms.
