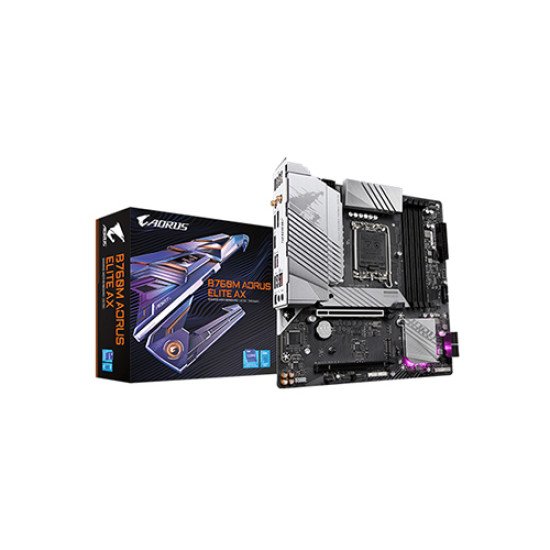

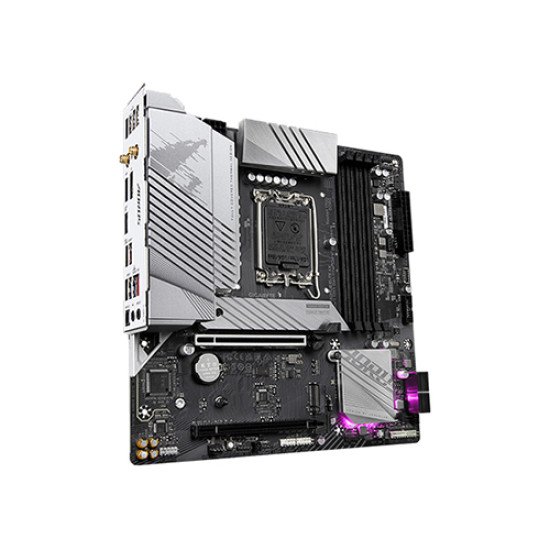

Gigabyte B760M AORUS ELITE AX 13th and 12th Gen Motherboard

Name: Gigabyte B760M AORUS ELITE AX 13th and 12th Gen Motherboard
Brand: Gigabyte
Price: 23500.00 BDT
Availability: OutOfStock

In Stock

Gigabyte B760M AORUS ELITE AX 13th and 12th Gen Motherboard

Stock: In Stock
Brand: Gigabyte
Model: B760M AORUS ELITE AX
MPN: smart

Based on 0 reviews. - Write a review

23,500৳

Ex Tax: 23,500৳

Qty

Buy Now

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Key Features

- Supported CPU 12th 13th Gen Intel Processors LGA1700
- Supported RAM 4x DDR5 Max 128GB 7600OC
- Graphics Output 1x HDMI 1x DisplayPort
- Features Realtek 2.5GbE LAN chip Intel Wi-Fi 6E AX211

View more details

Key Features
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Basic Information
Supported CPU	LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU
Memory Specifications
Type	DDR5
Slots	4 x DDR DIMM
Supported Memory	DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Max. Memory	up to 128 GB (32 GB single DIMM capacity)
Expansion Slots
PCI	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Chipset
Chipset	Intel® B760 Express Chipset
Input Devices
Expansion Slot	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Motherboard
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors
Graphics
Graphics	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3
Connector & Ports
USB (s)	Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 1 x USB 3.2 Gen 1 port on the back panel 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel
Wireless Communication module	WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit

Gigabyte B760M AORUS ELITE AX 13th and 12th Gen Motherboard

The Gigabyte B760M AORUS ELITE AX is a Micro ATX motherboard designed to deliver exceptional performance and versatility, catering to the needs of both gamers and PC enthusiasts. Compact in size with a form factor of 24.4cm x 24.4cm, this motherboard is built around the Intel B760 Express Chipset, supporting the 13th and 12th Generation Intel Core, Pentium Gold, and Celeron processors using the LGA1700 socket. One of the standout features of this motherboard is its memory support, featuring four DDR5 DIMM slots with a maximum capacity of up to 128GB. The DDR5 memory support includes speeds ranging from 4800MHz to an impressive 7600MHz (O.C.), supporting both ECC Un-buffered DIMM and non-ECC Un-buffered DIMM configurations. The dual-channel memory architecture ensures efficient data access and responsiveness, while support for Extreme Memory Profile (XMP) enhances memory overclocking capabilities. In terms of graphics, the motherboard boasts a PCI Express x16 slot supporting PCIe 4.0 and running at x16, along with two additional PCIe 3.0 x16 slots running at x1. The integrated graphics feature an HDMI port supporting a maximum resolution of 4096x2160@60Hz and a DisplayPort supporting 4096x2304@60Hz, providing a rich visual experience for users. The audio experience is powered by the Realtek Audio CODEC, delivering high-definition audio with support for 2/4/5.1/7.1-channel configurations. The motherboard's BIOS is equipped with a 256 Mbit flash and a licensed AMI UEFI BIOS, adhering to industry standards such as PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0. Internally, the motherboard features a well-thought-out design with essential connectors, including M.2 Socket 3 connectors, SATA 6Gb/s connectors, USB headers (Type-C, 3.2 Gen 1, and 2.0/1.1), Thunderbolt™ add-in card connectors, and more. The Realtek 2.5GbE LAN chip ensures high-speed and reliable network connectivity, while the inclusion of Wi-Fi 6 and Bluetooth 5.3 adds wireless communication capabilities.
