| Key Features | ||
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors<br> L3 cache varies with CPU | |
| Memory Specifications | ||
| Type | DDR4 | |
| Slots | 4 x DDR DIMM | |
| Supported Memory | Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules | |
| Max. Memory | up to 128 GB (32 GB single DIMM capacity) | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)<br> * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) | |
| Chipset | ||
| Chipset | Intel® B760 Express Chipset | |
| Motherboard | ||
| Audio | Realtek® Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.<br> Support for S/PDIF Out | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x 4-pin ATX 12V power connector<br> 1 x CPU fan header<br> 1 x CPU fan/water cooling pump header<br> 3 x system fan headers<br> 1 x system fan/water cooling pump header<br> 2 x addressable LED strip headers<br> 2 x RGB LED strip headers<br> 3 x M.2 Socket 3 connectors<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x USB Type-C® header, with USB 3.2 Gen 2 support<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)<br> 1 x reset button<br> 1 x Q-Flash Plus button<br> 1 x reset jumper<br> 1 x Clear CMOS jumper | |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)<br> 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)<br> 4 x SATA 6Gb/s connectors | |
| Graphics | ||
| Graphics | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> * Support for HDMI 2.0 version and HDCP 2.3.<br> 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz<br> * Support for DisplayPort 1.2 version and HDCP 2.3 | |
| Connectivity | ||
| Others | Support for GIGABYTE Control Center (GCC)<br> Support for Q-Flash<br> Support for Q-Flash Pluso | |
| Connector & Ports | ||
| USB (s) | Chipset:<br> 2 x USB Type-C® ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header)<br> 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel<br> 2 x USB 3.2 Gen 1 ports available through the internal USB header<br> Chipset+USB 3.2 Gen 1 Hub:<br> 4 x USB 3.2 Gen 1 ports on the back panel<br> Chipset+2 USB 2.0 Hubs:<br> 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) | |
| Software | ||
| Operating System | Support for Windows 11 64-bit<br> Support for Windows 10 64-bit | |

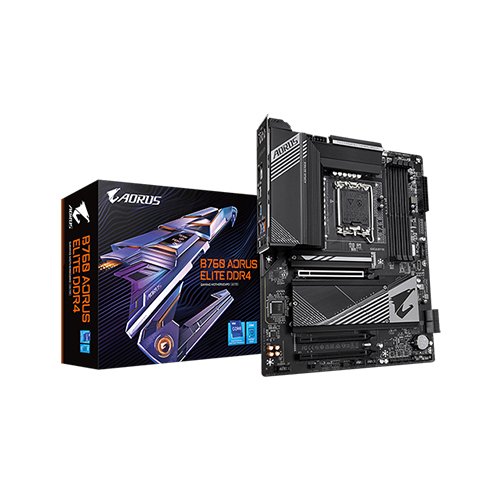

The Gigabyte B760 AORUS ELITE DDR4 Motherboard stands out as a powerhouse in the realm of high-performance ATX motherboards, delivering a robust and feature-rich platform for gamers, content creators, and PC enthusiasts alike. With a form factor of 30.5cm x 24.4cm, this motherboard strikes a balance between versatility and expansive connectivity. Designed for the latest 13th and 12th Generation Intel Core processors utilizing the LGA1700 socket, the B760 AORUS ELITE supports a wide range of DDR4 memory configurations, reaching speeds up to an impressive 5333MHz (O.C.). The four DDR DIMM slots allow for a maximum memory capacity of up to 128GB, enabling seamless multitasking and smooth system performance. The motherboard boasts a comprehensive set of expansion slots, including a PCI Express x16 slot supporting PCIe 4.0 at x16 for optimal graphics card performance. Additional PCIe 3.0 x16 slots running at x1 (PCIEX1_1, PCIEX1_2) provide flexibility for various expansion cards. Graphics capabilities are enhanced with an HDMI port supporting a maximum resolution of 4096x2160@60Hz and a DisplayPort with a maximum resolution of 4096x2304@60Hz, both supporting the latest HDMI 2.0 and DisplayPort 1.2 versions. Audio is powered by the Realtek Audio CODEC, delivering a high-definition 2/4/5.1/7.1-channel audio experience with support for S/PDIF Out. The motherboard features a 256 Mbit flash BIOS with a licensed AMI UEFI BIOS, ensuring stability and compatibility while supporting modern standards such as PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0. Internally, the motherboard offers a wealth of connectivity options, including M.2 Socket 3 connectors, SATA 6Gb/s connectors, USB headers (Type-C, 3.2 Gen 1, and 2.0/1.1), RGB LED strip headers, and more. The Realtek 2.5GbE LAN chip ensures fast and reliable network connectivity. With support for GIGABYTE Control Center (GCC), Q-Flash, and Q-Flash Plus, users have advanced customization and updating options at their fingertips. The motherboard also supports Windows 11 and Windows 10 64-bit operating systems, ensuring compatibility with the latest software. In summary, the Gigabyte B760 AORUS ELITE DDR4 Motherboard combines cutting-edge technology, expandability, and reliability, making it an ideal choice for building high-performance desktop systems. Whether gaming, content creation, or demanding multitasking, this motherboard provides a solid foundation for a feature-rich and powerful computing experience.
The latest price of Gigabyte B760 AORUS ELITE DDR4 Motherboard in Bangladesh is 24,500৳ You can buy the Gigabyte B760 AORUS ELITE DDR4 Motherboard at best price from our Website or visit any of our showrooms.
