| KEY FEATURES |
| Type |
DDR4 |
| Form Factor |
ATX Form Factor; 30.5cm x 24.4cm |
| MEMORY SPECIFICATIONS |
| Supported Memory |
Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.)
/ 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.)
/ 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.)
/ 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.)
/ 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules |
| BASIC INFORMATION |
| Supported CPU |
LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU |
| BIOS |
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| EXPANSION SLOTS |
| PCI |
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) |
| CHIPSET |
| Chipset |
Intel B760 Express Chipset |
| MOTHERBOARD |
| Audio |
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out |
| Graphics |
Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
| Internal I/O Ports |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper |
| USB Port |
1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 port 4 x USB 2.0/1.1 ports |
| CONNECTOR & PORTS |
| LAN Port (s) |
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port |
| Wireless Communication module |
Intel Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| OTHERS INFORMATION |
| Special Features |
2 x SMA antenna connectors (2T2R)
1 x optical S/PDIF Out connector
2 x addressable LED strip headers
2 x RGB LED strip headers
iTE I/O Controller Chip
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus |
| WARRANTY INFORMATION |
| Warranty |
3 years |

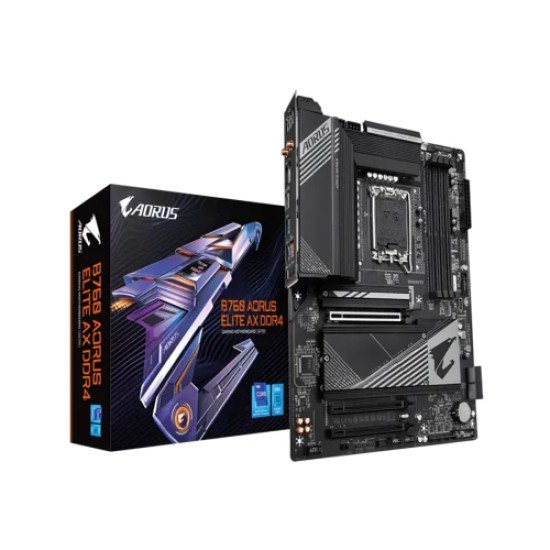

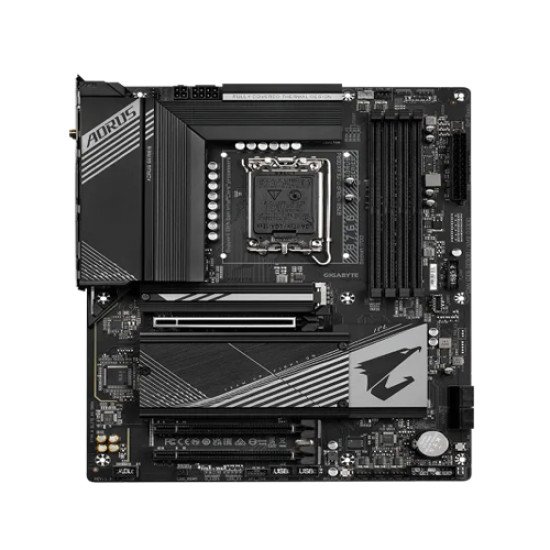

GIGABYTE B760 AORUS ELITE AX DDR4 ATX Motherboard
The GIGABYTE B760 AORUS ELITE AX DDR4 ATX Motherboard is a high-performance motherboard designed for gaming enthusiasts and PC builders seeking a reliable foundation for their systems. Boasting an ATX form factor with dimensions of 30.5cm x 24.4cm, this motherboard supports the latest DDR4 memory technology, offering a wide range of memory speeds up to 5333MHz (O.C.). The motherboard features a robust LGA1700 socket, providing support for the 13th and 12th Generation Intel Core, Pentium Gold, and Celeron Processors. The BIOS is equipped with a 256 Mbit flash and licensed AMI UEFI BIOS, ensuring stable performance and compatibility. It adheres to industry standards like PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0. In terms of expansion slots, the GIGABYTE B760 AORUS ELITE AX offers 1 x PCI Express x16 slot supporting PCIe 4.0, running at x16, and 2 x PCI Express x16 slots supporting PCIe 3.0, running at x1. The Intel B760 Express Chipset forms the core of this motherboard, providing a solid foundation for seamless connectivity and data transfer. Audio is powered by the Realtek Audio CODEC, delivering high-definition audio with support for 2/4/5.1/7.1-channel configurations and S/PDIF Out. Graphics capabilities include an Integrated Graphics Processor-Intel HD Graphics with HDMI and DisplayPort outputs supporting resolutions up to 4096x2160@60Hz and 4096x2304@60Hz, respectively. The internal I/O ports are thoughtfully designed, featuring M.2 Socket 3 connectors, SATA 6Gb/s connectors, USB headers (Type-C, 3.2 Gen 1, and 2.0/1.1), and various fan headers for efficient cooling. Connectivity options are extensive, with USB Type-C, USB 3.2 Gen 2, and Wi-Fi 6E capabilities. The motherboard also includes LAN support with a Realtek 2.5GbE LAN chip and Intel Wi-Fi 6E AX211 WIFI module, ensuring high-speed and reliable network connectivity. Noteworthy features include addressable and RGB LED strip headers, SMA antenna connectors, and comprehensive system monitoring capabilities facilitated by the iTE I/O Controller Chip. With support for GIGABYTE Control Center, Q-Flash, and Q-Flash Plus, this motherboard offers advanced customization and updating options. Backed by a 3-year warranty, the GIGABYTE B760 AORUS ELITE AX DDR4 ATX Motherboard combines cutting-edge technology with reliability, making it an ideal choice for gaming and high-performance computing enthusiasts.
