Specification
| Basic Information |
| Supported CPU |
AMD Socket AM5, support for:
AMD Ryzen™ 8000 & 7000 Series Processors |
| Chipset |
AMD B650 |
| BIOS |
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor |
Micro ATX Form Factor; 23.0cm x 22.5cm |
| Audio |
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel |
| Expansion Slots |
| PCI |
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Memory |
| Type |
DDR5 |
| Slots |
2 x DIMM |
| Supported Memory |
Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Maximum Memory |
up to 96 GB (48 GB single DIMM capacity) |
| Graphics |
| Graphics |
Integrated Graphics Processor:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz |
| Connector & Ports |
| HDMI |
1 x HDMI |
| Display Port (s) |
1 x DisplayPort |
| D-Sub (s) |
1 x D-Sub port |
| USB (s) |
CPU:
- 2 x USB 3.2 Gen 1 ports on the back panel
- 1 x USB 2.0/1.1 port on the back panel
Chipset:
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers) |
| LAN Port (s) |
Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Supported Storage |
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)
Chipset:
- 4 x SATA 6Gb/s connectors |
| RAID |
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Audio |
3 x audio jacks |
| Internal I/O Ports |
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x Clear CMOS jumper
Back Panel Connectors
4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x Q-Flash Plus button
2 x USB 3.2 Gen 1 ports
1 x RJ-45 port |
| TPM (Trusted Platform Module ) |
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| Others |
| Special Features |
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus |
| Bundled Software |
Norton Internet Security (OEM version)
LAN bandwidth management software |
| Warranty Information |
| Manufacturing Warranty |
3 Years |

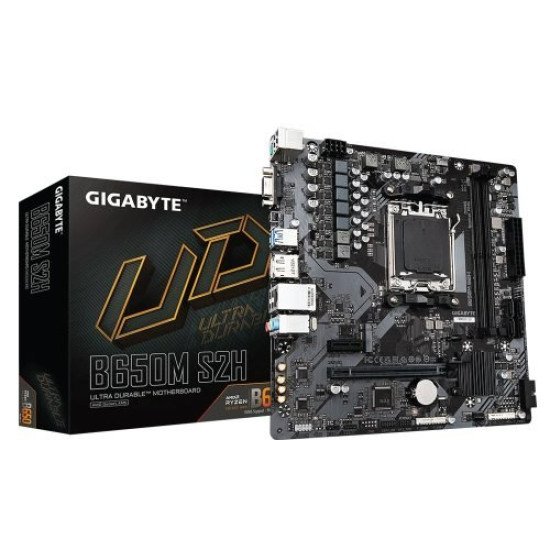

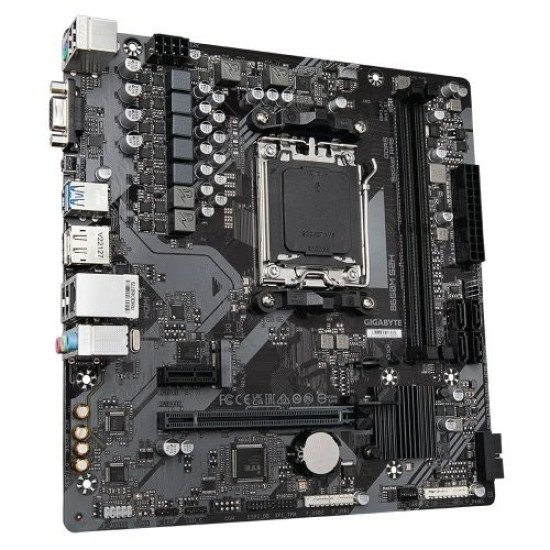

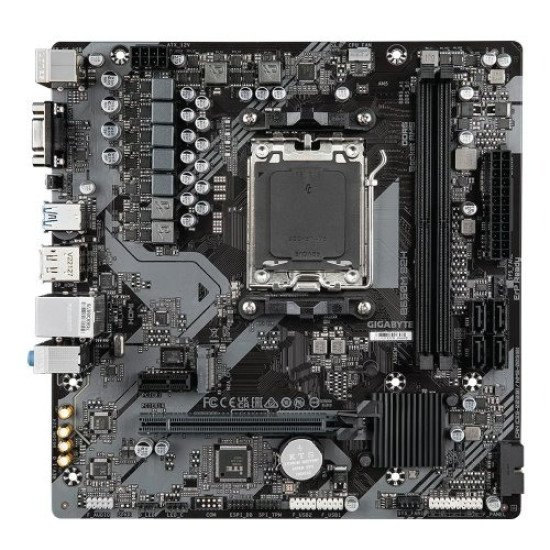

GIGABYTE B650M S2H AM5 Micro-ATX Motherboard
The GIGABYTE B650M S2H AM5 Micro-ATX Motherboard is a high-performance motherboard designed to deliver reliability, speed, and versatility for modern computing needs. Built for AMD Ryzen 8000 and 7000 Series processors, this motherboard supports the latest AM5 socket CPUs, allowing users to experience exceptional performance in gaming, content creation, and everyday computing tasks. Its Micro-ATX form factor ensures compatibility with a wide range of PC cases, making it an ideal choice for both compact and standard builds. Memory performance is a strong focus on the B650M S2H, with support for dual-channel DDR5 memory at speeds up to 6400(OC) MHz, and a maximum capacity of 96GB. This ensures seamless multitasking, faster data processing, and smooth operation even under demanding workloads. Whether you are running multiple applications or heavy productivity software, this motherboard provides the memory bandwidth needed for peak efficiency. For visual performance, the B650M S2H features multiple display outputs including DisplayPort, HDMI, and D-Sub, offering flexibility for multi-monitor setups and supporting high-definition displays. Gamers and professionals alike can enjoy crisp graphics and reliable video performance without requiring a dedicated GPU, depending on the CPU used. Networking is powered by a Realtek Gigabit Ethernet (GbE) LAN chip, providing stable and fast wired connectivity for online gaming, streaming, and large file transfers. The motherboard also includes essential features and ports for connectivity, expansion, and system customization, making it a versatile platform for both beginners and experienced PC builders. With its robust build quality, support for next-generation CPUs, and advanced memory and display options, the GIGABYTE B650M S2H AM5 Micro-ATX Motherboard offers an excellent foundation for building a powerful and reliable PC that meets the demands of modern computing. It strikes the perfect balance between performance, connectivity, and affordability, making it an ideal choice for any PC enthusiast.
Features of GIGABYTE B650M S2H AM5 Micro-ATX Motherboard
- Supports AMD Ryzen 8000 & 7000 Series processors with AM5 socket.
- Micro-ATX form factor suitable for compact and standard PC builds.
- Dual DDR5 memory slots supporting up to 6400(OC) MHz and 96GB maximum.
- Multiple graphics outputs: 1 x DisplayPort, 1 x HDMI, 1 x D-Sub for flexible display options.
- Integrated Realtek Gigabit Ethernet (GbE) LAN for stable wired network connectivity.
- Supports high-speed memory overclocking for enhanced performance.
- Robust build quality designed for durable and reliable operation.
- Ideal for gaming, content creation, and multitasking applications.
- Compact layout with efficient component placement for easy installation.
- Compatible with modern peripherals and expansion cards for system customization.
