Specification
| Basic Information |
| Supported CPU |
AMD Socket AM5, support for: AMD Ryzen 8000 & 7000 Series Processors |
| Chipset |
AMD B650 |
| BIOS |
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor |
Micro ATX Form Factor; 24.4cm x 24.4cm |
| Audio |
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel |
| Expansion Slots |
| PCI |
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Memory |
| Type |
DDR5 |
| Slots |
4 DIMMs |
| Supported Memory |
Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Maximum Memory |
192 GB |
| Graphics |
| Graphics |
1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports. |

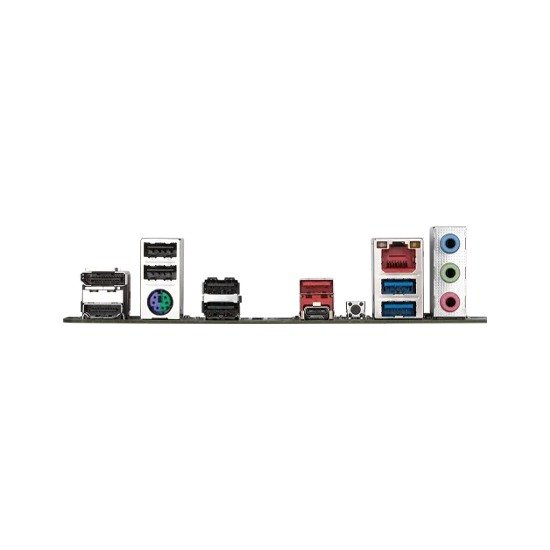

| Connector & Ports |
| HDMI |
1x HDMI |
| Display Port (s) |
1 x DisplayPorts |
| USB (s) |
CPU:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 2.0/1.1 ports on the back panel
Chipset:
1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| LAN Port (s) |
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Supported Storage |
CPU:
1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support)
Chipset:
4 x SATA 6Gb/s connectors |
| RAID |
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Audio |
3 x Audio jacks |
| Internal I/O Ports |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x reset jumper
1 x Clear CMOS jumper |
| TPM (Trusted Platform Module ) |
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| Others |
| Special Features |
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus |
| Bundled Software |
Norton Internet Security (OEM version)
LAN bandwidth management software |
| Warranty Information |
|
Manufacturing Warranty
|
3 Years |

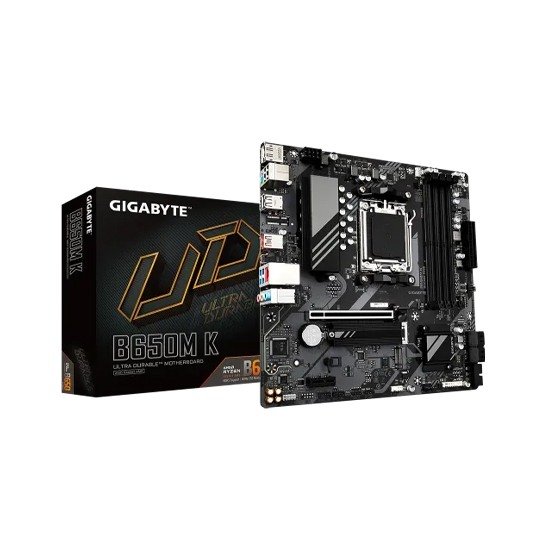

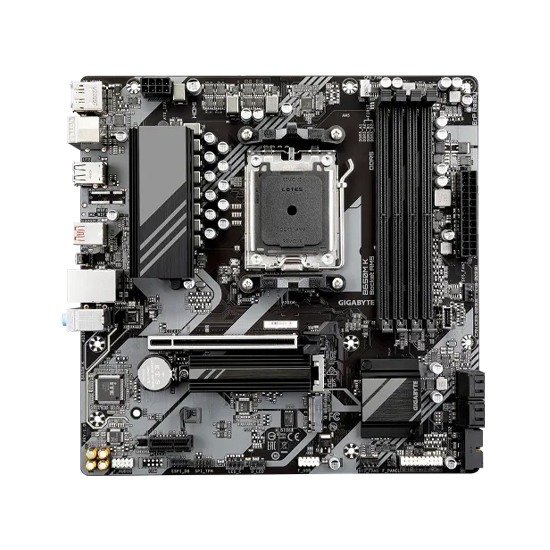

GIGABYTE B650M K AMD AM5 Micro-ATX Motherboard
The GIGABYTE B650M K AMD AM5 Micro-ATX Motherboard is a high-performance, feature-rich motherboard designed to meet the demands of modern PC enthusiasts and professional users. Built on the advanced AMD AM5 platform, this motherboard offers seamless compatibility with AMD Ryzen 7000 and 8000 Series processors, delivering exceptional computing power for gaming, content creation, and multitasking applications. Its micro-ATX form factor ensures a compact yet efficient design, making it ideal for both small and mid-sized builds without compromising on performance or expandability. Equipped with support for 4 DDR5 RAM slots, the B650M K allows users to install up to 192GB of high-speed memory, with overclocking capabilities reaching 8000 MHz, providing faster data access, smoother multitasking, and an overall responsive system performance. For graphics, the motherboard features DisplayPort and HDMI outputs, enabling crisp visuals and support for multiple monitors, perfect for gaming setups, creative workstations, or productivity-focused environments. Networking is powered by a 2.5GbE LAN port, delivering high-speed, low-latency connectivity for online gaming, streaming, and file transfers. The motherboard also offers robust power delivery and efficient cooling solutions to ensure stable performance under heavy workloads, while GIGABYTE’s Ultra Durable components guarantee long-term reliability. The B650M K supports modern storage and expansion options, allowing users to take full advantage of NVMe SSDs and high-speed peripherals for faster boot times and enhanced data transfer. Its user-friendly BIOS and optimized software utilities provide intuitive control over system performance, overclocking, and connectivity options. Whether you are building a high-end gaming rig, a content creation workstation, or a reliable productivity PC, the GIGABYTE B650M K AMD AM5 Micro-ATX Motherboard offers the perfect blend of performance, stability, and expandability, making it an excellent choice for enthusiasts seeking a powerful and versatile motherboard for the latest AMD Ryzen processors.
Features of GIGABYTE B650M K AMD AM5 Micro-ATX Motherboard
- Supports Latest AMD CPUs: Compatible with Ryzen 7000 and 8000 Series processors for Socket AM5.
- High-Speed Memory Support: 4x DDR5 RAM slots, up to 192GB, with overclocking up to 8000 MHz.
- Multiple Graphics Outputs: 1x DisplayPort and 1x HDMI for flexible monitor setups.
- Fast Networking: Integrated 2.5GbE LAN for high-speed, low-latency internet connectivity.
- Compact Micro-ATX Form Factor: Fits smaller cases while maintaining performance and expandability.
- Reliable Power Delivery: Ensures stable CPU performance during heavy workloads or overclocking.
- Durable Components: Built with GIGABYTE Ultra Durable components for long-term reliability.
- Storage and Expansion Ready: Supports NVMe SSDs and multiple peripherals for faster performance.
- User-Friendly BIOS: Easy-to-navigate BIOS with options for performance tuning and system monitoring.
- Efficient Cooling Support: Designed to maintain optimal temperatures during intense usage.
