| Basic Information | ||
| Supported CPU | AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors | |
| Chipset | AMD B650 | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.0cm x 22.5cm | |
| Audio | Realtek Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| Type | DDR5 | |
| Memory Specifications | ||
| Slots | 4 DIMMs | |
| Supported Memory | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules<br> Dual channel memory architecture<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:<br> - AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x16 mode<br> - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode<br> - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode<br> * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.<br> Chipset:<br> - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 | |
| Motherboard | ||
| Supported Storage | 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:<br> - AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x4/x2 SSDs<br> - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs<br> - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs<br> 4 x SATA 6Gb/s connectors | |
| Graphics | ||
| Graphics | Onboard Graphics<br> Integrated Graphics Processor with AMD Radeon™ Graphics support:<br> - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz<br> - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> * Support for HDMI 2.1 version and HDCP 2.3.<br> ** Support for native HDMI 2.1 TMDS compatible ports.<br> (Graphics specifications may vary depending on CPU support.) | |
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices<br> RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| USB (s) | CPU:<br> - 2 x USB 3.2 Gen 1 ports on the back panel<br> - 1 x USB 2.0/1.1 port on the back panel<br> Chipset:<br> - 2 x USB 3.2 Gen 1 ports available through the internal USB header<br> - 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through<br> the internal USB header)<br> Chipset+USB 2.0 Hub:<br> - 2 x USB 2.0/1.1 ports available through the internal USB header<br> | |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless Communication module | Wireless Communication module<br> AzureWave Wi-Fi AW-CB304NF (Realtek RTL8821CE)<br> - WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band<br> - BLUETOOTH 4.2<br> - Support for 11ac wireless standard<br> | |
| Audio | 3 x Audio jacks | |
| Internal I/O Ports | Internal I/O Connectors<br> 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connectorV 1 x CPU fan header<br> 2 x system fan header<br> 2 x addressable LED strip headers<br> 1 x RGB LED strip header<br> 1 x M.2 Socket 3 connector<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)<br> 1 x Clear CMOS jumper | |
| D-Sub (s) | 1 x D-Sub | |
| Others Information | ||
| Bundled Software | Norton Internet Security (OEM version)<br> LAN bandwidth management software | |

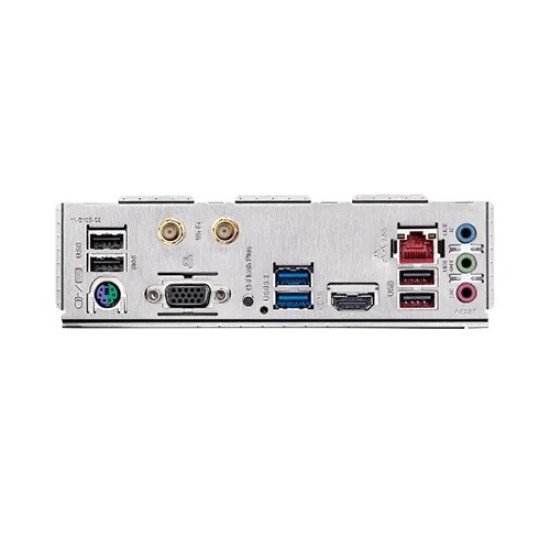

| Special Features | Support for GIGABYTE Control Center (GCC)<br> * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.<br> Support for Q-Flash<br> Support for Q-Flash Plus<br> <br> Back Panel Connectors<br> 4 x USB 2.0/1.1 ports<br> 1 x PS/2 keyboard/mouse port<br> 1 x D-Sub port<br> 1 x Q-Flash Plus button<br> 2 x USB 3.2 Gen 1 ports<br> 1 x HDMI port<br> 1 x RJ-45 port<br> 3 x audio jacks | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years Warranty | |

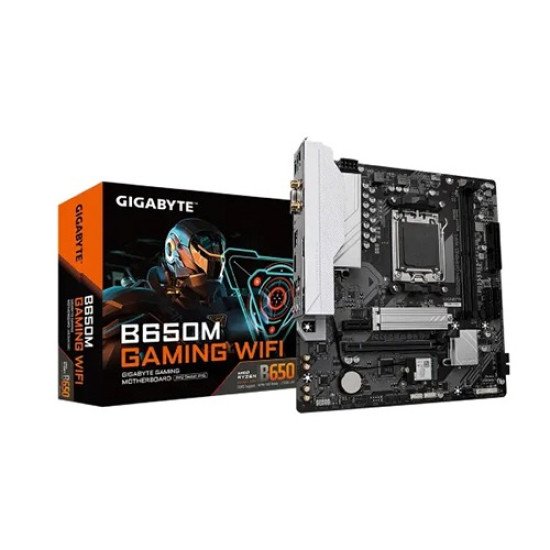

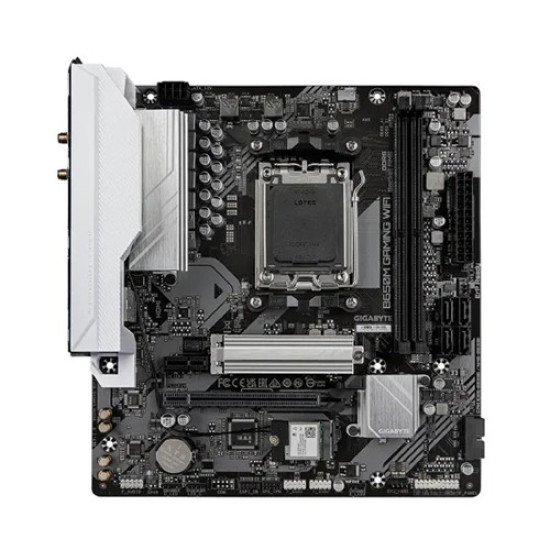

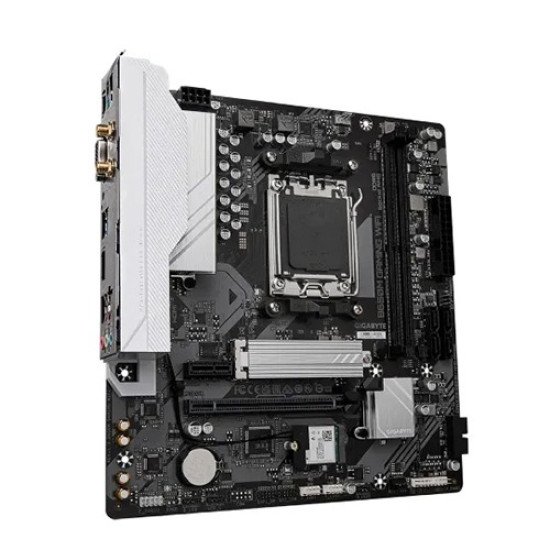

The GIgABYTE B650M GAMING WIFI Motherboard is a powerful and feature-rich Micro ATX board designed to deliver outstanding performance and connectivity for AMD’s latest Ryzen processors. Supporting AMD Ryzen 7000, 8000, and 9000 Series CPUs, it is built on the robust AMD B650 chipset, offering a solid foundation for gaming, productivity, and multitasking. Equipped with four DDR5 DIMM slots, the motherboard supports up to 128GB of high-speed memory with frequencies up to 6400MHz (OC), ensuring smooth performance for demanding applications. It features a PCIe 4.0 x16 slot for graphics cards, guaranteeing fast data transfer and optimal gaming performance, while an M.2 slot with PCIe 4.0 x4 support provides lightning-fast NVMe SSD storage. Additionally, there are four SATA 6Gb/s ports with support for RAID 0, 1, and 10, offering flexible and reliable storage options. The board integrates Realtek 2.5GbE LAN for high-speed wired networking and a built-in Wi-Fi module (AzureWave AW-CB304NF) supporting Wi-Fi 5 (802.11ac) and Bluetooth 4.2, providing seamless wireless connectivity. For audio, it features a Realtek HD Audio Codec supporting up to 7.1-channel surround sound, delivering immersive audio for gaming and entertainment. Connectivity is extensive, with USB 3.2 Gen 1 and USB 2.0 ports, HDMI 2.1 and D-Sub display outputs, and comprehensive internal headers for system customization, including ARGB/RGB lighting controls. The motherboard also supports GIGABYTE Control Center (GCC) for easy system management and Q-Flash Plus for effortless BIOS updates without installing a CPU. With its durable build, smart thermal design, and modern features, the GIGABYTE B650M GAMING WIFI is an excellent choice for gamers and PC builders seeking performance, stability, and expandability in a compact Micro ATX form factor.
For professionals building a high-performance PC, choosing the right motherboard is essential. Explore the Best Gigabyte Motherboard for Professionals to enjoy stability, speed, and reliability. Browse our complete motherboard category to find the perfect fit for your system. Shop confidently with Tech Velley, your trusted source for genuine and high-quality PC components.
The latest price of GIGABYTE B650M GAMING WIFI Motherboard in Bangladesh is 17,300৳ You can buy the GIGABYTE B650M GAMING WIFI Motherboard at best price from our Website or visit any of our showrooms.
