| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for:<br> AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors | |
| Chipset | AMD B650 Chipset | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek Audio CODEC<br> ALC897V High Definition Audio<br> 2/4/5.1/7.1-channel | |
| Type | DDR5 | |
| Memory Specifications | ||
| Slots | 4 x DIMM | |
| Supported Memory | Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules<br> (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:<br> - AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x16 mode<br> - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode<br> - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode<br> * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.<br> 2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1<br> * The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen 8000 Series-Phoenix 2 processor is used.<br> 1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1 | |
| Motherboard | ||
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:<br> - AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 5.0 x4/x2 SSDs<br> - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs<br> - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs<br> 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:<br> - AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x2 SSDs<br> - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs<br> - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs<br> 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)<br> 4 x SATA 6Gb/s connectors | |
| Graphics | ||
| Graphics | Integrated Graphics Processor:<br> - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz<br> * Support for DisplayPort 1.4 version.<br> - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> * Support for HDMI 2.1 version and HDCP 2.3.<br> ** Support for native HDMI 2.1 TMDS compatible ports.<br> (Graphics specifications may vary depending on CPU support.)<br> | |
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices<br> RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| Display Port (s) | 1 x DisplayPort | |

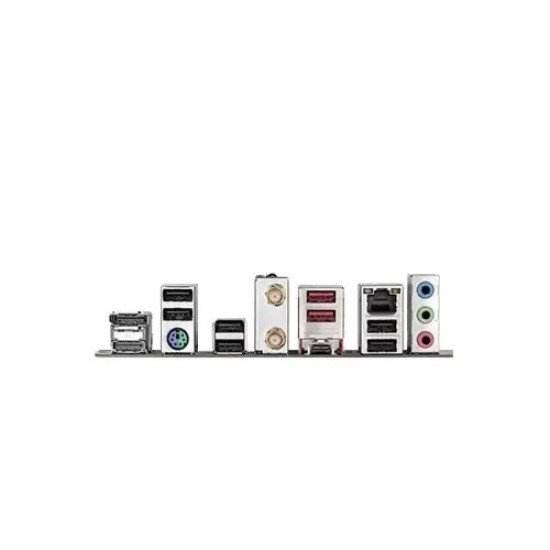

| USB (s) | CPU: - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel<br> Chipset:<br> - 2 x USB 3.2 Gen 1 ports available through the internal USB header<br> - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header<br> - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)<br> Chipset+USB 2.0 Hub:<br> - 4 x USB 2.0/1.1 ports available through the internal USB headers<br> | |
| LAN Port (s) | Realtek RTL8111H GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) | |
| Wireless Communication module | Realtek RTL8851 WIFI 6 module<br> - WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band<br> - Support for 11ac wireless standard<br> BT 5.0 | |
| Audio | 3 x audio jacks | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 1 x CPU fan/water cooling pump header<br> 2 x system fan headers<br> 1 x system fan/water cooling pump header<br> 1 x addressable RGB Gen2 LED strip header<br> 1 x RGB LED strip header<br> 3 x M.2 Socket 3 connectors<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C header, with USB 3.2 Gen 1 support<br> 1 x USB 3.2 Gen 1 header<br> 3 x USB 2.0/1.1 headers<br> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)<br> 1 x Q-Flash Plus button<br> 1 x Clear CMOS jumper | |
| Others Information | ||
| Bundled Software | Norton Internet Security (OEM version)<br> LAN bandwidth management software | |
| Special Features | Support for GIGABYTE Control Center (GCC)<br> * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.<br> Support for Windows 11 64-bit<br> Support for Windows 10 64-bit<br> Support for Q-Flash<br> Support for Q-Flash Plus<br> I/O Controller: iTE I/O Controller Chip<br> H/W Monitoring<br> Voltage detection<br> Temperature detection<br> Fan speed detection<br> Water cooling flow rate detection<br> Fan fail warning<br> Fan speed control<br> * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install | |
| Warranty Information | ||
| Warranty | 3 Years | |

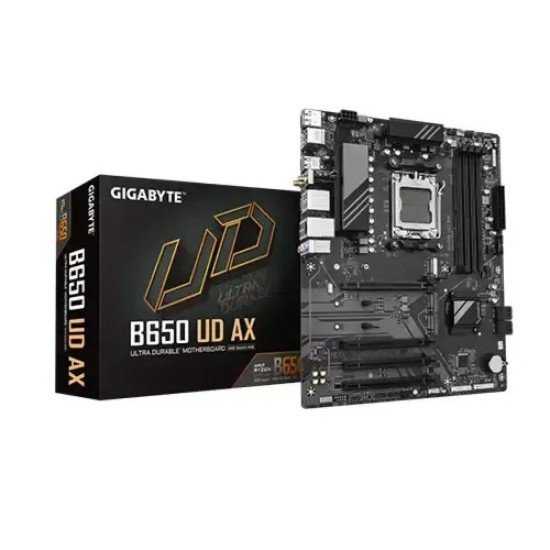

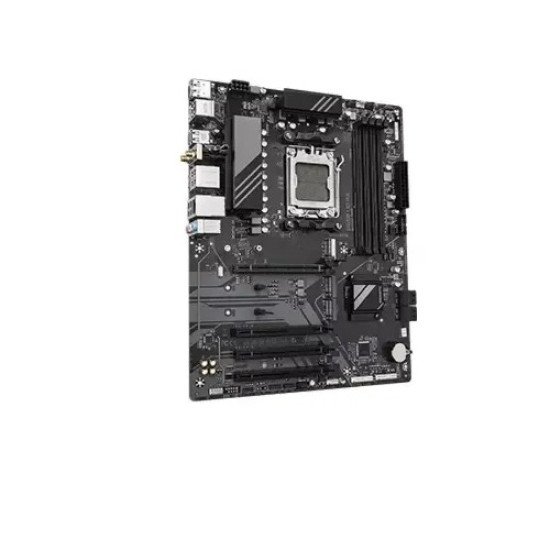

The GIGABYTE B650 UD AX is a high-performance ATX motherboard designed to support the latest AMD Ryzen processors, including the Ryzen 7000, 8000, and 9000 series, making it a versatile choice for gamers, content creators, and PC enthusiasts. Built around the AMD B650 chipset, this motherboard delivers robust performance, extensive connectivity, and advanced features for modern computing needs. Featuring support for DDR5 memory, the B650 UD AX accommodates up to 256 GB of system memory across four DIMM slots, with speeds up to 8000 MHz (OC), ensuring fast and reliable performance for multitasking, gaming, and professional workloads. The motherboard also supports AMD EXPO and XMP memory profiles, allowing users to maximize memory performance easily. Storage options are extensive, with three M.2 connectors and four SATA 6Gb/s ports. The M.2 slots support PCIe 5.0 and 4.0 SSDs depending on the processor, enabling ultra-fast storage performance and flexible RAID configurations, including RAID 0, 1, and 10 for both NVMe and SATA drives. Graphics connectivity is handled via integrated HDMI 2.1 and DisplayPort 1.4 outputs, supporting high resolutions up to 4096x2160@60Hz and 3840x2160@144Hz, respectively. For dedicated GPU setups, the motherboard includes multiple PCIe x16 and x1 slots with varying bandwidths based on the CPU installed, providing flexibility for gaming or professional graphics cards. The B650 UD AX also excels in connectivity, featuring USB 3.2 Gen 2 and Gen 1 Type-A and Type-C ports, Wi-Fi 6, Bluetooth 5.0, and a 1GbE LAN port for fast and reliable networking. Audio is powered by the Realtek ALC897 codec, delivering high-definition multi-channel sound. Additional features include addressable RGB headers, Q-Flash Plus for easy BIOS updates, hardware monitoring capabilities, TPM support for enhanced security, and full compatibility with Windows 10 and 11. Backed by a 3-year warranty, the GIGABYTE B650 UD AX motherboard is an ideal foundation for building a modern, high-performance PC with flexibility and reliability at its core.
The latest price of GIGABYTE B650 UD AX Motherboard in Bangladesh is 21,700৳ You can buy the GIGABYTE B650 UD AX Motherboard at best price from our Website or visit any of our showrooms.
