| Basic Information | ||
| Display | 1 x DisplayPorts | |
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 8000 & 7000 Series Processors | |
| Chipset | AMD B650 | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| Type | DDR5 | |
| Memory Specifications | ||
| Slots | 4 DIMMs | |
| Supported Memory | 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules<br> Dual channel memory architecture<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module<br> (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) | |
| Expansion Slots | ||
| PCI | Expansion Slots<br> 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:<br> - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode<br> - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode<br> - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode<br> * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.<br> Chipset:<br> - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) | |
| Motherboard | ||
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs<br> - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs<br> - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs<br> <br> 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:<br> - AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs<br> - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs<br> - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs<br> <br> 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs<br> 4 x SATA 6Gb/s connectors | |
| Graphics | ||
| Graphics | Integrated Graphics Processor:<br> 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz<br> * Support for DisplayPort 1.4 version and HDR.<br> 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> * Support for HDMI 2.1 version and HDCP 2.3.<br> ** Support native HDMI 2.1 TMDS compatible ports. | |
| Connectivity | ||
| HDMI | 1x HDMI | |
| Connector & Ports | ||
| USB (s) | CPU:<br> - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support<br> - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel<br> CPU + USB 2.0 Hub:<br> - 4 x USB 2.0/1.1 ports on the back panel<br> Chipset:<br> - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header<br> - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)<br> - 4 x USB 2.0/1.1 ports available through the internal USB headers<br> Chipset+USB 3.2 Gen 1 Hub:<br> - 4 x USB 3.2 Gen 1 ports on the back panel | |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless Communication module | Realtek Wi-Fi 6E RTL8852CE<br> - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands<br> - BLUETOOTH 5.3<br> - Support for 11ax 160MHz wireless<br> (Actual data rate may vary depending on environment and equipment.) | |

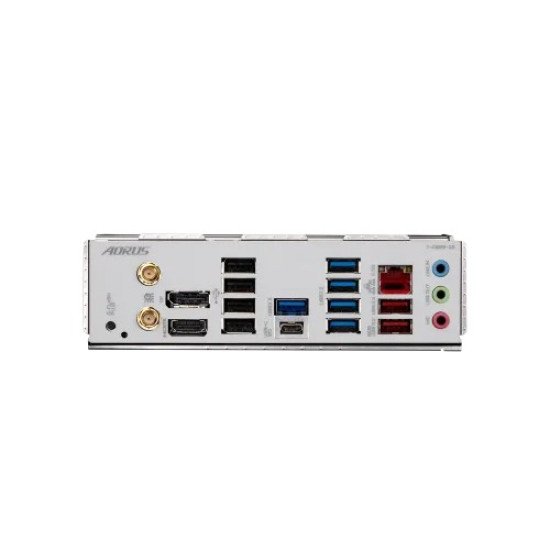

| Internal I/O Ports | Internal I/O Connectors<br> 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x 4-pin ATX 12V power connector<br> 1 x CPU fan header<br> 1 x CPU fan/water cooling pump header<br> 3 x system fan headers<br> 1 x system fan/water cooling pump header<br> 3 x addressable RGB Gen2 LED strip headers<br> 1 x RGB LED strip header<br> 3 x M.2 Socket 3 connectors<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C header, with USB 3.2 Gen 2x2 support<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x reset button<br> 1 x reset jumper<br> 1 x Clear CMOS jumper<br> Back Panel Connectors<br> 1 x Q-Flash Plus button<br> 2 x SMA antenna connectors (2T2R)jk<br> 1 x DisplayPort<br> 1 x HDMI port<br> 1 x USB Type-C port, with USB 3.2 Gen 2 support<br> 2 x USB 3.2 Gen 2 Type-A ports (red)<br> 5 x USB 3.2 Gen 1 ports<br> 4 x USB 2.0/1.1 ports<br> 1 x RJ-45 port<br> 3 x audio jacks | |
| Others Information | ||
| Bundled Software | Norton Internet Security (OEM version)<br> LAN bandwidth management software | |
| Special Features | Support for GIGABYTE Control Center (GCC)<br> * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.<br> Support for Q-Flash<br> Support for Q-Flash Plus | |
| Warranty Information | ||
| Warranty | 3 Years | |

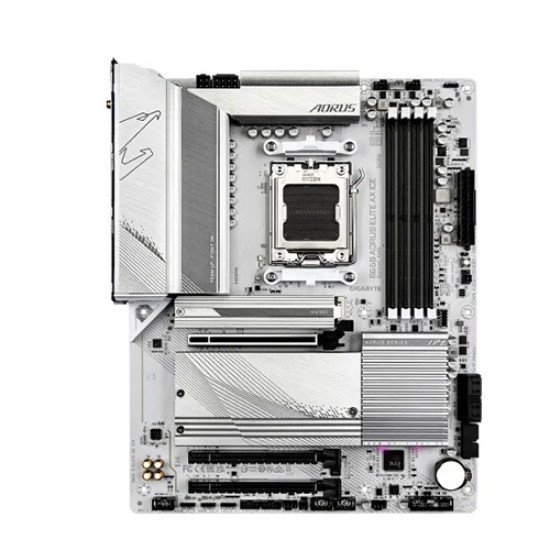

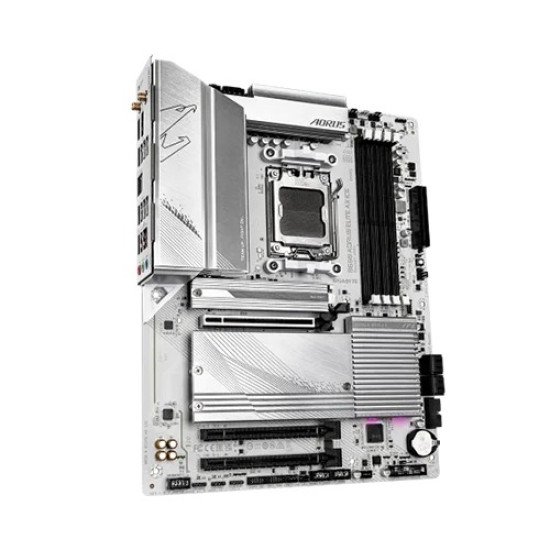

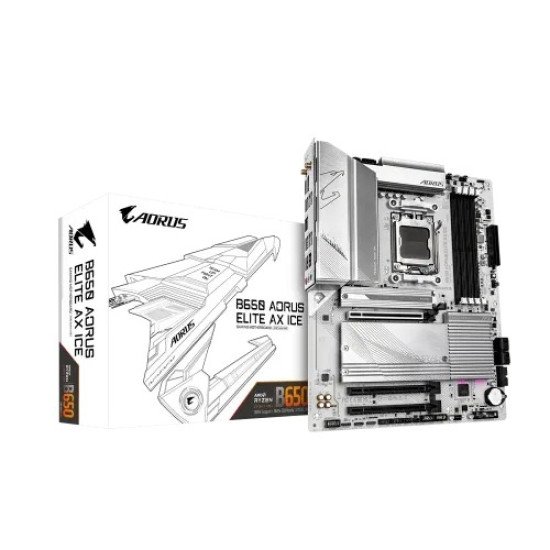

The GIGABYTE B650 AORUS ELITE AX ICE is a high-performance ATX motherboard designed for gamers, content creators, and PC enthusiasts seeking reliability, speed, and expandability. Built to support AMD Ryzen 7000 and 8000 Series processors via the AM5 socket, it integrates the AMD B650 chipset, providing robust performance and next-generation features. Its ATX form factor (30.5cm x 24.4cm) ensures compatibility with most standard PC cases while offering ample expansion options. The motherboard supports DDR5 memory across four DIMM slots, allowing speeds up to 8000 MHz (OC) and a maximum capacity of 192 GB, enabling lightning-fast multitasking and superior performance in demanding applications. For graphics, it features an integrated DisplayPort 1.4 and HDMI 2.1, capable of delivering up to 4K resolution with high refresh rates, and a PCIe x16 slot that supports the latest GPUs and NVMe SSDs, while additional PCIe 3.0 x1 slots offer further expansion possibilities. Storage options are extensive, including three M.2 slots (PCIe 4.0/5.0 depending on CPU) and four SATA 6Gb/s connectors, with RAID 0, 1, and 10 support, providing flexibility for high-speed storage configurations. Networking is handled by a 2.5GbE LAN port and Wi-Fi 6E with Bluetooth 5.3, ensuring ultra-fast, low-latency connections. The audio system employs a Realtek HD Audio CODEC, supporting 7.1-channel surround sound, and customizable through bundled audio software. RGB enthusiasts can enjoy multiple addressable and standard RGB headers, perfect for personalized lighting setups. Additionally, the motherboard offers comprehensive internal connectivity with USB 3.2 Gen 2x2 Type-C, multiple USB 3.2/2.0 headers, and fan/pump headers for advanced cooling setups. Features like Q-Flash Plus, GIGABYTE Control Center (GCC), and TPM support enhance usability, overclocking, and security. With a 3-year manufacturing warranty, the GIGABYTE B650 AORUS ELITE AX ICE delivers a blend of performance, versatility, and cutting-edge technology, making it an ideal foundation for a modern, high-performance PC.
The latest price of GIGABYTE B650 AORUS ELITE AX ICE Motherboard in Bangladesh is 28,800৳ You can buy the GIGABYTE B650 AORUS ELITE AX ICE Motherboard at best price from our Website or visit any of our showrooms.
