| Basic Information | ||
| Supported CPU | 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors | |
| Chipset | Intel B560 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 22.5cm | |
| Memory Specifications | ||
| Type | DDR4 | |
| Slots | 2 x DIMM | |
| Supported Memory | 11th Generation Intel Core i9/ i7/ i5 processors: Support for DDR4 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/ i3/ Pentium/ Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules | |
| Max. Memory | 64 GB (32 GB single DIMM capacity) | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note) 1 x PCI Express x1 slot (PCIEX1) (The PCIEX1 slot conforms to PCI Express 3.0 standard.) | |
| M.2 Socket | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz * Support for HDMI 2.0 version and HDCP 2.3. | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz | |
| USB (s) | Chipset: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset + USB 2.0 Hub: 8 x USB 2.0/ 1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers) | |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbit/100 Mbit) | |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB) 4 x SATA 6Gb/s connectors Intel Optane Memory Ready | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button | |
| D-Sub (s) | 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz | |
| Others Information | ||
| Special Features | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install | |
| Warranty Information | ||
| Manufacturing Warranty | 3 year | |

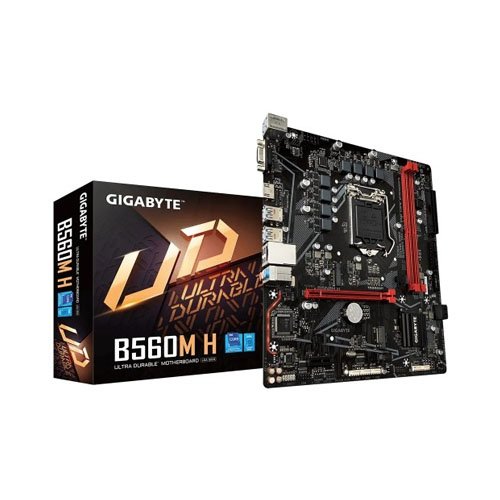

Gigabyte B560M H Ultra Durable Intel 10th And 11th Gen Micro ATX Motherboard Supports 11th And 10th Gen Intel Core Series Processors. It Has Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs. It Features Direct 6 + 2 Phases Digital VRM With Low RDS(On) MOSFETs. It Has Shielded Memory Routing For Better Memory Overclocking. It Comes With A Fully Covered Thermal Design With High Coverage MOSFET Heatsinks. It Is Powered By A Exclusive 8118 Gaming LAN With Bandwidth Management. It Supports Dual Ultra-Fast NVMe PCIe 4.0/3.0 X4 M.2 With Thermal Guard It Comes With Rear USB 3.2 Gen2 Type-C And Front USB3.2 Gen1 Type-C For Connecting Devices. It Has Pre-Installed IO Shield For Easy And Quick Installation. RGB FUSION 2.0 With Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips. Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers With FAN STOP. Q-Flash Plus Update BIOS Without Installing The CPU, Memory And Graphics Card.
Cooling Features:
High Current Support
Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
Precision Control
Up to 7 temperature/fan speed control points for precise fan curve
Dual Curve Mode
Slope/Stair dual mode for different user scenario
Fan Stop
Fan can stop completely below users' specified temperature point
Solid Pin Power Connectors:
B560 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
The latest price of Gigabyte B560M H Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard in Bangladesh is 11,000৳ You can buy the Gigabyte B560M H Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard at best price from our Website or visit any of our showrooms.
