| Basic Information | ||
| Supported CPU | 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors<br> 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / <br>Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors | |
| Chipset | Intel B560 Express Chipset | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel | |
| Memory Specifications | ||
| Type | Dual-channel memory architecture | |
| Slots | 4 x DDR4 DIMM | |
| Supported Memory | 11th Generation Intel Core i9/i7/i5 processors:<br> Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ <br>4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / <br>4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / <br>3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / <br>2133 MHz<br> 10th Generation Intel Core i9/i7 processors:<br> Support for DDR4 2933/2666/2400/2133 MHz memory modules<br> 10th Generation Intel Core i5/i3/Pentium/Celeron processors:<br> Support for DDR4 2666/2400/2133 MHz memory modules<br> 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system <br>memory<br> Dual channel memory architecture<br> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for Extreme Memory Profile (XMP) memory modules | |
| Max. Memory | 128 GB (32 GB single DIMM capacity) | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16<br> (The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Note)<br> 2 x PCI Express x1 slots<br> (The PCIEX1 slot conforms to PCI Express 3.0 standard.) | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) <br>(M2P_CPU) (Note)<br> Chipset:<br> 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) <br>(M2A_SB) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support:<br> 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz<br> 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz<br> * The DVI-D port does not support D-Sub connection by adapter.<br> 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz<br> * Support for DisplayPort 1.2 version and HDCP 2.3<br> * When the D-Sub port and DisplayPort are connected at the same time, images will output <br>from the DisplayPort only.<br> 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz<br> * Support for HDMI 1.4 version and HDCP 2.3.<br> Support for up to 3 displays at the same time | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz | |
| USB (s) | Chipset:<br> 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support<br> 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB <br>header)<br> 4 x USB 2.0/1.1 ports available through the internal USB headers<br> Chipset+USB 2.0 Hub:<br> 2 x USB 2.0/1.1 ports on the back panel | |
| LAN Port (s) | Realtek GbE LAN chip (1000/100 Mbit) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) <br>(M2P_CPU) (Note)<br> Chipset:<br> 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) <br>(M2A_SB)<br> 6 x SATA 6Gb/s connectors<br> Intel Optane Memory Ready | |
| Audio | 3 x audio jacks | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 3 x system fan headers<br> 1 x addressable LED strip header<br> 1 x RGB LED strip header<br> 6 x SATA 6Gb/s connectors<br> 2 x M.2 Socket 3 connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x serial port header<br> 1 x parallel port header<br> 1 x Clear CMOS jumper<br> 1 x Q-Flash Plus button | |
| D-Sub (s) | 1 x D-Sub port | |
| DVI-D (s) | 1 x DVI-D port | |
| Others Information | ||
| Special Features | Support for APP Center<br> @BIOS<br> EasyTune<br> Fast Boot<br> Game Boost<br> ON/OFF Charge<br> RGB Fusion<br> Smart Backup<br> System Information Viewer<br> Support for Q-Flash Plus<br> Support for Q-Flash<br> Support for Xpress Install | |
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

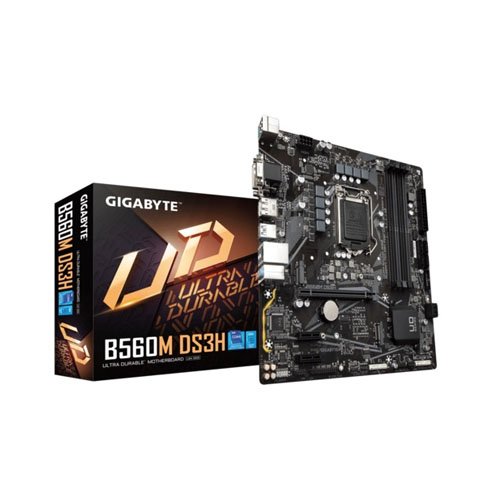

The Gigabyte B560M DS3H Intel 10th and 11th Gen Micro ATX Motherboard is a powerful and versatile motherboard designed to cater to both gaming enthusiasts and professional users seeking high performance at an affordable price. Built on the B560 chipset, this motherboard supports Intel’s 10th and 11th generation Core processors, delivering robust processing power for multitasking, gaming, and content creation. Its Micro ATX form factor ensures a compact build without compromising on essential features. Featuring dual-channel DDR4 memory support with speeds up to 3200MHz (OC), the B560M DS3H enables fast and responsive system performance. The motherboard includes multiple PCIe slots for graphics cards and expansion devices, along with ultra-fast NVMe M.2 storage options for quicker boot times and enhanced data transfer. It comes equipped with a high-quality audio chipset, HDMI and DVI outputs for versatile display options, and USB 3.2 Gen 1 ports for seamless connectivity. Additionally, the motherboard’s smart power design ensures stable and efficient power delivery to the CPU and memory, supporting overclocking capabilities safely. Its robust thermal design with multiple fan headers allows effective heat management even under heavy workloads. Whether building a gaming rig, a multimedia workstation, or a home office PC, the Gigabyte B560M DS3H offers reliability, efficiency, and performance that users can trust.
Special Benefits of Gigabyte B560M DS3H Intel 10th and 11th Gen Micro ATX Motherboard
To help you make the right choice, here are the standout features and benefits of the Gigabyte B560M DS3H Intel 10th and 11th Gen Micro ATX Motherboard:
Whether you’re upgrading your PC or building a new rig, this motherboard provides a perfect balance of performance, features, and value. For users looking for the Best 10th Gen Boards, this Gigabyte Intel motherboard is a top choice in our 10th Gen Motherboard category at Tech Valley, offering reliability and high-end features for modern computing needs.
The latest price of Gigabyte B560M DS3H Intel 10th and 11th Gen Micro ATX Motherboard in Bangladesh is 12,800৳ You can buy the Gigabyte B560M DS3H Intel 10th and 11th Gen Micro ATX Motherboard at best price from our Website or visit any of our showrooms.
