| Basic Information | ||
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors | |
| Chipset | AMD B550 | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Memory Specifications | ||
| Type | Dual Channel DDR4 Memory Technology | |
| Slots | 4 x DIMM | |
| Supported Memory | AMD Ryzen™ 5000 series processors:<br> Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / <br>3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz <br>memory modules<br> 3rd Gen AMD Ryzen™ Processors:<br> Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/ 2933/ 2667/ 2400/ <br>2133 MHz memory modules<br> 3rd Gen AMD Ryzen with Radeon Graphics processors:<br> Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) <br>/3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules<br> Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules<br> Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules<br> Support for Extreme Memory Profile (XMP) memory modules | |
| Max. Memory | 128 GB | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:<br> 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode<br> 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode<br> 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:<br> Supporting PCIe 3.0 x4 mode<br> 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:<br> Supporting PCIe 3.0 x1 mode | |
| M.2 Socket | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type <br>2242/2260/2280/22110 SSDs: | |
| Graphics | ||
| Max Shared Memory | 16 GB | |
| Graphics | Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors:<br> 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz<br> The DVI-D port does not support D-Sub connection by adapter.<br> 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> Support for HDMI 2.1 version, HDCP 2.3, and HDR. | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> (Support for HDMI 2.1 version, HDCP 2.3, and HDR) | |
| USB (s) | CPU:<br> 4 x USB 3.2 Gen 1 ports on the back panel<br> Chipset:<br> 2 x USB 3.2 Gen 1 ports available through the internal USB header<br> 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB <br>header) | |
| LAN Port (s) | Realtek GbE LAN chip (1000 Mbit/100 Mbit)<br> Wireless Communication module:<br> Intel Wi-Fi AC 3168<br> WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band<br> BLUETOOTH 4.2<br> Support for 11ac wireless standard and up to 433 Mbps data rate | |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type <br>2242/2260/2280/22110 SSDs:<br> 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs<br> 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 <br>SSDs<br> 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type <br>2242/2260/2280 SSDs:<br> Supporting SATA and PCIe 3.0 x2 SSDs<br> 4 x SATA 6Gb/s connectors, integrated in the Chipset:<br> Support for RAID 0, RAID 1, and RAID 10 | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 2 x system fan headers<br> 2 x addressable LED strip headers<br> 2 x RGB LED strip headers<br> 1 x CPU cooler LED strip/RGB LED strip header<br> 2 x M.2 Socket 3 connectors<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB 3.2 Gen 1 header<br> 1 x USB 2.0/1.1 header<br> 1 x serial port header<br> 1 x Clear CMOS jumper<br> 1 x Q-Flash Plus button | |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz<br> (The DVI-D port does not support D-Sub connection by adapter) | |
| Others Information | ||
| Special Features | Special Features<br> Support for APP Center<br> @BIOS<br> EasyTune<br> Fast Boot<br> Game Boost<br> ON/OFF Charge<br> RGB Fusion<br> Smart Backup<br> System Information Viewer<br> Support for Q-Flash Plus<br> Support for Q-Flash<br> Support for Xpress Install | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years | |

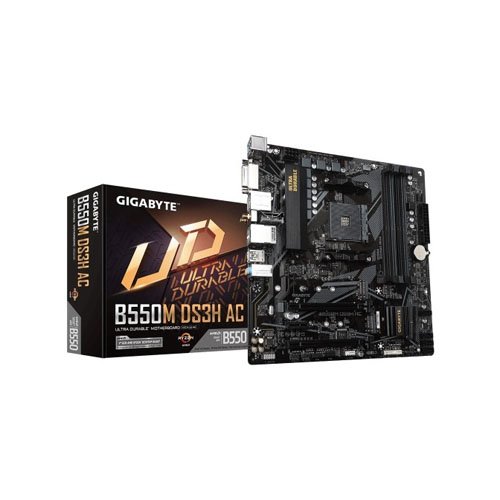

The Gigabyte B550M DS3H AC Ultra Durable Micro ATX AMD Motherboard is a reliable and performance-driven solution designed for AMD Ryzen processors, delivering excellent stability, connectivity, and expansion options for modern PC builds. Built on the powerful AMD B550 chipset, this motherboard supports 3rd Gen AMD Ryzen processors and is also compatible with newer Ryzen CPUs (with BIOS update), making it a versatile choice for gamers, content creators, and everyday users. Its Micro ATX form factor ensures compatibility with a wide range of compact and mid-sized PC cases while still offering impressive features and expandability. Equipped with dual-channel DDR4 memory support, the board allows high-speed RAM configurations for smooth multitasking and enhanced system performance. The PCIe 4.0 support on select processors ensures faster data transfer speeds for next-generation graphics cards and NVMe SSDs, helping users achieve top-tier gaming and productivity performance. It features M.2 slots for ultra-fast SSD storage, along with multiple SATA ports for additional storage expansion. Integrated AC WiFi and Bluetooth connectivity provide seamless wireless networking, reducing cable clutter and ensuring stable internet access. Gigabyte’s Ultra Durable design enhances system longevity with high-quality components, solid capacitors, and advanced thermal solutions. Smart Fan technology ensures optimal cooling management, while multiple USB ports, HDMI, and DVI outputs provide flexible connectivity options. Whether you’re building a budget-friendly gaming rig or a dependable workstation, the Gigabyte B550M DS3H AC Ultra Durable Micro ATX AMD Motherboard offers a balanced combination of performance, durability, and modern features.
The Gigabyte B550M DS3H AC Ultra Durable Micro ATX AMD Motherboard is engineered to deliver strong performance, reliable connectivity, and long-term durability for AMD-based systems.
Below are the key features that make this motherboard a smart choice for gamers and PC builders:
The latest price of Gigabyte B550M DS3H AC Ultra Durable Micro ATX AMD Motherboard in Bangladesh is 15,200৳ You can buy the Gigabyte B550M DS3H AC Ultra Durable Micro ATX AMD Motherboard at best price from our Website or visit any of our showrooms.
