| Basic Information | ||
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors | |
| Chipset | AMD B550 | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Memory Specifications | ||
| Type | Dual-Channel Architecture | |
| Slots | 4 x DDR4 memory slots | |
| Supported Memory | 3rd Gen AMD Ryzen Processors:<br> Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz <br>memory modules<br> New Generation AMD Ryzen with Radeon Graphics processors:<br> Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) <br>/3200 /2933 /2667 /2400 /2133 MHz memory modules | |
| Max. Memory | support up to 128GB | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:<br> - 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode<br> - New Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode<br> 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:<br> - Supporting PCIe 3.0 x2 mode<br> 1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:<br> - Supporting PCIe 3.0 x1 mode<br> 1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:<br> - Supporting PCIe 3.0 x1 mode | |
| M.2 Socket | 1 x PCI Express x16 slot (PCIEX16), integrated into the CPU:<br> 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode<br> 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode<br> 1 x PCI Express x16 slot (PCIEX4), integrated into the Chipset:<br> Supporting PCIe 3.0 x4 mode<br> 1 x PCI Express x1 slot (PCIEX1), integrated into the Chipset:<br> Supporting PCIe 3.0 x1 mode | |
| Graphics | ||
| Max Shared Memory | 16 GB | |
| Graphics | Integrated into the 3rd Generation AMD Ryzen with Radeon Graphics processors:<br> 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz<br> 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| Connector & Ports | ||
| HDMI | x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| USB (s) | 4 x USB 3.2 Gen 1 ports on the back panel<br> Chipset:<br> 2 x USB 3.2 Gen 1 ports available through the internal USB header<br> 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal <br>USB header) | |
| LAN Port (s) | Realtek GbE LAN chip (1000 Mbit/100 Mbit) | |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type <br>2242/2260/2280/22110 SSDs:<br> 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs<br> 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 <br>x4/x2 SSDs<br> 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type <br>2242/2260/2280 SSDs:<br> Supporting SATA and PCIe 3.0 x2 SSDs<br> 4 x SATA 6Gb/s connectors, integrated in the Chipset:<br> Support for RAID 0, RAID 1, and RAID 10 | |
| Audio | Realtek ALC887 codec<br> High Definition Audio<br> 2/4/5.1/7.1-channel | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 2 x system fan headers<br> 2 x addressable LED strip headers<br> 2 x RGB LED strip headers<br> 1 x CPU cooler LED strip/RGB LED strip header<br> 2 x M.2 Socket 3 connectors<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB 3.2 Gen 1 header<br> 1 x USB 2.0/1.1 header<br> 1 x serial port header<br> 1 x Clear CMOS jumper<br> 1 x Q-Flash Plus button | |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz | |
| Others Information | ||
| Special Features | Support for APP Center<br> @BIOS<br> EasyTune<br> Fast Boot<br> Game Boost<br> ON/OFF Charge<br> RGB Fusion<br> Smart Backup<br> System Information Viewer<br> Support for Q-Flash Plus<br> Support for Q-Flash<br> Support for Xpress Install | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years warranty | |

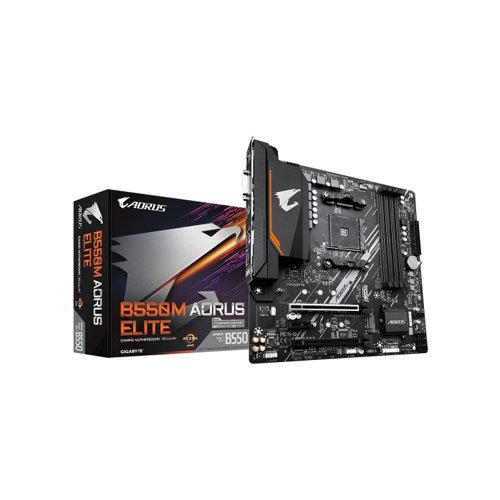

The Gigabyte B550M Aorus Elite AMD Micro ATX Motherboard is a powerful and versatile platform built to support modern AMD systems with stability, performance, and expandability at its core. Designed around the AMD B550 chipset, this motherboard fully supports AMD Ryzen 5000 Series, 4000G Series, and 3rd Generation Ryzen processors, making it an excellent choice for gamers, creators, and performance-focused PC builders. Its Micro ATX form factor (24.4cm x 24.4cm) ensures compatibility with compact cases while still offering rich features typically found in larger boards. Memory performance is a strong highlight, with four DDR4 DIMM slots supporting dual-channel architecture and up to 128GB of RAM. Depending on the processor, it supports high-speed memory up to DDR4 4733 MHz (OC), enabling smooth multitasking, faster load times, and enhanced system responsiveness. For expansion, the board includes a PCIe 4.0 x16 slot (with supported CPUs), multiple PCIe 3.0 slots, and dual M.2 connectors, allowing users to install high-speed NVMe SSDs for rapid data access and system boot times. Storage flexibility is further enhanced with four SATA 6Gb/s ports supporting RAID 0, 1, and 10, ideal for both performance and data protection setups. Integrated graphics support is available through HDMI (up to 4K@60Hz) and DVI-D, making it suitable for Ryzen processors with Radeon Graphics. Connectivity is rounded out with USB 3.2 Gen 1 ports, Realtek GbE LAN, and Realtek ALC887 7.1-channel HD audio for immersive sound. Additional features such as RGB Fusion, Q-Flash Plus, Smart Backup, and APP Center utilities provide easy system management and customization. Backed by a 3-year manufacturing warranty, the Gigabyte B550M Aorus Elite delivers a reliable, future-ready foundation for high-performance AMD builds.
The Gigabyte B550M Aorus Elite is engineered to deliver high performance, stability, and future-ready features for AMD-based systems. With advanced power delivery, fast connectivity, and extensive expansion options, it is an ideal choice for gamers, professionals, and PC enthusiasts.
Key Advanced Features:
AMD B550 Chipset Support – Fully compatible with AMD Ryzen 5000, 4000G, and 3rd Gen Ryzen processors for modern computing performance.
PCIe 4.0 Ready Design – PCIe 4.0 x16 support (with compatible CPUs) ensures faster graphics and next-gen expansion performance.
High-Speed DDR4 Memory Support – Four DIMM slots support up to 128GB DDR4 RAM with overclocking speeds up to 4733 MHz.
Dual M.2 NVMe Slots – Supports PCIe 4.0 and PCIe 3.0 SSDs for ultra-fast storage and quick system boot.
Advanced Thermal Design – Optimized heatsinks help maintain stable temperatures during heavy workloads.
RGB Fusion Support – Multiple RGB and addressable LED headers allow full system lighting customization.
Q-Flash Plus Technology – Update BIOS easily without installing CPU, RAM, or GPU.
High-Quality Audio & LAN – Realtek ALC887 7.1-channel HD audio and Gigabit LAN ensure immersive sound and stable networking.
Build a powerful and future-proof AMD system today with the Gigabyte B550M Aorus Elite motherboard and unlock next-level performance. Explore premium Motherboard solutions from GIGABYTE (AMD), trusted worldwide for durability and innovation. Order with confidence from Tech Valley, your reliable destination for authentic PC components and expert support.
The latest price of Gigabyte B550M Aorus Elite AMD Micro ATX Motherboard in Bangladesh is 22,300৳ You can buy the Gigabyte B550M Aorus Elite AMD Micro ATX Motherboard at best price from our Website or visit any of our showrooms.
