| Basic Information | ||
| Supported CPU | AMD Socket AM4, support for 3rd Generation AMD Ryzen processors/ 2nd Generation AMD <br>Ryzen processors/ 1st Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen with <br>Radeon Vega Graphics processors/ 1st Generation AMD Ryzen with Radeon Vega Graphics <br>processors/ AMD Ryzen with Radeon Vega Graphics processors | |
| Chipset | AMD B450 | |
| BIOS | 1 x 128 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor: 24.4cm x 20.5cm | |
| Memory Specifications | ||
| Type | Dual channel memory architecture | |
| Slots | 2 x DDR4 DIMM | |
| Supported Memory | Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules<br> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for Extreme Memory Profile (XMP) memory modules | |
| Max. Memory | 32 GB | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16<br> (The PCIEX16 slot conforms to PCI Express 3.0 standard.)<br> 2 x PCI Express x1 slots<br> (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support) | |
| Graphics | ||
| Max Shared Memory | 16 GB | |
| Graphics | Integrated Graphics Processor:<br> 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz<br> 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| USB (s) | Chipset:<br> 2 x USB 3.1 Gen 1 ports available through the internal USB header<br> 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)<br> CPU:<br> 4 x USB 3.1 Gen 1 ports on the back panel | |
| LAN Port (s) | Realtek GbE LAN chip (1000 Mbit/100 Mbit) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)<br> 4 x SATA 6Gb/s connectors<br> Support for RAID 0, RAID 1, and RAID 10 | |
| Audio | Realtek ALC887 codec<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> Support for S/PDIF Out | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 1 x system fan header<br> 1 x M.2 Socket 3 connector<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x S/PDIF Out header<br> 1 x CPU cooler LED strip/RGB LED strip header<br> 1 x USB 3.1 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x speaker header<br> 1 x Clear CMOS jumper<br> 1 x chassis intrusion header | |
| D-Sub (s) | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz | |
| Others Information | ||
| Special Features | Support for APP Center<br> AutoGreen<br> Cloud Station<br> EasyTune<br> Fast Boot<br> Game Boost<br> ON/OFF Charge<br> RGB Fusion<br> Smart Backup<br> Smart Keyboard<br> Smart Survey<br> System Information Viewer<br> USB Blocker<br> Support for Q-Flash<br> Support for Xpress Install | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years | |

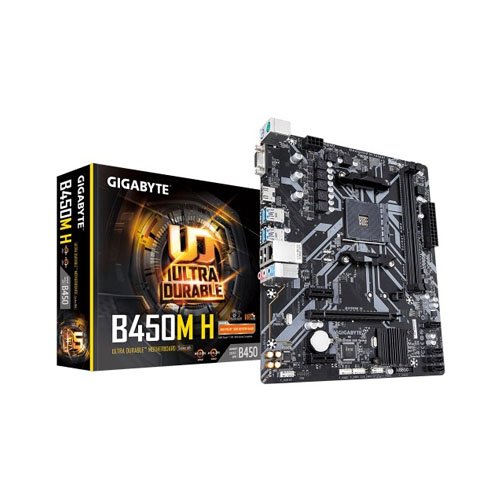

Power Up Your Gaming Experience With First-, Second-, And Third-Generation AMD Ryzen Processors With The AM4 Socket Using The B450M H AM4 Micro-ATX Motherboard From Gigabyte. Designed For Small Form Factor Systems, This Micro-ATX Motherboard Takes Advantage Of The B450 Chipset To Run Demanding Games And Applications. Up To 32GB Of Dual-Channel DDR4 RAM At 3600 MHz When Overlocking Can Be Installed Across Four Memory Slots For Efficient Multitasking And To Run High-End Games. The Durable Motherboard Also Features An M.2 SSD Slot And Supports Up To Four SATA III Storage Drives, Which Can Be Put Into RAID 0, 1, Or 10 Configuration. Peripherals Such As Keyboards And Mice Can Be Plugged Into The Rear Panel's USB 2.0 Type-A Ports While The USB 3.1 Ports Support Speeds Up To 5 Gb/S With Compatible Storage Drives
The latest price of GIGABYTE B450M H Ultra Durable AMD AM4 Micro-ATX Motherboard in Bangladesh is 6,100৳ You can buy the GIGABYTE B450M H Ultra Durable AMD AM4 Micro-ATX Motherboard at best price from our Website or visit any of our showrooms.
