| Basic Information | ||
| Supported CPU | AMD Ryzen™ 2nd Generation processors<br> AMD Ryzen™ with Radeon™ Vega Graphics processors<br> AMD Ryzen™ 1st Generation processors | |
| Chipset | AMD B450 | |
| BIOS | 2 x 128 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> Support for DualBIOS™<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Memory Specifications | ||
| Type | Dual Channel DDR4 Memory Technology | |
| Slots | 4 x DDR4 DIMM | |
| Supported Memory | Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules<br> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for Extreme Memory Profile (XMP) memory modules | |
| Max. Memory | 64 GB | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16)<br> * Actual support may vary by CPU.<br> * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to <br>install it in the PCIEX16 slot.<br> (The PCIEX16 slot conforms to PCI Express 3.0 standard.)<br> 1 x PCI Express x16 slot, running at x4 (PCIEX4)<br> * The PCIEX4 slot shares bandwidth with the PCIEX1_1 and PCIEX1_2 slots. The PCIEX4 slot<br> operates at up to x2 mode when the PCIEX1_1/PCIEX1_2 slot is populated. The PCIEX4 slot<br> operates at up to x4 mode when both of the PCIEX1_1 and PCIEX1_2 slots are empty.<br> 1 x PCI Express x16 slot, running at x1 (PCIEX1_2)<br> 1 x PCI Express x1 slot (PCIEX1_1)<br> (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.) | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD <br>support) (M2A_SOCKET)<br> 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET) | |
| Graphics | ||
| Graphics | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies | |

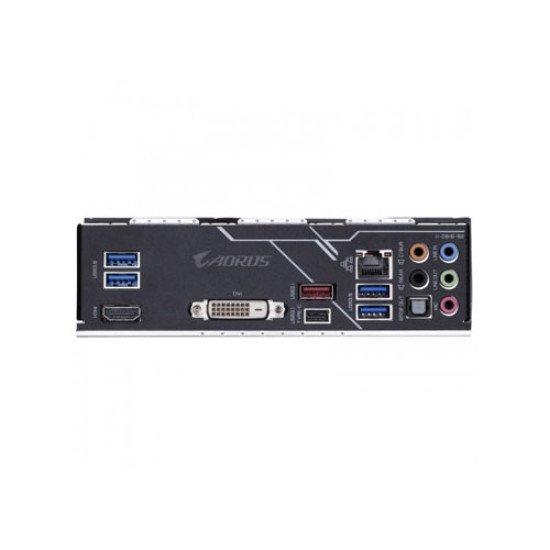

| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| USB (s) | Chipset: 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel 2 x USB 3.1 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports available through the internal USB headers CPU: 4 x USB 3.1 Gen 1 ports on the back panel | |
| LAN Port (s) | Intel® GbE LAN chip (10/100/1000 Mbit) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD <br>support) (M2A_SOCKET)<br> 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)<br>(M2B_SOCKET)<br> 6 x SATA 6Gb/s connectors<br> Support for RAID 0, RAID 1, and RAID 10<br> * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA <br>connectors. | |
| Audio | Realtek® ALC1220-VB codec<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> Support for S/PDIF Out | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 2 x M.2 Socket 3 connectors<br> 6 x SATA 6Gb/s connectors<br> 1 x CPU fan header<br> 1 x water cooling CPU fan header<br> 2 x system fan headers<br> 1 x system fan/water cooling pump header<br> 1 x CPU cooler LED strip/RGB LED strip header<br> 2 x digital LED strip headers<br> 2 x digital LED strip power select jumpers<br> 1 x RGB (RGBW) LED strip header<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x S/PDIF Out header<br> 1 x USB 3.1 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x Clear CMOS jumper | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years | |
GIGABYTE motherboards are ready to support the latest AMD Ryzen™ 5000 Series Processors and are backwards compatible with AMD Ryzen™ 4000, 3000, 2000 and 1000 Series Processors. With a rich list of features on GIGABYTE motherboards such as Ultra Durable™ Armor for PCIe/ memory slots, USB Type-C™ interfaces on select boards, refined audio quality, high speed Ethernet, and the latest standard WIFI design on selected models, GIGABYTE motherboards are perfect for users looking to build the best AMD platform systems.
GIGABYTE 400-series maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.
The AORUS motherboards boast a combination of Hi-Fi grade WIMA FKP2 capacitors and high-end Chemicon audio capacitors. While the high-end audio capacitors are suited for high-grade audio equipment, using state of the art technology to provide rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in premium grade Hi-Fi systems. The addition of this to the exclusive AOURS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.
See More Motherboard

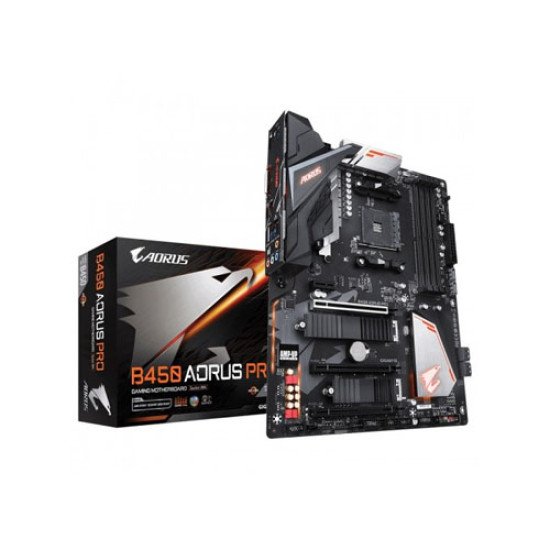

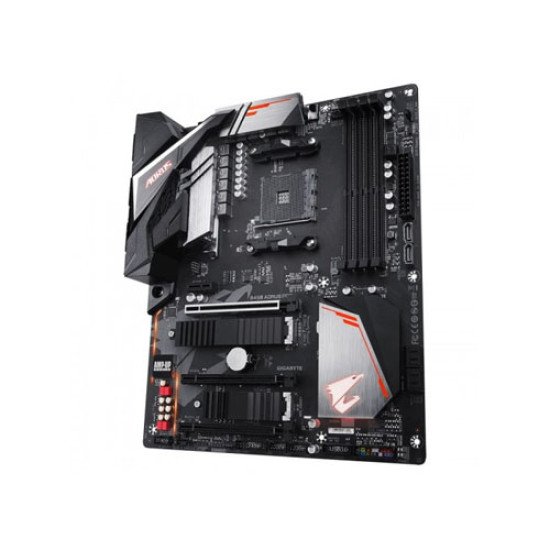

The latest price of Gigabyte B450 AORUS PRO AM4 AMD ATX Motherboard in Bangladesh is 12,200৳ You can buy the Gigabyte B450 AORUS PRO AM4 AMD ATX Motherboard at best price from our Website or visit any of our showrooms.
