| Basic Information | ||
| Supported CPU | AMD Ryzen 2nd Generation processors<br> AMD Ryzen with Radeon™ Vega Graphics processors<br> AMD Athlon with Radeon™ Vega Graphics processors<br> AMD Ryzen 1st Generation processors | |
| Chipset | AMD B450 | |
| BIOS | 1 x 128 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor; 30.5cm x 23.5cm | |
| Audio | Realtek ALC892 codec<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> Support for S/PDIF Out | |
| Memory Specifications | ||
| Type | Dual channel memory architecture | |
| Slots | 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory | |
| Supported Memory | Support for DDR4 2933/2667/2400/2133 MHz memory modules<br> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for Extreme Memory Profile (XMP) memory modules | |
| Max. Memory | 64 GB | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16)<br> * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to<br> install it in the PCIEX16 slot.<br> ** Actual support may vary by CPU.<br> (The PCIEX16 slot conforms to PCI Express 3.0 standard.)<br> 1 x PCI Express x16 slot, running at x4 (PCIEX4)<br> * The PCIEX4 slot shares bandwidth with the PCIEX1_2 slot. The PCIEX4 slot operates at up to <br>x2 mode when the PCIEX1_2 slot is populated. The PCIEX4 slot operates at up to x4 mode<br> when the PCIEX1_2 is empty.<br> 2 x PCI Express x1 slots<br> (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.) | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe 3.0 x4/x2 SSD support) | |
| Graphics | ||
| Max Shared Memory | 16 GB | |
| Graphics | Integrated Graphics Processor:<br> 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz<br> * The DVI-D port does not support D-Sub connection by adapter.<br> 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> * Support for HDMI 2.0 version and HDCP 2.2.<br> ** Actual support may vary by CPU. | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> Support for HDMI 2.0 version and HDCP 2.2. | |
| USB (s) | 2 x USB 3.1 Gen 1 ports available through the internal USB header<br> 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)<br> 4 x USB 3.1 Gen 1 ports on the back panel | |
| LAN Port (s) | 1 x RJ-45 port<br> Realtek GbE LAN chip (10/100/1000 Mbit) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support)<br> * Supports only M.2 SATA SSDs when using an AMD 7th Generation A-series or Athlon™ <br>processor.<br> 4 x SATA 6Gb/s connectors<br> Support for RAID 0, RAID 1, and RAID 10 | |
| Audio | 3 x audio jacks<br> Realtek ALC892 codec<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> Support for S/PDIF Out | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x CPU fan header 3 x system fan headers<br> 1 x CPU cooler LED strip/RGB LED strip header<br> 1 x RGB LED strip header<br> 2 x addressable LED strip headers<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x S/PDIF Out header<br> 1 x USB 3.1 Gen 1 header<br> 1 x USB 2.0/1.1 header<br> 1 x serial port header<br> 1 x Clear CMOS jumper | |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz<br> The DVI-D port does not support D-Sub connection by adapter. | |
| Others Information | ||
| Special Features | Others<br> Special Features<br> Support for APP Center<br> * Available applications in APP Center may vary by motherboard model. Supported functions <br>of each application may also vary depending on motherboard specifications.<br> 3D OSD<br> @BIOS<br> AutoGreen<br> Cloud Station<br> EasyTune<br> Fast Boot<br> Game Boost<br> ON/OFF Charge<br> RGB Fusion<br> Smart Backup<br> Smart Keyboard<br> Smart TimeLock<br> Smart HUD<br> Smart Survey<br> System Information Viewer<br> USB Blocker<br> Support for Q-Flash<br> Support for Xpress Install | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years | |

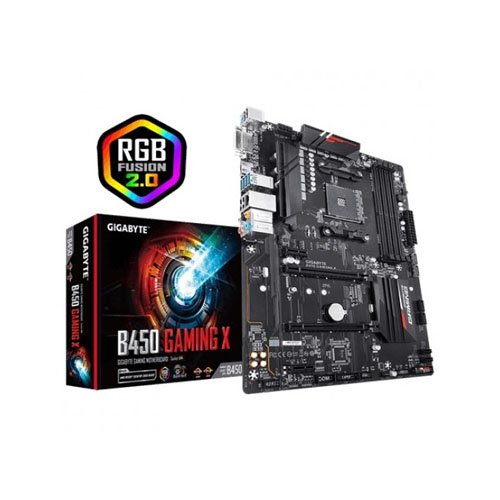

The AMD B450 Gaming X AM4 ATX Motherboard From GIGABYTE Is Built On The AMD B450 Chipset, Supporting Ryzen Processors With An AM4 Socket. It Has Four Memory Slots That Can Hold Up To 64GB Of DDR4 RAM Running At Up To 2933 MHz When Overclocked. For Storage, It's Equipped With Six SATA III Ports And A Single M.2 Slot, Which Utilizes The PCIe 3.0 X4 Interface For Speeds Of Up To 32 Gb/S When Used With An Appropriate Drive. While It's Equipped With DVI-D And HDMI Outputs For Integrated Graphics, This Motherboard Also Has One PCIe 3.0 X16 Slot For A Graphics Card As Well As A PCIe 2.0 X16 And Two PCIe 2.0 X1 Slots For Other PCIe-Based Hardware. Other Notable Integrated Features Include Realtek ALC892 7.1-Channel HD Audio, Realtek ALC892 Gigabit LAN, And MSI Mystic Light RGB Lighting.
See more Motherboard
The latest price of Gigabyte AMD B450 Gaming X Motherboard in Bangladesh is 9,900৳ You can buy the Gigabyte AMD B450 Gaming X Motherboard at best price from our Website or visit any of our showrooms.
