| Camera |
| Image Sensor |
1/2.7 inch CMOS |
| Max. Resolution |
2880 (H) × 1620 (V) |
| Pixel |
5MP |
| Scanning System |
Progressive |
|
Electronic Shutter Speed
|
PAL: 1/25s–1/100000s |
| NTSC: 1/30s–1/100000s |
| S/N Ratio |
>65 dB |
| Min. Illumination |
0.005 Lux/F1.6, 30IRE, 0 Lux IR on |
| Illumination Distance |
30 m (98.4 ft) |
| Illuminator On/Off Control |
Auto; manual |
| Illuminator Number |
3 |
|
Pan/Tilt/Rotation Range
|
Pan: 0°–360° |
| Tilt: 0°–90° |
| Rotation: 0°–360° |
| Lens |
| Lens Type |
Fixed-focal |
| Mount Type |
M12 |
| Focal Length |
2.8 mm; 3.6 mm |
| Max. Aperture |
F1.6 |
|
Field of View
|
2.8 mm: 132° × 111° × 58° |
| (diagonal × horizontal × vertical) |
| 3.6 mm: 109° × 92° × 48° |
| (diagonal × horizontal × vertical) |
| Iris Type |
Fixed iris |
|
Close Focus Distance
|
2.8 mm: 0.9 m (3.0 ft) |
| 3.6 mm: 1.6 m (5.2 ft) |
|
DORI Distance
|
Lens |
Detect |
Observe |
Recognize |
Identify |
|
2.8 mm
|
63.6 m (208.7 ft)
|
25.4 m |
12.7 m |
6.4 m |
| (83.3 ft) |
(41.7 ft) |
(21.0ft) |
|
3.6 mm
|
80 m |
32 m |
16 m |
8 m |
| (262.5 ft) |
(105.0 ft) |
(52.5 ft) |
(26.2 ft) |
| Video |
|
Frame Rate
|
CVI: |
| PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps; |
| NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps |
| AHD: |
| PAL: 4M@25 fps; |
| NTSC: 4M@30 fps |
| TVI: |
| PAL: 4M@25 fps; |
| NTSC: 4M@30 fps |
| CVBS: |
| PAL: 960H; |
| NTSC: 960H |
| Resolution |
5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960 H (960 × 576/960 × 480) |
| Day/Night |
Auto switch by ICR |
| BLC |
BLC/HLC/DWDR |
| WDR |
DWDR |
| White Balance |
Auto; manual |
| Gain Control |
Auto; manual |
| Noise Reduction |
2D NR |
| Smart IR |
Yes |
| Mirror |
Off/On |
| Privacy Masking |
Off/On (8 area, rectangle) |
| Certifications |
|
Certifications
|
CE (EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010+A1:2015, EN 55035:2017, EN 50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017) |
| FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
| UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Port |
| Video Output |
Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Power |
| Power Supply |
12V ±30% DC |
| Power Consumption |
Max 3.7W (12V DC, IR on) |
| Environment |
| Operating Temperature |
-40°C to +60°C (-40°F to 140°F); <95% (non-condensation) |
| Storage Temperature |
-40°C to +60°C (-40°F to 140°F); <95% (non-condensation) |
| Protection Grade |
IP67 |
| Structure |
| Casing |
Plastic throughout the whole casing |
| Camera Dimensions |
161.3mm×69.7mm×70.0mm(6.35″×2.75″×2.75″ ) |
| Net Weight |
0.19 kg (0.55 lb) |
| Gross Weight |
0.29 kg (0.64 lb) |

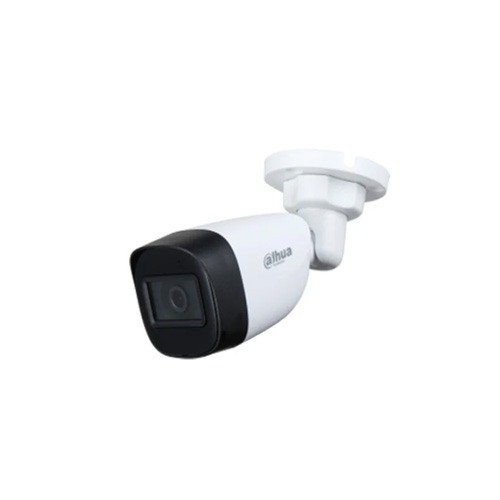

Dahua HAC-HFW1500CP 5MP Starlight HDCVI IR Bullet Camera
The Dahua HAC-HFW1500CP 5MP Starlight HDCVI IR Bullet Camera is a cutting-edge surveillance solution engineered for high-performance security applications. With advanced features and state-of-the-art technology, this camera ensures unparalleled image quality and reliability. Equipped with a 5MP 1/2.7-inch CMOS image sensor, the camera delivers a maximum resolution of 2880 x 1620 pixels, capturing crystal-clear details for precise surveillance. The progressive scanning system and electronic shutter speed control (PAL: 1/25s–1/100000s, NTSC: 1/30s–1/100000s) ensure smooth video capture and adaptability to various lighting conditions. In low-light environments, the camera shines with its Starlight technology, offering a minimum illumination of 0.005 Lux/F1.6 (0 Lux with IR on) and an impressive illumination distance of up to 30 meters (98.4 feet). The three illuminators with auto/manual control enhance visibility in challenging lighting scenarios. The fixed-focal lens with options of 2.8mm or 3.6mm provides flexibility in capturing wide-angle or focused views. The DORI distance guidelines further assist in planning surveillance coverage based on detection, observation, recognition, and identification criteria. Featuring versatile video output choices (CVI/TVI/AHD/CVBS) and supporting multiple resolutions (5M, 4M, 1080P, 960H), the camera ensures compatibility with various systems. The auto-switch day/night function, BLC/HLC/DWDR, and advanced image enhancements like 2D NR and Smart IR contribute to optimal image quality Certified with CE, FCC, and UL, the camera meets international standards for quality and safety. The IP67-rated casing ensures durability and weather resistance. With operating temperatures ranging from -40°C to +60°C (-40°F to 140°F), and a power-efficient design (Max 3.7W with IR on), this camera is suitable for diverse environments. The Dahua HAC-HFW1500CP offers a comprehensive and reliable solution for high-resolution surveillance, making it an ideal choice for demanding security applications.
Dahua HAC-HFW1500CP 5MP Starlight HDCVI IR Bullet Camera
- Image Sensor: The 1/2.7-inch CMOS image sensor provides a maximum resolution of 2880 (H) × 1620 (V) pixels, delivering crisp and detailed images.
- Low Light Performance: With a minimum illumination of 0.005 Lux/F1.6 and 0 Lux with IR on, this camera excels in low-light conditions, ensuring clear and high-quality footage even in the dark.
- Illumination and Night Vision: Equipped with three illuminators, the camera offers an illumination distance of 30 meters (98.4 feet), enhancing visibility during nighttime surveillance.
- Pan/Tilt/Rotation: The camera provides a wide range of viewing with a pan range of 0°–360°, tilt range of 0°–90°, and rotation range of 0°–360°.
- Lens and Field of View: The fixed-focal lens options of 2.8mm and 3.6mm, with a maximum aperture of F1.6, offer flexibility in capturing wide-angle or focused views. The field of view ranges from 109° to 132°.
- DORI Distance: The DORI distance guidelines assist in planning surveillance coverage based on detection, observation, recognition, and identification criteria.
- Video Frame Rate and Resolution: Supporting multiple video formats, including CVI, AHD, TVI, and CVBS, the camera offers a range of frame rates and resolutions, including 5M (2880 × 1620), 4M (2560 × 1440), 1080P (1920 × 1080), and 960H.
- Advanced Imaging Features: The camera features an auto-switch day/night function, BLC/HLC/DWDR, white balance control, gain control, 2D noise reduction, Smart IR technology, and mirror functionality for versatile and optimized image capture.
- Certifications and Ports: Certified with CE, FCC, and UL standards, ensuring compliance with international quality and safety requirements. The camera supports multiple video output choices through one BNC port.
- Power and Environment: Operating on 12V ±30% DC, the camera has a maximum power consumption of 3.7W with IR on. It is designed to withstand extreme temperatures ranging from -40°C to +60°C (-40°F to 140°F) and features IP67 protection against environmental elements.
- Construction:n With a robust plastic casing and compact dimensions (161.3mm×69.7mm×70.0mm), the camera is both durable and discreet, making it suitable for various surveillance applications. The net weight is 0.19 kg (0.55 lb), and the gross weight is 0.29 kg (0.64 lb).
