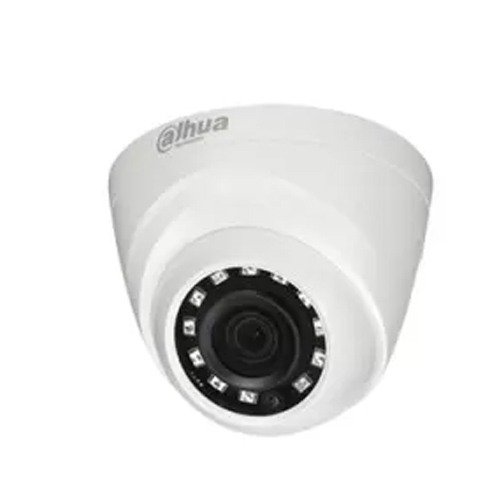

Dahua HAC-HDW1200R 2MP HDCVI IR Eyeball Camera
Dahua HAC-HDW1200R 2MP HDCVI IR Eyeball Camera is a cutting-edge surveillance solution designed to deliver exceptional performance and clarity. Equipped with a 1/2.7 inch CMOS image sensor, this camera boasts an impressive 2MP resolution, providing sharp and detailed images for enhanced security monitoring. The progressive scanning system ensures smooth and clear video footage. With an electronic shutter speed ranging from 1/25s to 1/100000s (PAL) and 1/30s to 1/100000s (NTSC), the camera excels in capturing fast-paced movements with precision. The minimum illumination of 0.02Lux/F1.9, combined with 12 powerful IR LEDs offering a 20-meter working distance, ensures optimal performance even in low-light conditions. The camera features a fixed-focal lens with a choice between 2.8mm and 3.6mm options, providing a wide field of view for comprehensive coverage. The lens's iris type is fixed, and the close focus distance varies, allowing flexibility in different surveillance scenarios. Designed for versatility, the Dahua HAC-HDW1200R supports various video formats, including CVI, AHD, TVI, and CVBS, with frame rates up to 1080P@25/30fps. The Day/Night auto-switch function, along with features like BLC/HLC/DWDR, DWDR, and Smart IR, ensures optimal image quality in varying lighting conditions. This camera is not only technologically advanced but also robust and reliable. It meets industry certifications such as CE, FCC, and UL, attesting to its compliance with rigorous quality and safety standards. The camera's environmental operating range spans from -40°C to +60°C (-40°F to 140°F), making it suitable for diverse climates. The camera's sleek plastic casing, with dimensions of φ85.4mm × 70.2mm (φ3.36″ × 2.76″), is both aesthetically pleasing and durable. With a net weight of 0.13 Kg (0.29 lb), it is lightweight yet sturdy. The IP50 protection grade ensures resistance against dust and limited protection against water, adding to its durability.In summary, the Dahua HAC-HDW1200R 2MP HDCVI IR Eyeball Camera is a high-performance surveillance solution that combines advanced technology, robust design, and versatile features to meet the demanding requirements of modern security applications. Whether used in residential or commercial settings, this camera is a reliable choice for those seeking top-notch surveillance capabilities.
Features
- High-Resolution Imaging: Equipped with a 1/2.7 inch CMOS image sensor, the camera delivers a high resolution of 1920(H)×1080(V), providing clear and detailed images for effective surveillance.
- Low-Light Performance: With a minimum illumination of 0.02Lux/F1.9, the camera excels in low-light conditions, ensuring that it can capture detailed footage even in challenging lighting environments.
- Infrared Night Vision: The camera features 12 IR LEDs with a working distance of 20 meters (65.6 ft), enabling it to capture clear images in complete darkness. The IR On/Off control can be set to auto or manual mode for flexible operation.
- Versatile Lens Options: The fixed-focal lens comes with two options, 2.8mm and 3.6mm, offering flexibility in choosing the field of view based on surveillance needs.
- Wide Field of View: The camera provides a wide field of view, with the 2.8mm lens offering a diagonal view of 119° and the 3.6mm lens providing a diagonal view of 100°. This ensures comprehensive coverage of the surveillance area.
- Multiple Video Formats: The camera supports various video formats, including CVI, AHD, TVI, and CVBS, with frame rates of up to 1080P@25/30fps. This versatility makes it compatible with different surveillance systems.
- Day/Night Auto Switching: The camera seamlessly transitions between day and night modes with the Auto switch by ICR (Infrared Cut Filter), ensuring optimal image quality in different lighting conditions.
- Advanced Image Enhancement: Features like BLC (Backlight Compensation), HLC (Highlight Compensation), DWDR (Digital Wide Dynamic Range), and 2D NR (Noise Reduction) contribute to improved image quality and clarity.
- Environmental Durability: Built to withstand harsh conditions, the camera operates in a wide temperature range from -40°C to +60°C (-40°F to 140°F). The IP50 protection grade provides resistance against dust, enhancing the camera's durability.
- Certifications: The camera meets industry certifications such as CE, FCC, and UL, attesting to its compliance with international standards for quality and safety.
- User-Friendly Settings: The camera features settings like Smart IR, Electronic Defog, Mirror, and Privacy Masking, providing users with options to customize and optimize the camera's performance based on specific surveillance requirements.
- Compact and Lightweight Design: The camera's plastic casing has a sleek design with dimensions of φ85.4mm × 70.2mm (φ3.36″ × 2.76″), making it easy to install and aesthetically pleasing.
In summary, the Dahua HAC-HDW1200R 2MP HDCVI IR Eyeball Camera combines advanced imaging technology with user-friendly features, making it a reliable choice for a wide range of surveillance applications.
