Specification
| General |
| Functions |
Print Only |
| Printer Type |
12 Colour, 60“ / 1,524 mm |
| Output Color |
Color |
| Print |
| Technology |
Ink |
| Print Speed |
Heavyweight Coated Paper HG (A0): 2 min 49 sec
Glossy Photo Paper HG (A0): 5 min 35 sec |
| Print Resolution |
2400 x 1200dpi |
| Duplex |
Manual |
| Paper Information |
| Paper Type |
Roll Paper: Front Load, Front Output
One Roll, Front Load, Front Output (Default)
Cut Sheet: Front Load, Front Output
(Manual Feed using Media Locking Lever) |
| Paper Weight |
Media Width (Roll / Cut Sheet): 152.4 ~ 1,524 mm
Media Thickness (Roll / Cut Sheet): 0.07 ~ 0.8 mm
Minimum Printable Length
Roll Paper:
101.6 mm (exclude Cloth and Canvas media)
Cut Sheet: 203.2 mm
Maximum Printable Length
Roll Paper:
18 m (varies according to OS and application)
Cut Sheet: 1.6 m
Borderless Printing Width (Roll Only)
Recommended:
515 mm (B2), 728 mm (B1), 1,030 mm (B0), 594 mm (A1), 841 mm (A0), 10", 14", 17", 24", 36", 42“, 44”
Printable:
257 mm (B4), 297 mm (A3), 329 mm (A3+), 420 mm (A2), 6", 8", 12", 16", 18”, 20", 22", 30", 34”,
300 mm, 500 mm, 600 mm, 800 mm, 1,000 mm
Other than above, free size borderless printing is supported on only roll paper by user definition. |
| ADF |
No |
| Technical Specs |
| Memory |
Standard: 3GB
Hard Disk: 500 GB (Encrypted) |
| Connectivity |
USB, LAN, Wi-Fi |
| Power Consumption |
Printing: 85 W or less
Sleep Mode: 1.7 W or
Power Off: 0.1 W or less
Power Supply: AC 100 - 240 V, 50 - 60 Hz |
| Physical Specs |
| Color |
Black |
| Dimension |
Main Unit:
1,999 × 734 × 628 mm
Approx. 124 kg
Main Unit + Roll Unit + Stand + Basket:
1,999 × 984 × 1,168 mm (Basket Opened)
1,999 × 766 × 1,168 mm (Basket Closed)
Approx. 171 kg |
| Weight |
Main Unit + Pallet:
2,227 x 915 x 1,025 mm
222 kg
Roll Unit:
2,133 x 562 x 461 mm
42 kg |
| Warranty Information |
| Warranty |
1-year Limited warranty, an Adapter/Power Cable with no warranty, and also a Box Mandatory While Claiming. |

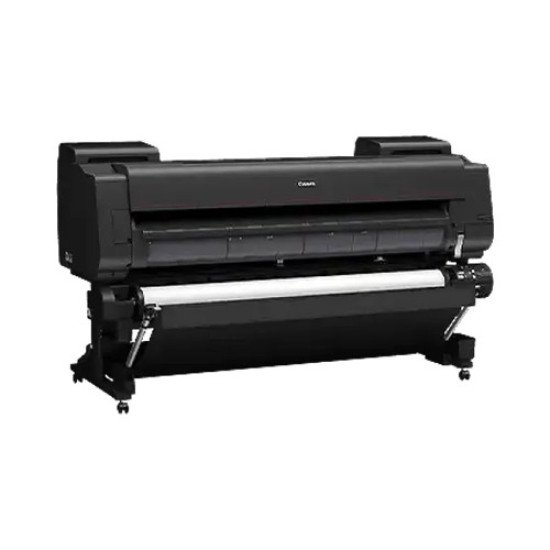

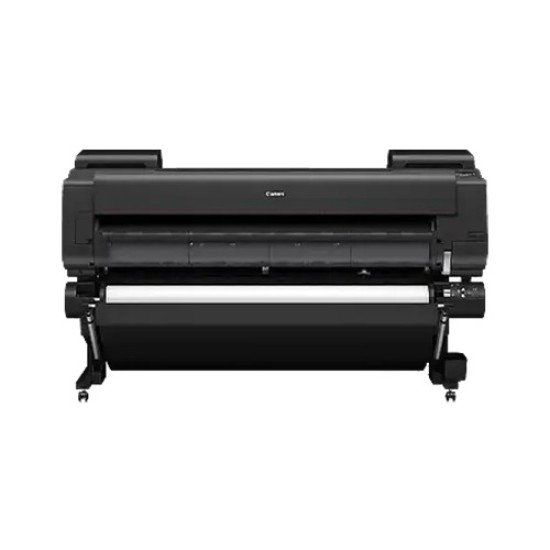

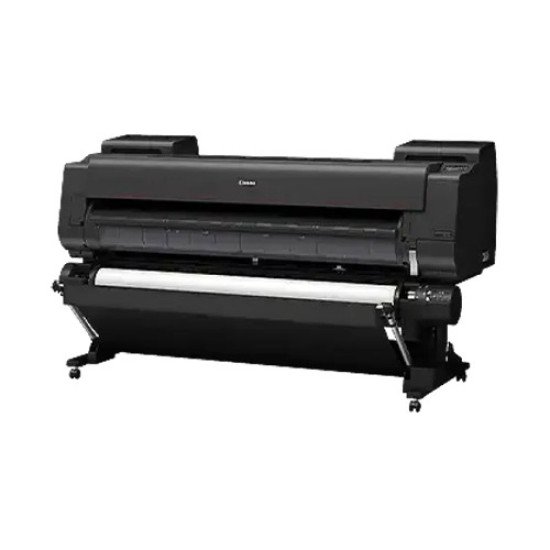

Canon imagePROGRAF PRO-566 60-inch Single Function Large Format Printer
Canon imagePROGRAF PRO-566 60-inch Single Function Large Format Printer, a state-of-the-art printing solution designed for professionals who demand the highest quality in large-format prints. This printer is ideal for photographers, graphic designers, and artists looking to create stunning visuals with exceptional detail and vibrant colours.
Equipped with a 12-colour ink system, the PRO-566 delivers a remarkable print resolution of 2400 x 1200 dpi, ensuring that every print captures the richness and depth of your original images. It achieves a print speed of 2 minutes and 49 seconds for heavyweight coated paper and 5 minutes and 35 seconds for glossy photo paper in A0 size, making it efficient for high-volume printing tasks.
The PRO-566 supports a wide range of media types, including roll paper and cut sheets, with a maximum paper size of 60 inches (1,524 mm) and media widths ranging from 152.4 mm to 1,524 mm. This versatility allows users to produce everything from technical drawings to high-quality photographic prints. The printer also features manual duplex printing, enabling efficient double-sided printing when required.
With 3GB of standard memory and a 500GB encrypted hard disk, the PRO-566 ensures smooth processing of large files. Connectivity options include USB, LAN, and Wi-Fi, allowing for seamless integration into any office environment. Additionally, mobile printing capabilities enable users to print directly from their smartphones and tablets, enhancing convenience and flexibility.
Designed with a sleek black exterior, the PRO-566 has a robust footprint, measuring 1,999 x 734 x 628 mm and weighing approximately 124 kg.
Backed by a one-year limited warranty, the Canon imagePROGRAF PRO-566 is a reliable and high-performance printer that meets the demands of professionals seeking quality and efficiency in large-format printing. Elevate your printing capabilities with this exceptional device, designed to deliver outstanding results every time.
Buying Guideline of Canon imagePROGRAF PRO-566 60-inch Single Function Large Format Printer
The Canon imagePROGRAF PRO-566 60-inch Large Format Printer is designed for professionals who need exceptional color accuracy, ultra-high-resolution prints, and consistent performance for photography, fine art, banners, or commercial prints. Before purchasing, it’s important to understand its technical capabilities, workspace requirements, and operational needs to ensure it fits perfectly into your production environment.
Buying Guideline
-
Determine Your Printing Volume & Purpose
Consider whether you need the printer for photography, fine art, signage, or commercial production. The PRO-566 is ideal for high-volume, professional-grade applications.
-
Check Print Size Requirements
With a 60-inch print width, ensure that this large format aligns with your project needs and that you won’t require additional print sizes or specialized output formats.
-
Evaluate Print Quality Expectations
This model features advanced Canon print technology for exceptional color accuracy and image detail—perfect for color-critical work.
-
Assess Workspace & Installation Needs
Large-format printers require adequate space for installation, operation, and maintenance. Ensure you have enough room for media loading and airflow.
-
Check Media Compatibility
Verify that the paper types and roll media you plan to use (glossy, matte, art paper, vinyl, etc.) are fully supported by the PRO-566.
-
Estimate Operational Costs
Consider ink consumption, printhead maintenance, and media costs. Professional large-format printers generally require a consistent operating budget.
-
Connectivity & Workflow Integration
Ensure the printer supports your workflow—USB, network connectivity, software compatibility, and color management requirements should match your existing setup.
-
After-Sales Support & Warranty
Canon provides strong support for professional printers. Confirm warranty coverage and availability of authorized service centers in your region.
