| Basic Information | ||
| Supported CPU | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors | |
| Chipset | A520 | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | microATX 24.4cm x 24.4cm | |
| Audio | Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers *A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |
| Type | DDR4 | |
| Memory Specifications | ||
| Maximum Memory | 128GB | |
| Slots | 4 x DIMM | |
| Supported Memory | 4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory Dual Channel Memory Architecture | |
| Expansion Slots | ||
| PCI | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 slots | |
| Motherboard | ||
| Supported Storage | AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD A520 Chipset: 4 x SATA 6Gb/s ports Support RAID 0, 1, 10 | |
| Graphics | ||
| Graphics | 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60Hz) 1 x D-Sub | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| Display Port (s) | 1 x DisplayPort | |
| USB (s) | 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports | |
| LAN Port (s) | 1 x Realtek 1Gb Ethernet TUF LANGuard | |
| Audio | 3 x Audio jacks | |
| Internal I/O Ports | Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header | |
| D-Sub (s) | 1 x D-Sub | |
| Others Information | ||
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 2+ - EZ update - PC Cleaner - System Information TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode | |
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - ASUS Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

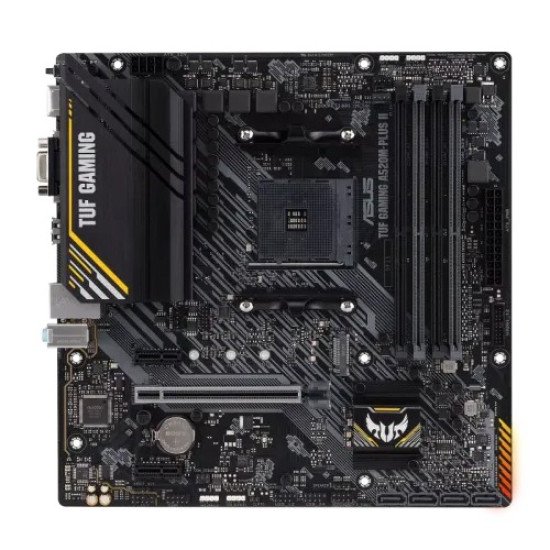

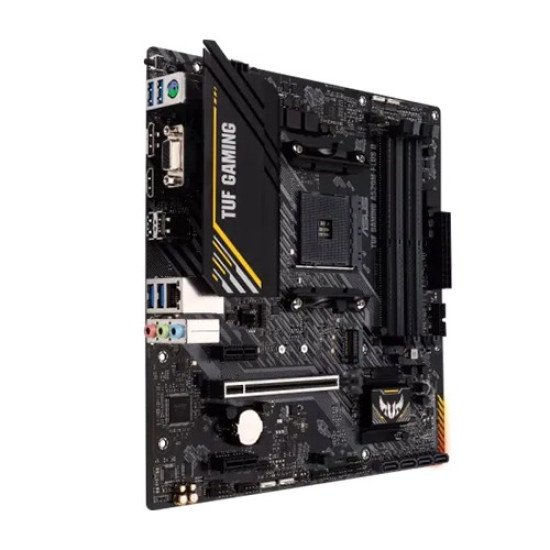

The ASUS TUF GAMING A520M-PLUS II is a robust and feature-packed microATX motherboard designed for gamers and PC enthusiasts seeking reliability, performance, and future-proofing on an AMD platform. Supporting AMD Ryzen 3000, 4000 G-Series, and 5000 Series desktop processors, this motherboard leverages the A520 chipset, providing a stable foundation for high-performance computing and gaming setups. Built with durability in mind, the TUF GAMING A520M-PLUS II features TUF Protection, including DIGI+ VRM, ESD Guards, SafeSlot Core+, overvoltage protection, and a stainless-steel back I/O for enhanced longevity. Its thermal design incorporates efficient VRM heatsinks, ensuring optimal cooling under heavy workloads, while two 4-pin chassis fan headers and a CPU fan header enable precise thermal management. The motherboard supports dual-channel DDR4 memory up to 128GB, with speeds up to 4866 MHz (OC), offering flexibility for high-speed memory configurations. Expansion options include one PCIe 3.0 x16 slot for discrete graphics and two PCIe 3.0 x1 slots for additional peripherals, catering to both gaming and productivity needs. For storage, the motherboard provides one M.2 slot supporting PCIe 3.0 x4 and SATA modes and four SATA 6Gb/s ports, along with RAID 0, 1, and 10 support for data redundancy and performance. Connectivity is extensive, featuring DisplayPort, HDMI 2.1 (4K@60Hz), D-Sub, four USB 3.2 Gen 1 ports, two USB 2.0 ports, Realtek 1Gb Ethernet with TUF LANGuard, and internal headers for additional USB ports and RGB lighting. Audio is powered by Realtek ALC887/897 7.1 Surround Sound, enhanced with audio shielding, premium Japanese capacitors, and dedicated PCB layers for immersive, high-definition sound. The motherboard also includes AURA Sync RGB headers, BIOS FlashBack, and a suite of ASUS utilities such as Armoury Crate, AI Suite 3, Fan Xpert 2+, and Turbo LAN, providing full system customization, monitoring, and optimization. With a 3-year warranty, the ASUS TUF GAMING A520M-PLUS II combines reliability, performance, and expandability, making it an excellent choice for gamers, PC builders, and enthusiasts who demand durable, high-quality components.
The latest price of Asus TUF GAMING A520M-PLUS II Motherboard in Bangladesh is 12,400৳ You can buy the Asus TUF GAMING A520M-PLUS II Motherboard at best price from our Website or visit any of our showrooms.
