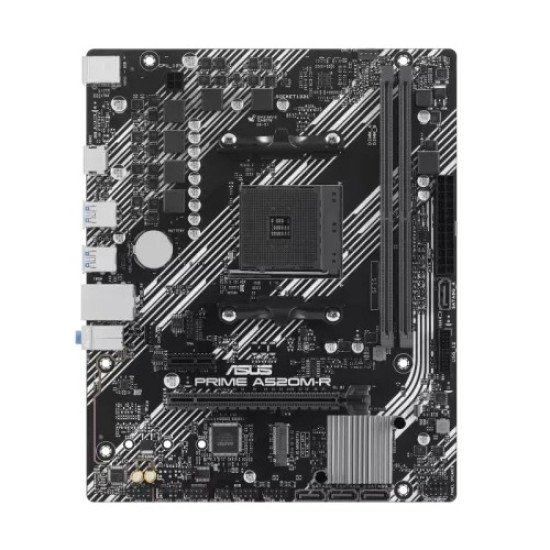

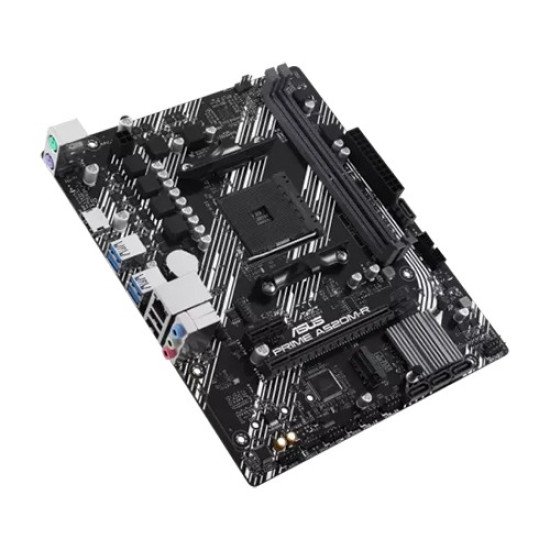

Asus PRIME A520M-R Motherboard

Name: Asus PRIME A520M-R Motherboard
Brand: Asus
Price: 8500.00 BDT
Availability: OutOfStock

Save: 400৳ In Stock

Asus PRIME A520M-R Motherboard

Stock: In Stock
Brand: Asus
Model: PRIME A520M-R

Based on 0 reviews. - Write a review

8,500৳

8,900৳

Ex Tax: 8,500৳

Qty

Buy Now

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Key Features

Supported RAM: 2 x DIMM ,Max 64GB, Up to 5100(OC)
Features: 1 x M.2, 4 x SATA 6Gb/s ports
Output: 1 x HDMI
CPU: AMD AM4 Socket for AMD Ryzen 5000 / 4000 / 3000 Series

View more details

Basic Information
Supported CPU	AMD Socket AM4 for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
Chipset	A520
BIOS	128 Mb Flash ROM, UEFI AMI BIOS

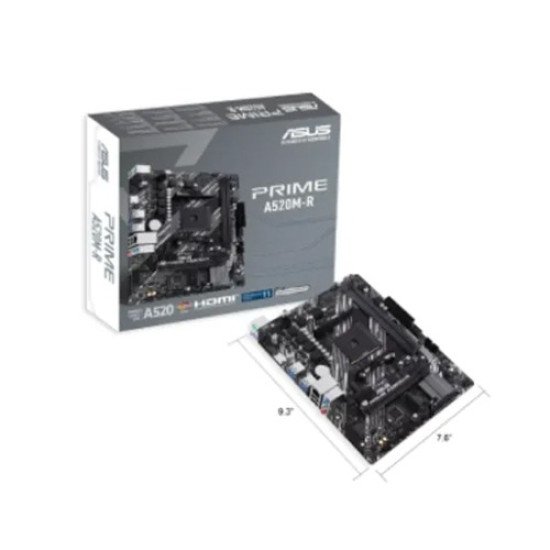

Form Factor	micro-ATX Form Factor 9.3 inch x 7.6 inch ( 23.6 cm x 19.3 cm )
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features: - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Type	DDR4
Memory Specifications
Maximum Memory	64GB
Slots	2 x DIMM
Supported Memory	DDR4 5100(OC)/ 4866(OC)/ 4666(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133, Un-buffered Memory* Dual channel memory architecture * ECC memory (ECC mode) support varies by CPU
Expansion Slots
PCI	AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD A520 Chipset 1 x PCIe 3.0 x1 slot
Motherboard
Supported Storage	1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
Graphics
Graphics	1 x HDMI port** * Graphics specifications may vary between CPU types
Connector & Ports
HDMI	1 x HDMI

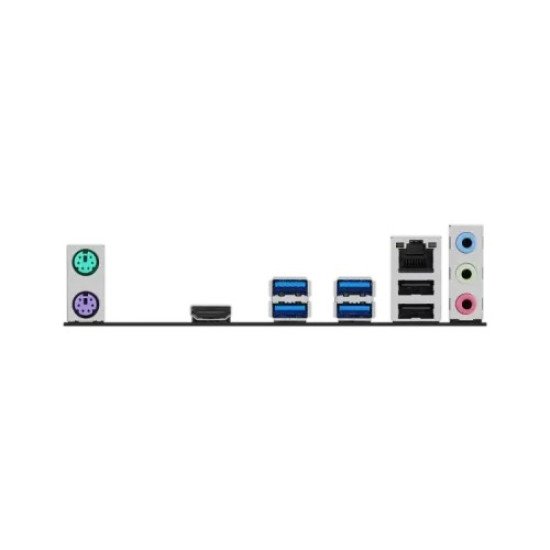

USB (s)	Rear USB (Total 6 ports) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)	1 x Realtek 1Gb Ethernet ASUS LANGuard
Internal I/O Ports	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power Related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage Related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
Others Information
Bundled Software	ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert - EZ update - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core - Stainless-steel back I/O ASUS Q-Designc - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design
Warranty Information
Manufacturing Warranty	03-Year Warranty

Asus PRIME A520M-R Motherboard

The ASUS PRIME A520M-R is a feature-rich micro-ATX motherboard designed for AMD Ryzen desktop processors, delivering reliable performance for both everyday computing and light gaming setups. Built on the AMD A520 chipset, it supports a wide range of AMD CPUs, including Ryzen 5000, 4000 G-Series, and 3000 Series processors, providing flexibility for system builders and upgraders. Its compact micro-ATX form factor (9.3 x 7.6 inches) makes it ideal for space-conscious builds without compromising functionality. Memory performance is robust with dual-channel DDR4 support, accommodating up to 64GB across two DIMM slots. It supports a wide range of memory speeds, including high-frequency overclocked modules, allowing enthusiasts to fine-tune performance. For graphics, it offers an HDMI port for integrated GPU output, making it suitable for systems without a dedicated graphics card, though discrete GPUs can also be installed via the PCIe 3.0 x16 slot. Additional expansion options include a PCIe 3.0 x1 slot and a single M.2 slot, compatible with PCIe and SATA SSDs, along with four SATA 6Gb/s ports for traditional storage. The motherboard emphasizes high-quality audio with Realtek 7.1 Surround Sound HD Audio, enhanced by premium audio capacitors, shielding, and dedicated PCB layers. Connectivity is comprehensive, featuring USB 5Gbps and USB 2.0 ports on both front and rear panels, a 1Gb Ethernet port with ASUS LANGuard for network protection, and multiple internal headers for fans, USB, audio, and TPM modules. Reliability and safety are ensured through ASUS 5X Protection III, including DIGI+ VRM, overvoltage protection, SafeSlot Core, and a stainless-steel back I/O. User-friendly features like Q-DIMM, Q-Slot, Q-LED Core, and EZ Flash 3 BIOS enhance system assembly and maintenance. ASUS’s exclusive software suite, including Armoury Crate, AI Suite 3, Fan Xpert, and TurboV EVO, offers easy performance tuning and monitoring. Backed by a three-year warranty, the ASUS PRIME A520M-R combines compact design, robust performance, and intelligent features, making it an excellent choice for reliable, versatile, and cost-effective desktop builds.

Features of Asus PRIME A520M-R Motherboard

Supports AMD AM4 socket processors: Ryzen 5000 / 4000 G-Series / 3000 Series.
Expansion slots: 1 PCIe 3.0 x16 (SafeSlot) and 1 PCIe 3.0 x1.
USB: 3.2 Gen1 (5Gbps) and USB 2.0 ports, front and rear.
ASUS 5X Protection III: DIGI+ VRM, SafeSlot Core, overvoltage protection, stainless steel back I/O.
User-friendly features: Q-DIMM, Q-Slot, Q-LED, EZ Flash 3 BIOS.
Software utilities: Armoury Crate, AI Suite 3, Fan Xpert, TurboV EVO.

What is the Asus PRIME A520M-R Motherboard price in bd 2026?

The Asus PRIME A520M-R Component price in BD is 8,500৳. In today's market on 14-01-2026. Tech Valley Distributions Ltd. offers you the lowest price of Asus PRIME A520M-R Component: 8,500৳ instead of 8,900৳ regular price. The Asus PRIME A520M-R Component is In Stock now in our store (Call us to know about details of this product). 5 customer buy this product From 1130 visitors. Follow us on Facebook to stay updated with the latest offers. Subscribe our YouTube channel for product reviews. You can Order Asus PRIME A520M-R online, pay with online payment gateway or Cash on delivery (in Dhaka city) and get 2-3 day Express delivery anywhere in Bangladesh or visit our Showroom for more gift.
