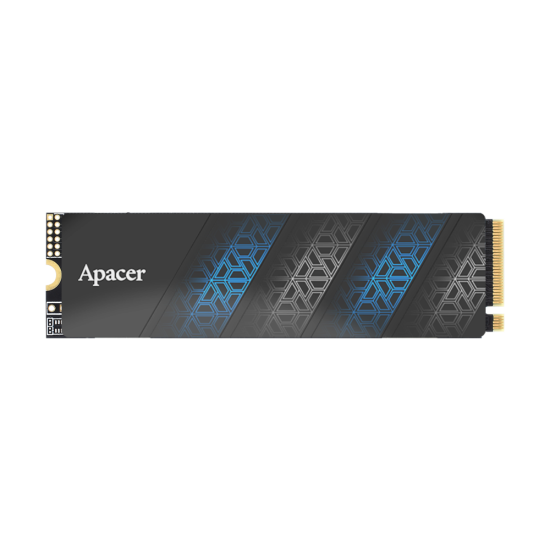

Apacer AS2280P4 512GB M.2 2280 PCIe SSD

General

Brand

Apacer

Model

Apacer AS2280P4

Type

Internal SSD

Part No

AP512GAS2280P4-1

Storage & Interface

Storage

512GB

Interface Mode

NVMe

Interface(s)

PCIe Gen3 x4

PCIe/NVMe Generation

Gen3

Flash Type

3D TLC NAND

Performance

Read Speed (Max.)

3000MB/s

Write Speed (Max.)

2000MB/s

Random Read IOPS

300K

Random Write IOPS

420K

Main Features

Shock Sensor

Yes

Shock Resistance

1500G/0.5msec

Shockproof

Yes

Vibration Resistance

Yes

TRIM Support

Yes

S.M.A.R.T Support

Yes

ECC Support

Up to 72bit/1KB

MTBF

1,500,000 hours

Technical Info

Operating Voltage

3.3 V

Approx. Power Consumption

15W

OS Compatibility

Windows 11/ 10

Physical Description

Form Factor (Inch)

M.2 2280

Color

Blue

Dimensions

80 x 22 x 2.38 mm

Weight

6.80 gm

Warranty

Warranty Details

3 year

Additional Info

Others

4000 mW (Active mode), 70mW (Power State), Vibration: 7 - 800Hz, 3.08Grms, Operating Temperature: 0 degree C - 70 degree C, Storage: -40 degree C - 85 degree C, Supply Voltage: 3.3 V +- 5%, Connector Type: 75-pin M.2 module pinout, Frequency: 20Hz - 80Hz, Certificate: KCC, CE, FCC, VCCI, RCM, BSMI

Specialty

The AS2280P4 SSD has built-in protection technology to ensure data integrity and stability, It is definitely the top choice for ultra-thin Laptops, e-sports consoles, and mini-PCs.

Country Of Origin

Taiwan

Made in/ Assemble

Taiwan
