| Manufacturer |
Hikvision |
| Category |
CCTV > Digital video recorders (DVRs) |
| Model code |
DS-7208HQHI-K2/P |
| Series |
DS-7200HQHI-K/P SERIES |
| Channels |
8 channels |
| Hybrid IP inputs |
8 |
| Recording Mode |
Real Time / Timelapse / Event recording |
| Inbuilt Multiplexer |
Yes |
| Storage Capacity GB |
10,000 GB storage |
| Image per second (IPS) |
12 fps storage rate |
| Compression Type |
H.265 Pro+, H.265 Pro, H.265, H.264+, H.264 |
| Resolution |
1920 × 1080 resolution |
| Signal Mode |
PAL / NTSC |
| External Storage |
USB |
| Audio Recording and Properties |
G.711u |
| Recording System |
HDD |
| Type of Multiplexer Functions |
Simultaneous Live, Recording, Playback, Archive |
| IP Storage rate (fps) |
12 ~ 25 fps |
| Physical Specifications |
Dimensions (mm): 380 x 320 x 48
Weight (kg): 1.78
|
| Electrical Specifications |
Voltage: 48 V DC
Power Consumption: 60 W
|
| Environmental Specifications |
Operating Temp (°C): -10 ~ +55 C (14 ~ 131 F)
Operating Humidity (%): 10 ~ 90
|
| Additional info |
- Self-adaptive normal camera and Hikvision PoC camera connection
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
- Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
- Connectable to H.265+/H.265/H.264+/H.264 IP cameras
- Up to 4 MP lite resolution for recording
|

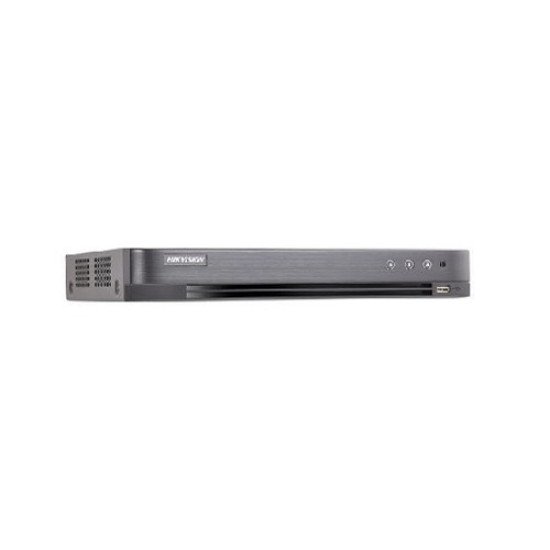

Hikvision DS-7208HQHI-K2/P 8 channel Turbo HD DVR
The Hikvision DS-7208HQHI-K2/P 8-channel Turbo HD DVR stands out as a robust and advanced surveillance solution, seamlessly combining cutting-edge technology with user-friendly features. Designed by Hikvision, a renowned leader in the security and surveillance industry, this DVR caters to the needs of both residential and commercial settings. With its 8-channel capacity, the DS-7208HQHI-K2/P provides versatile support for various surveillance configurations, accommodating up to eight cameras simultaneously. The Turbo HD technology ensures high-definition video recording at resolutions up to 1080p, delivering clear and detailed footage for accurate monitoring. The DVR supports H.265+ video compression, optimizing storage efficiency without compromising on video quality. This feature allows users to store more footage while minimizing the overall storage requirements. The H.265+ compression technology is particularly beneficial for large-scale surveillance systems where storage management is critical. Equipped with multiple video output options, including HDMI and VGA, the DS-7208HQHI-K2/P offers flexible display configurations, supporting resolutions of up to 4K for an enhanced viewing experience. The dual-stream capability enables users to manage bandwidth efficiently by streaming at different resolutions and frame rates.
The DVR includes advanced audio features, with support for one-channel audio input and output, utilizing the G.711u compression standard. This allows for synchronized audio recording, enhancing the overall surveillance capabilities. Network connectivity is a key strength of the DS-7208HQHI-K2/P, supporting a range of protocols such as TCP/IP, PPPoE, DHCP, and more. The Hik-Connect platform facilitates remote access, enabling users to monitor their premises from anywhere using smartphones or computers. With compatibility for various camera models, including Hikvision's Turbo HD cameras, the DVR ensures seamless integration into existing surveillance setups. Reliability is further emphasized with the inclusion of a 2 SATA interface supporting up to 16TB of storage, accommodating the demands of continuous recording. The DVR's sturdy construction, coupled with a sleek design, reflects Hikvision's commitment to quality and innovation, making the DS-7208HQHI-K2/P an ideal choice for those seeking a dependable and feature-rich surveillance solution.
