| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors<br> L3 cache varies with CPU<br> | |
| Chipset | Intel Z690 Express Chipset | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0<br> | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek ALC1220-VB CODEC<br> * The back panel line out jack supports DSD audio. High Definition Audio<br> 2-channel analog output<br> Support for S/PDIF Out<br> 7.1-channel digital signals<br> | |
| Memory Specifications | ||
| Type | DDR4 | |
| Slots | 4 x DIMM | |
| Supported Memory | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules Dual channel memory architecture<br> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for Extreme Memory Profile (XMP) memory modules<br> | |
| Max. Memory | Up to 128 GB (32 GB single DIMM capacity) | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16)<br> * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.<br> (The PCIEX16 slot conforms to PCI Express 5.0 standard.)<br> 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)<br> (The PCIEX4 slots conform to PCI Express 3.0 standard.)<br> | |
| M.2 Socket | 4 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support:<br> 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> * Support for HDMI 2.1 version and HDCP 2.3.<br> ** Support native HDMI 2.1 TMDS compatible ports.<br> 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz<br> * Support for DisplayPort 1.2 version and HDCP 2.3<br> Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies<br> | |
| Connector & Ports | ||
| USB (s) | Chipset:<br> 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support<br> 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header<br> 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel<br> 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)<br> Chipset+2 USB 2.0 Hubs:<br> 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)<br> | |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | CPU:<br> 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) <br>(M2A_CPU)<br> Chipset:<br> 2 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) <br>(M2P_SB, M2Q_SB)<br> 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)<br> 6 x SATA 6Gb/s connectors<br> Support for RAID 0, RAID 1, RAID 5, and RAID 10<br> * Refer to "2-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.<br> <br> Intel Optane Memory Ready<br> * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.<br> | |
| Audio | 1 x front panel audio header | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x 4-pin ATX 12V power connector<br> 1 x CPU fan header<br> 1 x water cooling CPU fan header<br> 3 x system fan headers<br> 1 x system fan/water cooling pump header<br> 2 x addressable LED strip headers<br> 2 x RGB LED strip headers<br> 4 x M.2 Socket 3 connectors<br> 6 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C header, with USB 3.2 Gen 2 support<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 2 x Thunderbolt add-in card connectors<br> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button<br> 1 x reset jumper<br> 1 x Q-Flash Plus button<br> 1 x Clear CMOS jumper<br> | |
| Others Information | ||
| Special Features | Support for APP Center<br> * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.<br> @BIOS<br> EasyTune<br> Fast Boot<br> Game Boost<br> ON/OFF Charge<br> RGB Fusion<br> Smart Backup<br> System Information Viewer<br> Support for Q-Flash Plus<br> Support for Q-Flash<br> Support for Xpress Install<br> | |
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

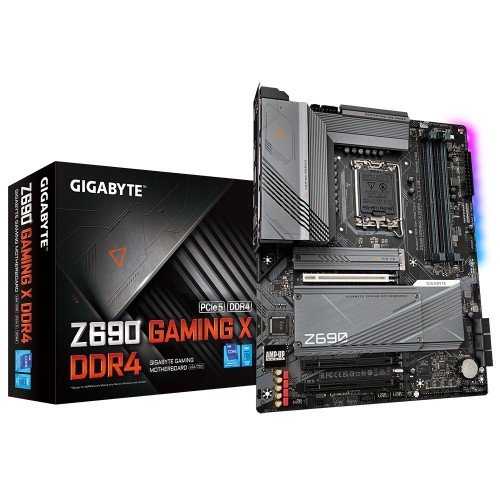

The Gigabyte Z690 GAMING X DDR4 12th Gen ATX Motherboard is a cutting-edge motherboard designed to provide exceptional performance and features for gaming enthusiasts and PC builders. Built around the Intel Z690 Express Chipset and LGA1700 socket, this motherboard supports the latest 12th Generation Intel Core i9, i7, and i5 processors, delivering a potent foundation for high-performance computing. The motherboard boasts an impressive memory configuration, featuring four DIMM slots that support DDR4 memory with speeds ranging from 2133 MHz to an overclocked 5333 MHz (O.C.). The dual-channel memory architecture can accommodate up to 128 GB of system memory, catering to the demands of memory-intensive applications and gaming experiences. Support for ECC Un-buffered DIMM modules in non-ECC mode and Extreme Memory Profile (XMP) ensures flexibility and optimization for various user preferences. In terms of expansion, the Z690 GAMING X offers robust options with a PCI Express x16 slot running at x16 (PCIEX16) conforming to the PCI Express 5.0 standard. Additional PCI Express x16 slots (PCIEX4_1, PCIEX4_2) running at x4 adhere to the PCI Express 3.0 standard. The motherboard also integrates four Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 slots with enlarged thermal guards, catering to users looking to leverage high-speed storage solutions. For graphics, the motherboard features integrated graphics support with Intel HD Graphics, providing an HDMI port and a DisplayPort with support for resolutions up to 4096x2160@60 Hz and 4096x2304@60 Hz, respectively. The inclusion of AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies enhances the gaming potential by allowing multiple graphics cards to work in tandem. Connectivity options are extensive, with USB Type-C ports, USB 3.2 Gen 2x2 support, and a Realtek 2.5GbE LAN chip ensuring high-speed data transfer and reliable networking capabilities. The audio experience is driven by the Realtek ALC1220-VB CODEC, supporting DSD audio and delivering 7.1-channel digital signals.
The Gigabyte Z690 GAMING X DDR4 12th Gen ATX Motherboard is engineered to deliver next-level performance, stability, and expandability for modern gaming and professional workloads. With cutting-edge chipset support and premium components, it ensures a smooth, future-ready PC building experience.
Intel Z690 Chipset & LGA1700 Socket – Fully supports 12th Gen Intel Core i9, i7, and i5 processors for high-performance computing.
DDR4 Memory Support up to 5333MHz (O.C.) – Four DIMM slots with dual-channel architecture, supporting up to 128GB RAM with XMP profiles.
PCIe 5.0 Graphics Slot – Next-generation PCI Express 5.0 x16 slot for maximum GPU bandwidth and future GPU compatibility.
Quad M.2 NVMe Storage Support – Four PCIe 4.0/3.0 x4 M.2 slots with advanced thermal guards for ultra-fast and stable storage performance.
Advanced Thermal Design – Enlarged VRM heatsinks and M.2 thermal protection ensure efficient heat dissipation during heavy usage.
High-Speed Connectivity – USB Type-C, USB 3.2 Gen 2x2, and Realtek 2.5GbE LAN for fast data transfer and reliable networking.
Premium Audio Experience – Realtek ALC1220-VB audio codec with 7.1-channel HD audio and DSD support for immersive sound quality.
Upgrade your PC with power, speed, and reliability—build your next high-performance gaming or productivity system with the Gigabyte Z690 GAMING X DDR4 today. This product belongs to the Motherboard category under GIGABYTE (Intel) solutions, making it an excellent choice for Intel-based builds. Get the best performance, authentic products, and trusted service when you purchase from Tech Valley, your reliable destination for premium PC components.
The latest price of Gigabyte Z690 GAMING X DDR4 12th Gen ATX Motherboard in Bangladesh is 27,000৳ You can buy the Gigabyte Z690 GAMING X DDR4 12th Gen ATX Motherboard at best price from our Website or visit any of our showrooms.
