| Key Features | ||
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors<br> L3 cache varies with CPU | |
| Memory Specifications | ||
| Type | DDR5 | |
| Slots | 4 x DDR DIMM | |
| Supported Memory | DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules<br> Dual channel memory architecture<br> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for Extreme Memory Profile (XMP) memory modules | |
| Max. Memory | up to 128 GB (32 GB single DIMM capacity) | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)<br> * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.<br> 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) | |
| Chipset | ||
| Chipset | Intel® B760 Express Chipset | |
| Input Devices | ||
| Expansion Slot | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)<br> 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) | |
| Motherboard | ||
| Audio | Realtek® Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x 4-pin ATX 12V power connector<br> 1 x CPU fan header<br> 3 x system fan headers<br> 2 x addressable LED strip headers<br> 2 x RGB LED strip headers<br> 2 x M.2 Socket 3 connectors<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C® header, with USB 3.2 Gen 2 support<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 2 x Thunderbolt™ add-in card connectors<br> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)<br> 1 x Q-Flash Plus button<br> 1 x reset button<br> 1 x reset jumper<br> 1 x Clear CMOS jumper | |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)<br> 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)<br> 4 x SATA 6Gb/s connectors | |
| Graphics | ||
| Graphics | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> * Support for HDMI 2.0 version and HDCP 2.3.<br> 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz<br> * Support for DisplayPort 1.2 version and HDCP 2.3 | |
| Connector & Ports | ||
| USB (s) | Chipset:<br> 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support<br> 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header<br> 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel<br> 1 x USB 3.2 Gen 1 port on the back panel<br> 4 x USB 2.0/1.1 ports available through the internal USB headers<br> Chipset+USB 3.2 Gen 1 Hub:<br> 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)<br> Chipset+USB 2.0 Hub:<br> 4 x USB 2.0/1.1 ports on the back panel | |
| Wireless Communication module | WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands<br> BLUETOOTH 5.3<br> Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
| Software | ||
| Operating System | Support for Windows 11 64-bit<br> Support for Windows 10 64-bit | |

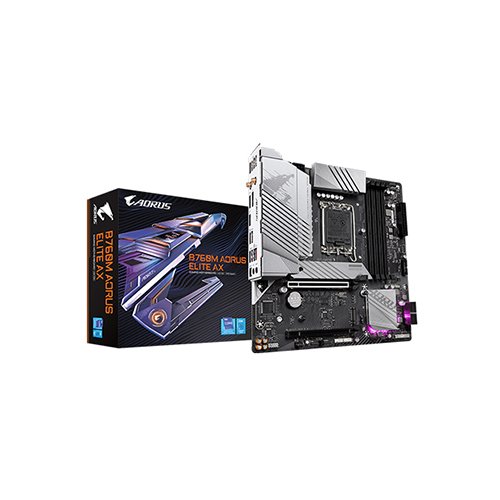

The Gigabyte B760M AORUS ELITE AX 13th and 12th Gen Motherboard is a high-performance Micro-ATX motherboard designed to support the latest 13th and 12th Gen Intel Core processors on the LGA 1700 socket. Built with the advanced Intel B760 chipset, this motherboard delivers outstanding stability, speed, and efficiency for gamers, content creators, and PC enthusiasts. It supports DDR5 memory technology, enabling faster data transfer rates and improved multitasking performance, making it ideal for demanding applications and modern gaming titles. The robust digital VRM design ensures stable power delivery, while advanced thermal solutions with enlarged heatsinks help maintain optimal temperatures during heavy workloads. This motherboard features PCIe 4.0 support for high-speed graphics cards and NVMe SSDs, allowing users to experience faster load times and smooth gameplay. With multiple M.2 slots equipped with thermal guards, storage performance remains consistent and reliable. The integrated Wi-Fi 6E and 2.5GbE LAN provide ultra-fast and stable networking for online gaming and streaming. Additionally, high-quality audio capacitors and advanced audio technology deliver immersive sound clarity. The sleek AORUS design with RGB Fusion support enhances the aesthetic appeal of any gaming setup. Overall, this motherboard offers a perfect balance of power, connectivity, and future-ready features for building a reliable and high-performance PC.
The Gigabyte B760M AORUS ELITE AX is engineered for performance, durability, and next-generation connectivity. It combines advanced power design, fast networking, and premium build quality to meet modern computing demands.
The latest price of Gigabyte B760M AORUS ELITE AX 13th and 12th Gen Motherboard in Bangladesh is 23,500৳ You can buy the Gigabyte B760M AORUS ELITE AX 13th and 12th Gen Motherboard at best price from our Website or visit any of our showrooms.
