| Motherboard | |
| Supported CPU | LGA1700 Socket: Support For The 13th And 12th Generation Intel® Core™, Pentium® Gold And Celeron® Processors* L3 Cache Varies With The CPU |
| Chipset | Intel® B760 Express Chipset |
| Memory | Support For DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/S Memory Modules 4 X DDR DIMM Sockets Supporting Up To 128 GB (32 GB Single DIMM Capacity) Of System Memory Dual Channel Memory Architecture Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode) Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics Support: 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz * Support For HDMI 2.0 Version And HDCP 2.3. 1 X DisplayPort, Supporting A Maximum Resolution Of 4096x2304@60 Hz * Support For DisplayPort 1.2 Version And HDCP 2.3 |
| Multi-GPU Support | Support For AMD CrossFireX™ Technology |
| Slots | CPU: 1 X PCI Express X16 Slot, Supporting PCIe 4.0 And Running At X16 (PCIEX16) * For Optimum Performance, If Only One PCI Express Graphics Card Is To Be Installed, Be Sure To Install It In The PCIEX16 Slot. Chipset: 1 X PCI Express X16 Slot, Supporting PCIe 4.0 And Running At X4 (PCIEX4) Support For AMD CrossFireX™ Technology |
| Supported Storage | CPU: 1 X M.2 Connector (Socket 3, M Key, Type 2280 PCIe 4.0 X4/X2 SSD Support) (M2A_CPU) Chipset: 1 X M.2 Connector (Socket 3, M Key, Type 22110/2280 PCIe 4.0 X4/X2 SSD Support) (M2P_SB) 4 X SATA 6Gb/S Connectors RAID 0, RAID 1, RAID 5, And RAID 10 Support For SATA Storage Devices |
| Bluetooth | 5.3 |
| LAN | Realtek® 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-Channel * You Can Change The Functionality Of An Audio Jack Using The Audio Software. To Configure 7.1-Channel Audio, Access The Audio Software For Audio Settings. Support For S/PDIF Out |
| USB Port | Chipset: 1 X USB Type-C® Port On The Back Panel, With USB 3.2 Gen 2x2 Support 1 X USB Type-C® Port With USB 3.2 Gen 2 Support, Available Through The Internal USB Header 1 X USB 3.2 Gen 2 Type-A Port (Red) On The Back Panel 1 X USB 3.2 Gen 1 Port On The Back Panel 4 X USB 2.0/1.1 Ports Available Through The Internal USB Headers Chipset+USB 3.2 Gen 1 Hub: 4 X USB 3.2 Gen 1 Ports (2 Ports On The Back Panel, 2 Ports Available Through The Internal USB Header) Chipset+USB 2.0 Hub: 4 X USB 2.0/1.1 Ports On The Back Panel |
| Internal I/O Ports | 1 X 24-Pin ATX Main Power Connector 1 X 8-Pin ATX 12V Power Connector 1 X 4-Pin ATX 12V Power Connector 1 X CPU Fan Header 3 X System Fan Headers 2 X Addressable LED Strip Headers 2 X RGB LED Strip Headers 2 X M.2 Socket 3 Connectors 4 X SATA 6Gb/S Connectors 1 X Front Panel Header 1 X Front Panel Audio Header 1 X USB Type-C® Header, With USB 3.2 Gen 2 Support 1 X USB 3.2 Gen 1 Header 2 X USB 2.0/1.1 Headers 2 X Thunderbolt™ Add-In Card Connectors 1 X Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only) 1 X Q-Flash Plus Button 1 X Reset Button 1 X Reset Jumper 1 X Clear CMOS Jumper |
| External I/O Ports | 2 X SMA Antenna Connectors (2T2R) 1 X USB Type-C® Port, With USB 3.2 Gen 2x2 Support 1 X USB 3.2 Gen 2 Type-A Port (Red) 3 X USB 3.2 Gen 1 Ports 4 X USB 2.0/1.1 Ports 1 X HDMI Port 1 X DisplayPort 1 X RJ-45 Port 1 X Optical S/PDIF Out Connector 2 X Audio Jacks |
| WiFi | Intel® Wi-Fi 6E AX211 WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands Support For 11ax 160MHz Wireless Standard And Up To 2.4 Gbps Data Rate |
| DIMENSIONS | 24.4cm X 24.4cm |
| Form Factor | Micro ATX |
| BIOS | 1 X 256 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5. |
| Special Features | Support For GIGABYTE Control Center (GCC) * Available Applications In GCC May Vary By Motherboard Model. Supported Functions Of Each Application May Also Vary Depending On Motherboard Specifications. Support For Q-Flash Support For Q-Flash Plus |
| Software Features | Bundled Software Norton® Internet Security (OEM Version) LAN Bandwidth Management Software |
| Others | I/O Controller ITE® I/O Controller Chip H/W Monitoring Voltage Detection Temperature Detection Fan Speed Detection Water Cooling Flow Rate Detection Fan Fail Warning Fan Speed Control |
| Warranty | 3 Years Warranty |

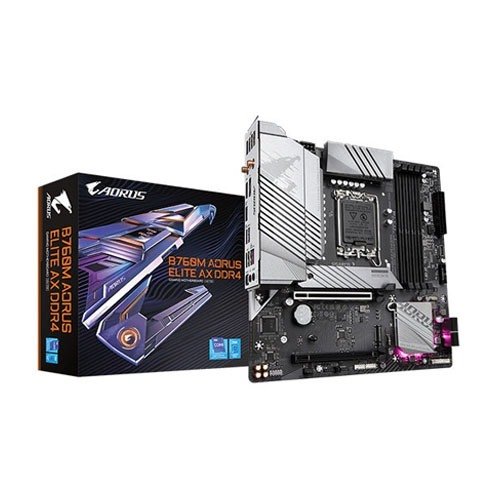

The GIGABYTE B760M AORUS ELITE AX DDR4 MICRO ATX MOTHERBOARD is a powerful and reliable solution designed for modern Intel-based gaming and productivity builds. Built on the advanced Intel B760 chipset, this motherboard supports 12th and 13th Gen Intel Core processors with the LGA 1700 socket, ensuring exceptional performance and future-ready compatibility. Its Micro ATX form factor makes it ideal for compact yet high-performance PC setups without compromising essential features. Supporting DDR4 memory, it allows users to take advantage of high-speed RAM while maintaining cost efficiency. With multiple DIMM slots and support for high-frequency memory, multitasking and gaming performance remain smooth and responsive. This motherboard is engineered with a robust digital VRM design to provide stable power delivery, ensuring consistent CPU performance even under heavy workloads. It features PCIe 4.0 support for faster graphics cards and high-speed NVMe SSDs, delivering improved bandwidth and reduced latency. The integrated Wi-Fi 6 and Bluetooth connectivity offer ultra-fast wireless networking and stable connections for gaming, streaming, and online collaboration. Advanced thermal solutions, including large heatsinks and optimized PCB design, keep temperatures under control during intensive tasks. Additionally, high-quality audio capacitors and advanced audio technology deliver immersive sound clarity for gaming and entertainment. With multiple USB ports, HDMI/DisplayPort output options, and comprehensive connectivity features, the GIGABYTE B760M AORUS ELITE AX DDR4 MICRO ATX MOTHERBOARD provides versatility, durability, and performance for gamers, creators, and PC enthusiasts looking to build a dependable and feature-rich system.
The motherboard is designed with premium components and advanced connectivity to deliver stable performance and modern features. It ensures smooth gaming, fast data transfer, and reliable system stability for everyday and professional use.
The latest price of GIGABYTE B760M AORUS ELITE AX DDR4 MICRO ATX MOTHERBOARD in Bangladesh is 25,500৳ You can buy the GIGABYTE B760M AORUS ELITE AX DDR4 MICRO ATX MOTHERBOARD at best price from our Website or visit any of our showrooms.
