| System |
| Operating System |
Linux system |
| Audio and Video |
| IP Camera Input |
16 Channel |
| Display |
| Interface |
HDMI1/VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI2: 4K (3840x2160)/60Hz, 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Resolution |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Decoding Capacity |
3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080p@30 |
| Recording |
| Resolution |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Video Detection And Alarm |
| Video Detection |
Face detection, Intrusion detection, Cross line detection, Object removal, Object abandonment, Audio detection, Defocus detection, Scene change detection, Auto tracking, Face search, Behavior search, People counting |
| Alarm Input |
16 Channel
Output: 4 Channel |
| Playback And Backup |
| Sync Playback |
16 Channel |
| Third Party Support |
| Third Party Support |
ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T |
| Network |
| Interface |
2 RJ45 |
| Ethernet Port |
10M/100M/1000M self-adaptive ethernet interface |
| Maximum User Access |
Remote Users: 128 |
| Storage |
| Internal HDD |
4 SATA interface |
| HDD Mode |
Up to 8TB for each HDD |
| Auxiliary Interface |
| USB |
Front panel: 1 x USB2.0
Rear panel: 1 x USB2.0, 1 x USB3.0 |
| Power |
| Power Supply |
12V DC |
| Power Consumption |
Power Consumption: ≤ 12W (without HDD) |
| Component Environment |
| Operational Conditions |
-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
| Construction |
| Dimensions |
440mm × 344mm× 50mm (17.3" × 13.5"×2.0") |
| Net Weight |
≤ 3.14Kg (6.92lb) |
| Warranty |
| Manufacturing Warranty |
2 Years Warranty |

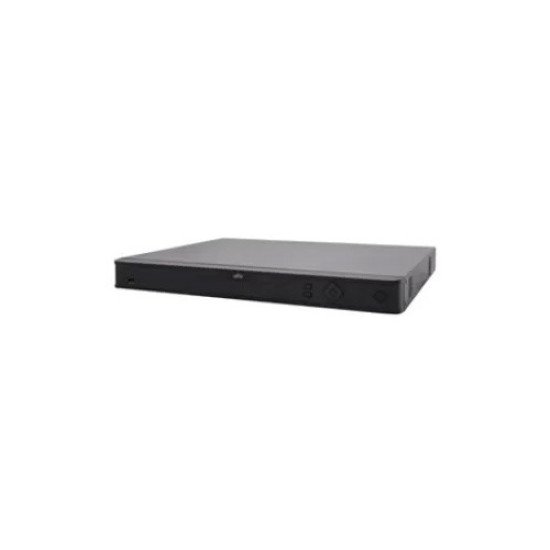

Uniview NVR304-16E 16 Channel 4K 4HDDs NVR
The Uniview NVR304-16E is a highly advanced 16-channel Network Video Recorder (NVR) designed to elevate video surveillance capabilities, providing a robust and feature-rich solution for a wide range of applications. Operating on a Linux system, this NVR ensures stability and reliability in handling high-definition video streams. With support for 16 IP camera inputs, the NVR304-16E facilitates comprehensive surveillance coverage. The display interface includes HDMI and VGA outputs with various resolution options, ensuring optimal video playback. The second HDMI port supports 4K resolution, providing crystal-clear visuals for enhanced monitoring. The impressive decoding capacity allows simultaneous handling of multiple streams, supporting configurations such as 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, and 16 x 1080p@30. This ensures smooth and high-quality video playback, crucial for detailed surveillance analysis. The NVR excels in video detection and alarm capabilities, featuring face detection, intrusion detection, cross-line detection, object removal, object abandonment, audio detection, defocus detection, scene change detection, auto tracking, face search, behavior search, and people counting. This comprehensive set of features empowers users with proactive monitoring and intelligent analytics. For storage, the NVR304-16E accommodates up to 4 SATA interfaces, each supporting up to 8TB HDDs, providing ample space for extended video recording. The NVR supports ONVIF conformance, ensuring compatibility with a variety of IP cameras and third-party devices. Networking is streamlined with two RJ45 interfaces, and the NVR is equipped with USB ports for easy data backup and maintenance. The compact design of 440mm × 344mm × 50mm and a net weight of ≤ 3.14 kg facilitate easy integration into diverse environments. With operational conditions ranging from -10°C to +55°C and humidity tolerance of ≤ 90% RH, the NVR304-16E is suitable for various deployment scenarios. Powered by a 12V DC supply, the NVR has a power consumption of ≤ 12W (without HDD), emphasizing energy efficiency. Backed by a 2-year manufacturing warranty, the Uniview NVR304-16E stands as a reliable and advanced solution for organizations seeking a high-performance NVR to meet their evolving video surveillance needs.
