Model
Hikvision DS-2DE2C400MWG-E
Max. Camera Resolution
2560 x 1440
Image Sensor
1/3 Inch Scan CMOS
Resolution
50 Hz: 20 fps (2560 x 1440, 1920 x 1080, 1280 x 720), 60 Hz: 20 fps (2560 x 1440, 1920 x 1080, 1280 x 720)
Night Vision Mode
Black and White
Viewing Angle.
Horizontal FOV 70 Degree, Vertical FOV 35 Degree, Diagonal FOV 85 Degree
General Function
Mirror, password protection, watermark
Digital Noise Reduction (DNR)
3D DNR
Wide Dynamic Range (WDR)
Digital WDR
Interface(s)
1 x RJ45 10 M/100 M self-adaptive Ethernet port
Simultaneous Live View
Yes
Scanning System
Progressive
Video Type
H.265, H.264, MJPEG
Mic & Speaker
Both Mic and Speaker
Audio Communication
Two-Way Audio
Input Trigger
Motion Detection
Ingress Protection Grade
IP66
Working Distance
30 Meter
Protocols
IPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, DNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour
Smart Alarm
Motion detection
Dimensions
163.9 x 185.8 x 131.9mm
Relevant Accessories (Not Included)
Without Adapter & Wall Mount
Power Supply
12 VDC +/- 25%, 0.75 A
Approx. Power Consumption
9W, PoE: 10.5W
Operating Temperature
-10 Degree C to 40 Degree C
Operating Humidity
90% or less (non-condensing)
Warranty Details
1 Year (Without Adapter)

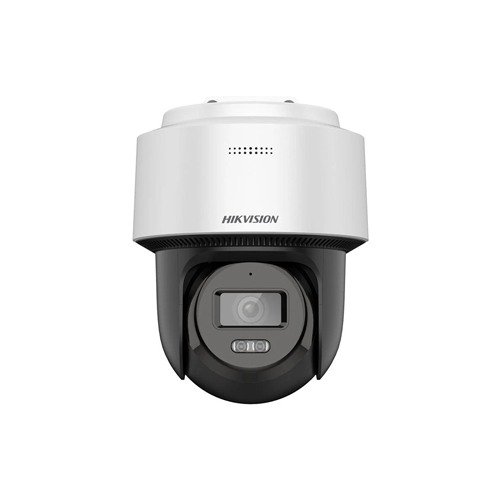

Hikvision DS-2DE2C400MWG-E 4 MP IR&White light Mini PT Network Camera
Hikvision DS-2DE2C400MWG-E is a cutting-edge 4 MP IR & White Light Mini PT Network Camera designed for outdoor surveillance. This camera combines advanced imaging technology with robust features, making it an ideal choice for security applications. With a maximum resolution of 2560 x 1440, it captures high-quality images, ensuring that every detail is visible, even in challenging lighting conditions.
Equipped with a 4mm lens, the camera offers a horizontal field of view of 70 degrees and a vertical field of view of 35 degrees, providing comprehensive coverage of the monitored area. The PTZ (Pan-Tilt-Zoom) functionality allows for flexible positioning, enabling users to adjust the camera's angle remotely for optimal surveillance. Additionally, the camera features night vision capabilities, operating in black and white mode, which enhances visibility in low-light environments.
The Hikvision DS-2DE2C400MWG-E is built with security in mind, featuring password protection, watermarking, and motion detection capabilities. It supports two-way audio, allowing for real-time communication, and includes a built-in microphone and speaker. The camera is also designed to withstand harsh weather conditions, boasting an IP66 rating for dust and water protection.
With a power consumption of 9W and support for Power over Ethernet (PoE), installation is straightforward and efficient. The camera operates effectively in a wide temperature range, from -10°C to 40°C, making it suitable for various outdoor environments. Overall, the Hikvision DS-2DE2C400MWG-E is a reliable and versatile surveillance solution, perfect for enhancing security in residential and commercial settings.
