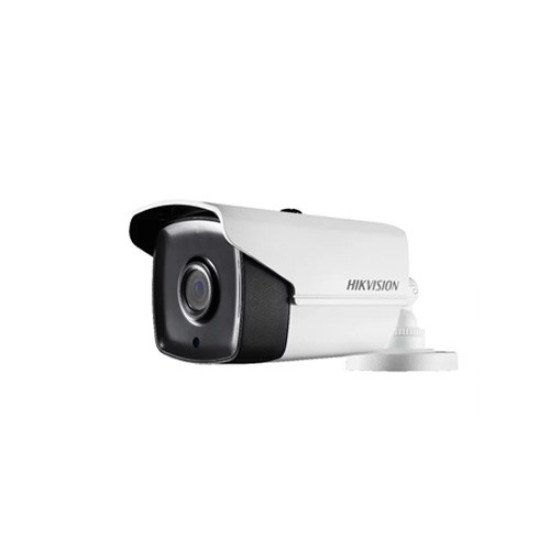

HikVision DS-2CE16F1T-IT3 3MP EXIR Bullet Camera
The HikVision DS-2CE16F1T-IT3 3MP EXIR Bullet Camera is a state-of-the-art surveillance solution designed to deliver exceptional performance in various environmental conditions. With dimensions measuring 86.7mm x 81.6mm x 226mm (3.41" x 3.23" x 8.67"), this robust camera is built for durability and versatility. Operating seamlessly between temperatures as low as -40°C (-40°F) to as high as 60°C (140°F), and with a humidity tolerance of 90% or less (non-condensing), this camera is suitable for a wide range of applications. Its IP66 weatherproof rating ensures reliable performance even in challenging weather conditions. Equipped with a 3MP CMOS image sensor, the camera produces sharp and clear images, boasting an effective pixel count of 2052(H) x 1536(V). The electronic shutter speed ranges from 1/25(1/30) s to 1/50,000 s, catering to varying lighting conditions. The camera's IR cut filter with auto switch ensures optimal day and night vision capabilities. With an impressive IR distance of up to 40m, the camera provides enhanced visibility in low-light conditions, achieving a minimum illumination of 0.01 Lux at (F1.2, AGC ON), and 0 Lux with IR. The camera supports multiple lens options, including 2.8mm, 3.6mm, 6mm, 8mm, 12mm, and 16mm, offering flexibility to adapt to specific surveillance needs. The M12 mount type ensures easy installation. Operational on a 12 VDC±15% power supply, the camera has a maximum power consumption of 5W. Weighing approximately 680g (1.5lb), it is both compact and lightweight, facilitating straightforward installation and mounting. With a pan range of 0° – 360°, tilt range of 0° – 90°, and rotation range of 0° – 360°, this camera provides comprehensive coverage. The video output is delivered through 1 Analog HD output, supporting a frame rate of 1920 × 1536@18fps. The HikVision DS-2CE16F1T-IT3 3MP EXIR Bullet Camera combines advanced imaging technology, weather-resistant construction, and versatile features to deliver a reliable and high-performance surveillance solution for a wide range of security applications.
HikVision DS-2CE16F1T-IT3 3MP EXIR Bullet Camera Features
- Dimensions and Construction: The HikVision DS-2CE16F1T-IT3 3MP EXIR Bullet Camera is compactly designed with dimensions of 86.7mm x 81.6mm x 226mm (3.41" x 3.23" x 8.67"). Its robust construction is built to withstand diverse environmental conditions, offering a weatherproof rating of IP66. This makes it resilient against harsh weather elements, ensuring consistent performance in temperatures ranging from -40°C to 60°C (-40°F to 140°F) and humidity levels of 90% or less (non-condensing).
- Imaging Technology: Equipped with a 3MP CMOS Image Sensor, the camera delivers high-quality images with effective pixels measuring 2052(H) x 1536(V). The electronic shutter speed, ranging from 1/25(1/30) s to 1/50,000 s, allows for optimal adaptation to varying lighting conditions. The camera boasts a signal-to-noise ratio (S/N Ratio) of more than 62 dB, ensuring clear and low-noise image capture.
- Infrared Capabilities: The camera's IR capabilities enhance its surveillance performance. With an impressive IR distance of up to 40m, it ensures clear visibility in low-light conditions. The IR cut filter with auto switch facilitates seamless transitions between day and night modes, and the minimum illumination of 0.01 Lux @ (F1.2, AGC ON) ensures effective low-light performance.
- Lens Options and Mounting: The camera supports a variety of lens options, including 2.8mm, 3.6mm, 6mm, 8mm, 12mm, and 16mm, providing flexibility to meet specific surveillance requirements. The M12 mount type ensures easy installation and compatibility with different lens configurations. The diverse angle of view options, ranging from 84° to 15.8°, allows for customizable coverage.
- Pan/Tilt/Rotation and Video Output: Featuring a pan range of 0° – 360°, tilt range of 0° – 90°, and rotation range of 0° – 360°, the camera provides comprehensive coverage. The video output is delivered through 1 Analog HD output, supporting a frame rate of 1920 × 1536@18fps, ensuring smooth and high-resolution video capture.
- Power Supply and Consumption: The camera operates on a 12 VDC±15% power supply, with a maximum power consumption of 5W. This power-efficient design ensures cost-effective and reliable surveillance without compromising performance.
In summary, the HikVision DS-2CE16F1T-IT3 3MP EXIR Bullet Camera combines advanced imaging technology, durable construction, infrared capabilities, lens versatility, and efficient power management to provide a comprehensive and reliable surveillance solution for various applications.
