| Dimensions |
Φ 70 mm × 154.5 mm (2.76" × 6.08") |
| Weight |
400 g (0.88 lb.) |
| Pan/Tilt/Rotation |
Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° |
| Operating Conditions |
-40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation) |
| Power Supply |
12 V DC±15% |
| Power Consumption |
Max. 4 W |
| Image Sensor |
1 MP CMOS sensor |
| Effective Pixels |
1296 (H) × 732 (V) |
| Scanning System |
PAL/NTSC |
| Electronic Shutter Speed> |
1/25 (1/30) s to 1/50,000 s |
| Minimum Illumination |
0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
| S/N Ratio |
>62 dB |
| IR Distance |
Up to 20 m |
| Lens Type |
2.8 mm, 3.6 mm, 6 mm optional |
| Mount Type |
M12 |
| Focal Length |
Fixed |
| Angle of View |
70.9°(3.6 mm), 92°(2.8mm), 56.7°(6mm) |
| Resolution |
1296 (H) × 732 (V) |
| Frame Rate |
720p@25fps/720p@30fps |
| Video Output |
1 analog HD output |
| Day/Night |
ICR |
| Noise Reduction |
Yes |
| arranty |
1 year |

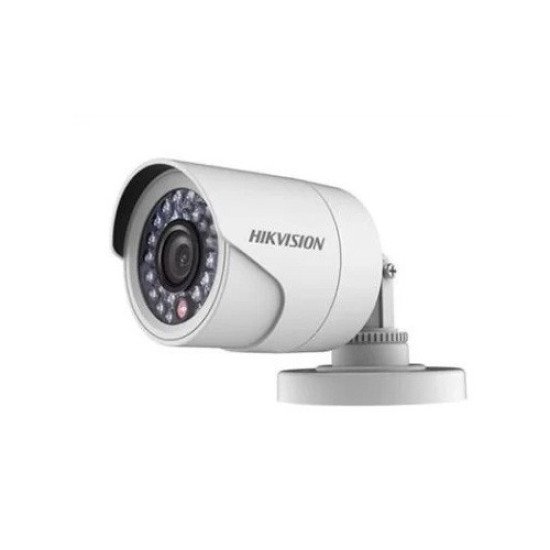

Hikvision DS-2CE16C0T-IRF HD IR 1MP Bullet CC Camera
The Hikvision DS-2CE16C0T-IRF HD IR 1MP Bullet CC Camera is a cutting-edge surveillance solution designed to deliver superior performance and reliability. With a compact design measuring Φ 70 mm × 154.5 mm (2.76" × 6.08") and a lightweight profile of 400 g (0.88 lb.), this camera is versatile and easy to install in various security setups. Equipped with advanced pan, tilt, and rotation capabilities (Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°), it provides a wide coverage range, ensuring comprehensive monitoring. Operating seamlessly in extreme conditions, the camera can withstand temperatures ranging from -40 °C to 60 °C (-40 °F to 140 °F), with a humidity tolerance of 90% or less (non-condensation). The camera's 1 MP CMOS sensor and effective pixel count of 1296 (H) × 732 (V) deliver high-resolution images, while the PAL/NTSC scanning system ensures compatibility with diverse video systems. Its electronic shutter speed ranges from 1/25 (1/30) s to 1/50,000 s, catering to varying lighting conditions. Featuring a versatile lens selection (2.8 mm, 3.6 mm, 6 mm optional) and a fixed focal length, the camera offers flexibility in capturing different scenes. The IR distance of up to 20 m ensures clear nighttime surveillance, supported by the infrared cut filter with auto switch (ICR) for effective day and night transitions. The camera excels in video quality, providing a resolution of 1296 (H) × 732 (V) and frame rates of 720p@25fps/720p@30fps. The 1 analog HD output simplifies integration with existing systems. With additional features such as noise reduction and a robust warranty of 1 year, the Hikvision DS-2CE16C0T-IRF HD IR 1MP Bullet CC Camera is a reliable and versatile choice for comprehensive security applications.
Hikvision DS-2CE16C0T-IRF HD IR 1MP Bullet CC Camera Features
- Compact Design: Dimensions of Φ 70 mm × 154.5 mm (2.76" × 6.08") and a weight of 400 g (0.88 lb.) ensure easy installation and versatility.
- Pan/Tilt/Rotation: Offers a wide coverage range with pan, tilt, and rotation capabilities (Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°).
- Robust Operating Conditions: Operates flawlessly in extreme conditions with an operating temperature range of -40 °C to 60 °C (-40 °F to 140 °F) and humidity tolerance of 90% or less (non-condensation).
- Power Efficiency: Efficient power consumption with a maximum of 4 W, powered by a 12 V DC±15% power supply.
- High-Resolution Imaging: Equipped with a 1 MP CMOS sensor and effective pixel count of 1296 (H) × 732 (V) for high-quality images.
- 6. Scanning System and Shutter Speed: PAL/NTSC scanning system and electronic shutter speed of 1/25 (1/30) s to 1/50,000 s for compatibility and adaptability to various lighting conditions.
- Low-Light Performance: Impressive low-light performance with a minimum illumination of 0.01 Lux@(F1.2, AGC ON), and 0 Lux with IR.
- Infrared Distance: IR distance of up to 20 m ensures clear surveillance during nighttime. Lens Options: Versatile lens options with 2.8 mm, 3.6 mm, and 6 mm choices, offering different angles of view (70.9°, 92°, 56.7°).
- Video Quality: Delivers high-resolution video at 1296 (H) × 732 (V) and frame rates of 720p@25fps/720p@30fps, supported by 1 analog HD output.
- Day/Night Functionality: Seamless day/night transitions facilitated by the Infrared Cut Filter with auto switch (ICR).
- Noise Reduction: Integrated noise reduction technology enhances video quality.
- Warranty: Backed by a reliable 1-year warranty, providing peace of mind and assurance of product quality.
In summary, the Hikvision DS-2CE16C0T-IRF is a feature-rich surveillance camera designed for optimal performance and durability in diverse environments.
