| Image Sensor |
2MP CMOS Image Sensor |
| Signal System |
PAL/NTSC |
| Effective Pixels |
1920(H) * 1080(V) |
| Shutter Time |
1/25(1/30) s to 1/50,000 s |
| Lens Mount |
M16 |
| Adjustment Range |
Pan: 0° to 360°; Tilt: 0° to 180°; Rotate: 0° to 360° |
| Day & Night |
Color |
| Video Frame Rate |
1080p@25fps/1080p@30fps |
| HD Video Output |
1 Analog HD output |
| Synchronization |
Internal Synchronization |
| Up the Coax |
Support |
| White Balance |
Auto/MWB |
| BLC |
Support |
| AGC |
Support |
| White Light |
Up to 40 m |
| Operating Conditions |
-40 °C – 60 °C (-40 °F – 140 °F) |
| Humidity |
90% or less (non-condensing) |
| Power Supply |
12 VDC ±25% (*Recommended: Use one power adapter for each camera) |
| Weather Proof |
IP67 |
| Communication |
Up the coax |
| Protocol |
HIKVISION-C (Coaxitron) |
| Dimension |
223.1 mm × 77.1 mm × 82.6 mm (8.78″ × 3.04″ × 3.25″) |
| Weight |
Approx. 436 g (0.96 lb.) |

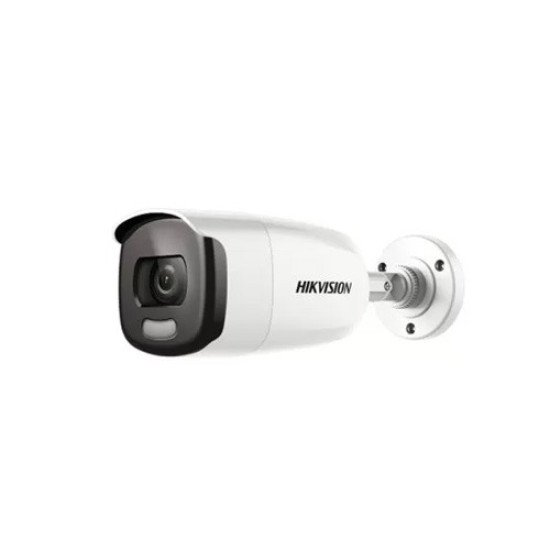

HikVision DS-2CE12DFT-F 2 MP Full Time Color Bullet CC Camera
The HikVision DS-2CE12DFT-F 2 MP Full-Time Color Bullet CC Camera offers advanced surveillance capabilities with its cutting-edge features. Equipped with a powerful 2MP CMOS image sensor, it delivers high-resolution images with a pixel count of 1920(H) * 1080(V). The camera supports both PAL and NTSC signal systems, ensuring compatibility with various display devices. One standout feature is its Full-Time Color capability, providing vibrant and detailed color images around the clock. The camera operates seamlessly in diverse lighting conditions, from day to night. The day and night mode allows for full-color recording even in low-light environments, enhancing visibility and capturing crucial details. The camera's lens system with M16 mount and a wide adjustment range (Pan: 0° to 360°; Tilt: 0° to 180°; Rotate: 0° to 360°) provides flexible positioning for optimal coverage. With a video frame rate of 1080p at 25fps or 30fps, it ensures smooth and clear video playback. The HD video output and internal synchronization contribute to a hassle-free integration process. Additionally, the camera supports "Up the Coax" functionality, simplifying installation and configuration. Essential features like White Balance, BLC (Backlight Compensation), and AGC (Automatic Gain Control) enhance image quality in challenging lighting scenarios. The White Light feature extends visibility up to 40 meters, contributing to effective monitoring in low-light conditions. Built to withstand harsh weather conditions, the camera boasts an IP67 weatherproof rating, making it suitable for outdoor installations. The robust construction ensures reliable performance in temperatures ranging from -40 °C to 60 °C. With a dimension of 223.1 mm × 77.1 mm × 82.6 mm and a weight of approximately 436 g (0.96 lb.), this camera offers a compact and lightweight solution for a wide range of surveillance applications. The HikVision DS-2CE12DFT-F combines advanced imaging technology, versatile features, and robust design, making it an ideal choice for users seeking reliable and high-performance surveillance solutions.
HikVision DS-2CE12DFT-F 2 MP Full Time Color Bullet CC Camera Features
- Advanced Image Sensor: Equipped with a 2MP CMOS image sensor, the camera captures high-resolution images with a pixel count of 1920(H) * 1080(V).
- Signal System: Supports both PAL and NTSC signal systems, ensuring compatibility with a variety of display devices.
- Full-Time Color: Operates in Full-Time Color mode, delivering vibrant and detailed color images 24/7, enhancing visibility and capturing critical details.
- Pan/Tilt/Rotation Adjustment: Offers a flexible lens adjustment range, allowing Pan from 0° to 360°, Tilt from 0° to 180°, and Rotate from 0° to 360° for optimal coverage.
- Day & Night Mode: The camera seamlessly transitions between day and night modes, maintaining color recording even in low-light conditions.
- Video Frame Rate: Supports 1080p video recording at 25fps/30fps, ensuring smooth and clear video playback.
- HD Video Output: Features 1 Analog HD output for high-definition video transmission.
- Internal Synchronization: Synchronization is handled internally, simplifying the installation process.
- Up the Coax Support: Supports "Up the Coax" functionality for convenient installation and configuration.
- White Balance, BLC, and AGC: Features White Balance for accurate color reproduction, BLC (Backlight Compensation) for improved image quality in challenging lighting conditions, and AGC (Automatic Gain Control) for enhanced low-light performance.
- White Light: Incorporates a White Light feature that extends visibility up to 40 meters, contributing to effective monitoring in low-light conditions.
- Operating Conditions: Designed to operate in a wide temperature range from -40 °C to 60 °C, suitable for various environments.
- Weatherproof Design: Boasts an IP67 weatherproof rating, ensuring durability and reliability in outdoor installations.
- Communication Protocol: Supports communication "Up the Coax" with the HIKVISION-C (Coaxitron) protocol.
- Compact Dimensions and Lightweight: With dimensions of 223.1 mm × 77.1 mm × 82.6 mm and a weight of approximately 436 g (0.96 lb.), the camera offers a compact and lightweight solution.
In summary, the HikVision DS-2CE12DFT-F camera combines advanced imaging technology, versatile features, and a robust design, making it an excellent choice for users seeking a reliable and high-performance surveillance solution.
