Model
Hikvision DS-2CD2023G2-IU
Max. Camera Resolution
1920 x 1080
Image Sensor
1/2.8 Inch Progressive Scan CMOS
Shutter Speed
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Night Vision Mode
Black and White
Lens Adjustment Range
Pan: 0degree to 360degree, Tilt: 0degree to 90degree, Rotate: 0degree to 360degree
Viewing Angle.
87 Degree (H), 46 Degree (V), 104 Degree (D)
General Function
Anti-flicker, heartbeat, mirror, password reset via email, password protection, one-key reset
Frame Rate
1920 x 1080@30fps
Digital Noise Reduction (DNR)
3D DNR
Wide Dynamic Range (WDR)
120 dB
Interface(s)
RJ-45 (10/100 Base-T)
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)
Simultaneous Live View
Up to 6 channels
Scanning System
Progressive
Video Type
H.265+, H.265, H.264+, H.264
Audio Communication
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Working Distance
Unmentioned
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Smart Alarm
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), Face detection
Dimensions
74.4 x 179.2mm
Power
5.5 mm coaxial power plug, PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.13 A
Power Supply
12 VDC +/- 25%
Approx. Power Consumption
6W
Operating Temperature
-30 Degree C - +60 Degree C
Storing/Storage Temperature
-30 Degree C - +60 Degree C
Operating Humidity
95% or less (non-condensing)
Storing/Storage Humidity
95% or less (non-condensing)
Warranty Details
1 Year (Without Adapter)
Others
Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR, Supplement Light Range: Up to 40 m, Video Bit Rate: 32 Kbps to 8 Mbps, Bit Rate Control: CBR,VBR, Environment Noise Filterin: Yes, API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP, User/Host: Up to 32 users, Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported, Client: iVMS-4200,Hik-Connect,Hik-Central, Web Browser: Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, SNR: 52 dB, Image Enhancement: BLC,HLC,3D DNR, Privacy Mask: Yes,
Specialty
High quality imaging with 2 MP resolution, Clear imaging against strong backlight due to 120 dB WDR technology, Efficient H.265+ compression technology, Built-in microphone for real-time audio security, Focus on human and vehicle targets classification based on deep learning, Water and dust resistant (IP67), Safety ( UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005), Environment (CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006)

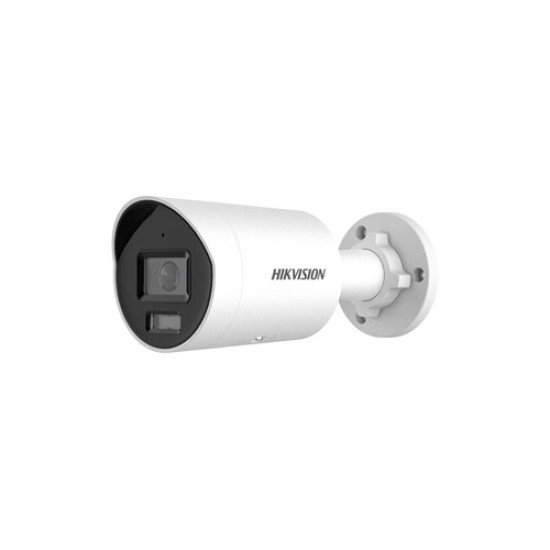

Hikvision DS-2CD2023G2-IU (4mm) (2.0MP) AcuSense Bullet IP Camera
Hikvision DS-2CD2023G2-IU is a versatile 2MP AcuSense bullet IP camera designed for both indoor and outdoor use, providing high-quality surveillance with exceptional features. Equipped with a 1/2.8 inch Progressive Scan CMOS image sensor, it delivers a maximum resolution of 1920 x 1080, ensuring clear and detailed images. The camera operates efficiently with a shutter speed ranging from 1/3 s to 1/100,000 s, allowing for reliable performance in various lighting conditions.
With a 4mm lens, the DS-2CD2023G2-IU offers a wide viewing angle of 87° horizontally, 46° vertically, and 104° diagonally, making it suitable for monitoring large areas. Its advanced night vision capabilities, enhanced by an IR cut filter, enable the camera to operate in complete darkness with a minimum illumination of 0.005 Lux in color mode and 0 Lux in black and white mode, providing visibility up to 40 meters.
This camera features robust security protocols, including password protection, HTTPS encryption, and various authentication methods, ensuring secure access and data integrity. The AcuSense technology allows for intelligent detection, focusing specifically on human and vehicle targets while minimizing false alarms. Other smart features include line crossing detection, intrusion detection, and face detection.
Built to withstand harsh environments, the DS-2CD2023G2-IU is rated IP67 for dust and water resistance, making it ideal for outdoor installations. It supports Power over Ethernet (PoE) for convenient installation, and the compact design (74.4 x 179.2 mm, 500 g) allows for easy mounting.
With a 1-year warranty (excluding the adapter), the Hikvision DS-2CD2023G2-IU is an excellent choice for those seeking a reliable, feature-rich surveillance solution that combines advanced imaging technology with user-friendly functionality.
