| Brand |
Hikvision |
| Model |
DS-2CD1T43G2-LIU |
| Usage |
Indoor & Outdoor |
| Type |
IP Camera |
| Camera Type |
Fixed |
| Mega Pixels |
4.0MP |
| Max. Camera Resolution |
2560 x 1440 |
| Image Sensor |
1/3 inch CMOS |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Day & Night |
IR cut filter |
| Night Vision |
Yes |
| Lens |
4mm |
| Lens Mount |
M12 |
| Lens Adjustment Range |
Pan: 0 – 360°, Tilt: 0 – 180°, Rotate: 0 – 360° |
| Focal Length |
4mm |
| Viewing Angle |
Horizontal: 78°, Vertical: 42°, Diagonal: 93° |
| General Function |
Heartbeat, anti-banding, mirror, password protection, password reset via email |
| Frame Rate |
20–25 fps |
| Digital Noise Reduction (DNR) |
3D DNR |
| Wide Dynamic Range (WDR) |
120 dB |
| Interface(s) |
1 x RJ45 10M/100M |
| Wi-Fi |
No |
| Security |
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE, digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
|
| Motion Detection |
Yes |
| Human Detection |
Yes |
| Dust Protection |
Yes |
| Water Protection |
IP67 |
| Simultaneous Live View |
Up to 6 channels |
| Scanning System |
Progressive |
| Video Type |
Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
| Wavelength |
850 nm |
| Mic & Speaker |
Only Mic |
| Working Distance |
Unmentioned |
| Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| Form-Factor |
Bullet |
| Card Slot |
No |
| Storage Type |
No |
| Button |
Reset Button |
| Body Material |
Metal + Plastic |
| Color |
Black & White |
| Dimensions |
83.7 x 80.7 x 205.6 mm |
| Weight (gm) |
580 g |
| Power |
12 VDC ± 25%, 0.5 A, max. 6W, PoE: IEEE 802.3af, Class 3, max. 7W |
| Operating Temperature |
-30 to 60°C |
| Storing/Storage Temperature |
-30 to 60°C |
| Operating Humidity |
95% or less (non-condensing) |
| Storing/Storage Humidity |
95% or less (non-condensing) |
| Warranty |
1 Year (Without Adapter) |

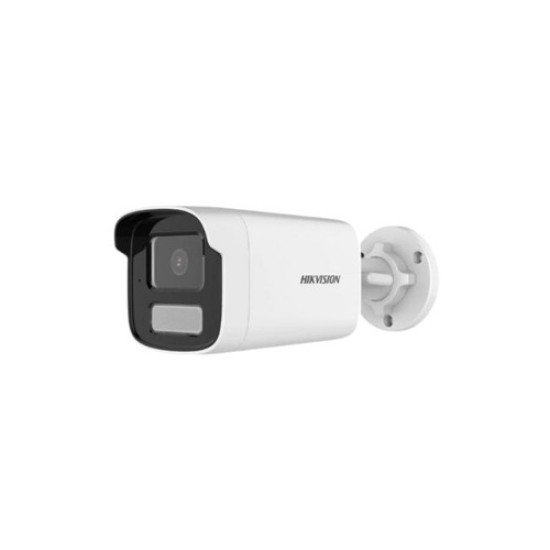

Hikvision DS-2CD1T43G2-LIU 4 MP Bullet Network Camera
Hikvision DS-2CD1T43G2-LIU is a versatile 4MP bullet network camera designed for both indoor and outdoor surveillance, delivering exceptional image quality and advanced features. With a robust 1/3 inch CMOS image sensor, this camera captures high-resolution images at a maximum resolution of 2560 x 1440 pixels, ensuring clarity and detail in every shot.
Equipped with a 4mm lens, the DS-2CD1T43G2-LIU offers a wide viewing angle of 78° horizontally, 42° vertically, and 93° diagonally, making it suitable for monitoring expansive areas. Its lens adjustment capabilities allow for pan, tilt, and rotation, providing flexibility in positioning the camera for optimal coverage. The camera also features an IR cut filter for effective day and night operation, with night vision capabilities ensuring visibility in low-light conditions.
This camera incorporates advanced security features, including password protection, watermarking, and multiple authentication methods, to protect your surveillance footage from unauthorized access. It also supports motion detection and human detection, enhancing its ability to identify potential security threats.
Designed for durability, the DS-2CD1T43G2-LIU is IP67 rated, offering excellent dust and water protection, making it ideal for outdoor use in various weather conditions. With a compact design measuring 83.7 x 80.7 x 205.6 mm and weighing 580 g, it is easy to install and integrate into existing security systems.
The camera supports Power over Ethernet (PoE) for flexible installation options, operating efficiently in temperatures ranging from -30°C to 60°C. Backed by a 1-year warranty (without adapter), the Hikvision DS-2CD1T43G2-LIU is an outstanding choice for those seeking a reliable, high-performance surveillance solution that combines advanced imaging technology with user-friendly functionality.
