Model
Hikvision DS-2CD1047G2H-LIU
Max. Camera Resolution
2560 x 1440
Image Sensor
1/3 Inch Scan CMOS
Shutter Speed
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Viewing Angle.
94 Degree (H), 50 Degree (V), 110 Degree (D)
General Function
Heartbeat, anti-banding, mirror, password protection, password reset via email
Frame Rate
20 fps - 24 fps
Digital Noise Reduction (DNR)
3D DNR
Wide Dynamic Range (WDR)
120 dB
Interface(s)
1 x RJ45 10 M/100 M self-adaptive Ethernet port
Security
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View
Up to 6 channels
Scanning System
Progressive
Video Type
Main stream: H.265+/ H.265/ H.264+/ H.264, Sub-stream: H.265/ H.264/ MJPEG
Input Trigger
Motion detection
Ingress Protection Grade
IP67
Working Distance
30 Meter
Protocols
IPv4 IPv6, TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP
Body Material
Metal + Plastic
Dimensions
69.8 x 67.9 x 172.9mm
Power
12 VDC +/- 25%, 0.5 A, max. 6 W, 5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W
Approx. Power Consumption
7.5W
Operating Temperature
-30 Degree C to 60 Degree C
Storing/Storage Temperature
-30 Degree C to 60 Degree C
Operating Humidity
95% or less (non-condensing)
Storing/Storage Humidity
95% or less (non-condensing)
Warranty Details
1 Year (Without Adapter)

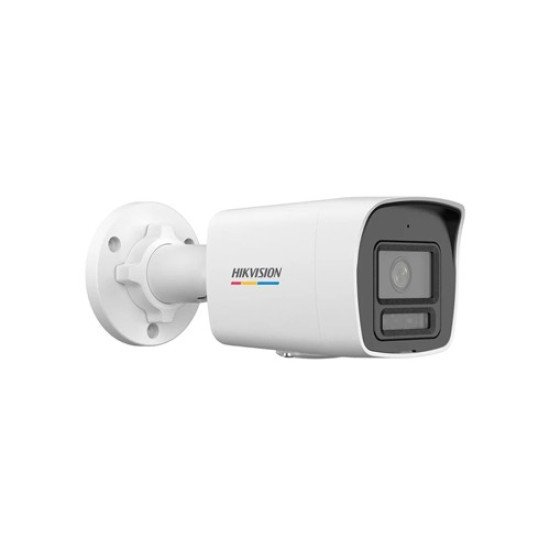

Hikvision DS-2CD1047G2H-LIU (4mm) (4.0MP) Fixed Bullet IP Camera
Hikvision DS-2CD1047G2H-LIU is a high-performance 4MP fixed bullet IP camera designed for outdoor surveillance, delivering exceptional image quality and advanced features. With a robust 1/3 inch Progressive Scan CMOS image sensor, this camera captures stunning visuals at a maximum resolution of 2560 x 1440 pixels, ensuring clarity and detail in every frame.
Equipped with a 4mm lens, the DS-2CD1047G2H-LIU offers a wide viewing angle of 94° horizontally, 50° vertically, and 110° diagonally, making it ideal for monitoring expansive areas. Its advanced night vision capabilities allow for color imaging even in low-light conditions, thanks to the integrated IR cut filter. The camera can effectively operate in complete darkness, providing reliable surveillance with a working distance of up to 30 meters. Designed for durability, this camera features an IP67 ingress protection rating, ensuring it is resistant to dust and water, making it suitable for various outdoor environments. The body is constructed from a combination of metal and plastic, providing both strength and lightweight portability.
The DS-2CD1047G2H-LIU also incorporates intelligent features such as motion detection and human detection, enhancing security by minimizing false alarms. It supports dual-stream capabilities for efficient bandwidth management and offers a wide dynamic range (WDR) of 120 dB, which helps produce clear images in challenging lighting conditions. With a compact design measuring 69.8 x 67.9 x 172.9 mm and weighing approximately 550 g, this camera is easy to install and integrate into existing surveillance systems. It operates on a power supply of 12 VDC or via Power over Ethernet (PoE), providing flexibility in installation options. Backed by a 1-year warranty, the Hikvision DS-2CD1047G2H-LIU is an excellent choice for those seeking a reliable, high-performance outdoor surveillance solution that combines advanced imaging technology with user-friendly functionality.
Buying Guideline of Hikvision DS-2CD1047G2H-LIU (4mm) (4.0MP) Fixed Bullet IP Camera
Choosing the right IP camera is crucial for effective surveillance. The Hikvision DS-2CD1047G2H-LIU (4mm) 4.0MP Fixed Bullet IP Camera combines advanced imaging technology with ease of installation, making it suitable for both home and office security. Here’s a guideline to help you make the best purchase decision:
-
Resolution & Image Quality: Ensure you select a camera with at least 4MP resolution for clear and detailed footage.
-
Lens Type & Field of View: The 4mm lens offers a balanced wide-angle view, ideal for general surveillance.
-
Low-Light Performance: Look for ColorVu or similar features that provide full-color imaging in low-light conditions.
-
Connectivity: Check for stable network connectivity (PoE or standard Ethernet) for uninterrupted monitoring.
-
Weather Resistance: Opt for IP66-rated cameras if the installation is outdoors to ensure durability against rain and dust.
-
Storage Options: Confirm compatibility with NVRs or cloud storage for convenient footage management.
-
Smart Features: Motion detection, alerts, and integration with smart security systems can enhance monitoring efficiency.
Whether you are looking to expand your security setup or complement your current system, the Hikvision DS-2CD1027G2H-LIU 2MP ColorVu with Smart Hybrid Light Network Camera offers advanced imaging and reliable performance. This camera, categorized under IP Camera and from Hikvision, delivers crisp, full-color video even in low-light conditions. Both the headphone and camera solutions, along with other premium products, are available through Tech Valley, ensuring quality and trusted performance for your home or office needs.
