| System |
| Main Processor |
Embedded Processor |
| Display |
| Interface |
Web/operating in local GUI |
| Resolution |
8MP/5MP/4MP/3MP/1080P/720P/D1/CIF |
| Decoding Capacity |
1–ch@8MP (30FPS) or 1–ch@5MP (30FPS) or
2–ch@4MP (30FPS) or 2–ch@3MP (30FPS) or 4–
ch@1080P(30FPS)8–ch@720P(30FPS) |
| Multi-Screen Display |
1 / 4 / 8 /9 |
| Recording |
| Compression |
Video: Smart H.265+/H.265/Smart H.264+/H.264
Audio: PCM/G711A/G711U/G726/AAC |
| Resolution |
1 VGA/1 HDMI simultaneous video output, maximum resolution 1080P |
| Record Mode |
Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording |
| Playback And Backup |
| Sync Playback |
Up to 8 channels playback |
| Playback Function |
1. Play, pause, stop, fast forward, fast backward, rewind, play by frame 2. Full screen, backup (cut/file), partially enlarge, audio on/off |
| Backup Mode |
USB device |
| Network |
| Smart Phone |
IDMSS (iOS), GDMSS (Android) |
| Storage |
| HDD Mode |
1 SATA 2.0 port, up to 8 TB for a single HDD. The maximum HDD capacity varies with environment temperature |
| Auxiliary Interface |
| USB |
1 front USB 2.0 port, 1 rear USB 2.0 port |
| Power |
| Power Supply |
DC12V, 1.5A |
| Power Consumption |
The total output of NVR is ≤ 10W (without HDD) |
| Component Environment |
| Storage Conditions |
Local HDD and network |
| Construction |
| Dimensions |
Product Dimensions: 260 mm×225 mm×47.6 mm (W × L × H)
Box Dimensions: 87 mm×331 mm×312 mm (W × L × H) |
| Net Weight |
0.81 kg (1.79 lb) |
| Gross Weight |
1.38 kg (3.04 lb) |
| Warranty |
| Manufacturing Warranty |
01-year Warranty |

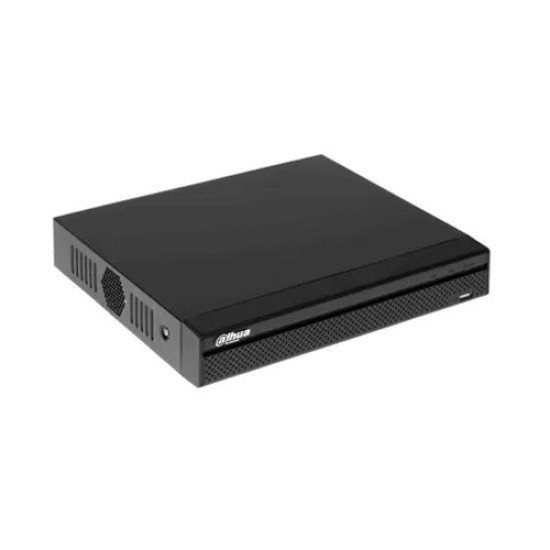

Dahua DHI NVR1108HS-S3/H 8 Channel Compact Video Recorder
Dahua DHI NVR1108HS-S3/H is an advanced 8-channel compact video recorder designed to deliver top-notch surveillance capabilities for a wide range of applications. Equipped with a powerful embedded processor, this NVR ensures efficient and reliable video processing, making it an ideal solution for both residential and commercial security needs. The NVR boasts a user-friendly interface accessible via the web or local GUI, providing a seamless experience for users to configure and monitor their surveillance system. With support for various resolutions ranging from 8MP down to CIF, the NVR enables flexible camera compatibility, ensuring clear and detailed video capture. Its decoding capacity is impressive, supporting multiple configurations such as 1 channel at 8MP/5MP (30FPS) or 2 channels at 4MP (30FPS), allowing for versatile recording options to meet specific surveillance requirements. The multi-screen display feature further enhances user convenience, offering choices between 1, 4, 8, or 9 screens for simultaneous video monitoring. The recording capabilities of the Dahua NVR1108HS-S3/H are comprehensive, supporting Smart H.265+/H.265 and Smart H.264+/H.264 video compression, optimizing storage space without compromising video quality. Users can prioritize recording modes based on manual input, alarm triggers, motion detection, or scheduled intervals. For playback and backup, the NVR supports up to 8 channels for synchronized playback, and the playback functions include essential features like play, pause, stop, fast forward, and audio control. Backup options are convenient, with USB device support for easy data transfer. In terms of connectivity, the NVR supports remote access through smartphone applications like IDMSS (iOS) and GDMSS (Android), providing users with real-time monitoring capabilities on the go. The storage capacity is expandable with a single SATA 2.0 port supporting up to 8TB HDD. Compact in design, the NVR1108HS-S3/H is constructed with dimensions of 260 mm×225 mm×47.6 mm, weighing only 0.81 kg. The package includes front and rear USB ports for additional convenience. With a low power consumption of ≤ 10W (without HDD), this NVR is energy-efficient. Backed by a 1-year manufacturing warranty, the Dahua DHI NVR1108HS-S3/H ensures reliability, performance, and peace of mind for users seeking a high-quality compact video recorder for their surveillance needs.
