Model
Hikvision HiLook NVR-108MH-D
Number of Input Channel
08 Channel
Video Compression/Format
H.265 / H.265+, H.264 / H.264+
Video Output (VGA)
1-ch, 1920 x 1080p/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
Video Output (HDMI)
1-ch, 1920 x 1080p/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
Video Recording Res.
6 MP/ 4 MP/ 3 MP/ 1080p/ UXGA / 720p/ VGA/ 4CIF/ DCIF/ 2CIF/ CIF/ QCIF
Max. Video Recording Res.
1920 x 1080
Stream Type
Video, Video & Audio
Dual Stream Support
Unmentioned
Decoding Capability
2-ch @ 4 MP / 4-ch @ 1080p
Synchronous Playback
4-ch
Network Protocol
TCP/IP, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP
Network Interface (RJ45)
1 x RJ-45 10/100Mbps self-adaptive Ethernet interface
Number HDD Interface (SATA)
1 SATA
Max HDD Support (GB,TB)
Up to 6TB
USB Port
Rear panel: 2 x USB 2.0
Incoming Bandwidth
60 Mbps
Outgoing Bandwidth
60 Mbps
Power Supply
48 VDC, 1.8 A
Approx. Power Consumption
<-10 W
Dimensions
265 x 225 x 48 mm
Others
IP Video Input: 8-ch, Up to 6 MP resolution, Working Temperature: -10 Degree C to 55 Degree C, Working Humidity: 10% to 90%, Certification: CE, EN50130-4, EN 61000-3-2,EN 61000-3-3, 260 1U case (Metal)

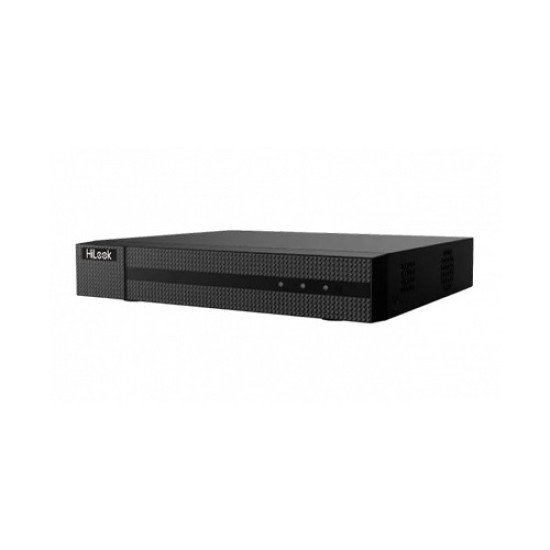

Hikvision HiLook NVR-108MH-D/8P 4MP IP 8 Channel PoE H.265 NVR
Hikvision HiLook NVR-108MH-D/8P is a versatile 8-channel network video recorder (NVR) designed to provide efficient and reliable video surveillance solutions. This NVR supports up to 8 IP camera inputs, allowing users to monitor multiple areas simultaneously with ease. With a maximum video recording resolution of 1920 x 1080, it ensures high-quality footage, making it suitable for both residential and commercial applications.
One of the standout features of the NVR-108MH-D/8P is its support for advanced video compression formats, including H.265, H.265+, H.264, and H.264+. This technology significantly reduces bandwidth and storage requirements while maintaining excellent video quality. The NVR boasts an incoming and outgoing bandwidth of 60 Mbps, ensuring smooth video streaming and playback.
The device is equipped with both HDMI and VGA outputs, allowing for flexible connectivity options to monitors and displays. Users can enjoy high-definition video output at various resolutions, including 1920 x 1080p at 60 Hz. The NVR also supports synchronous playback of up to 4 channels, making it easy to review recorded footage.
Designed for user-friendly operation, the NVR-108MH-D/8P features a metal chassis that is both durable and compact, measuring 265 x 225 x 48 mm. It supports a single SATA hard drive of up to 6TB, providing ample storage for recorded video. Additionally, the device includes two USB 2.0 ports for easy data transfer and backup.
With a working temperature range of -10°C to 55°C and a humidity tolerance of 10% to 90%, the Hikvision HiLook NVR-108MH-D/8P is built to perform reliably in various environmental conditions. This NVR is an excellent choice for those seeking a cost-effective, high-performance solution for their surveillance needs.
