| Audio And Video |
| Audio and Video |
IP Video Input : 8-ch (up to 24-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input : 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
AHD Input : 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI Input : 1080p25, 1080p30, 720p25, 720p30
CVBS Input : PAL/NTSC
Audio Input : 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output : 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous Playback : 16-ch
HDTVI Input : 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25,*: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2 of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1.,
VGA/HDMI Output : VGA: 1-ch, ,1920 × 1080/60Hz, 1280 × 1024/60Hz, ,1280 × 720/60Hz, 1024 × 768/60Hz,HDMI: 1-ch, ,4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, ,1280 × 720/60Hz, 1024 × 768/60Hz,
CVBS Output : 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Recording |
Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution : When 1080p lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF,When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF,
Frame Rate : Main stream:,When 1080p Lite mode not enabled: ,For 4 MP stream access:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ,For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: ,1080p/720p@15fps;
VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),For 720p stream access:
720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),Sub-stream:
,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),
Video Bit Rate : 32 Kbps to 6 Mbps
Dual Stream : Support
Stream Type : Video, Video & Audio
Audio Compression : G.711u
Audio Bit Rate : 64 Kbps |
| Network |
Remote Connections : 128
Network Protocols : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface : 1,,RJ45 10M/100M/1000M ,self-adaptive ,Ethernet interface, |
| Power Specifications |
| Power |
Power Supply : 12 VDC
Consumption (Without HDD) : ≤ 25 W |
| Main Features |
| Auxiliary Interface |
SATA : 1 SATA interface
Capacity : Up to 10 TB capacity for each disk
Alarm In/Out : N/A
USB Interface : Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0
Serial Interface : RS-485 (half-duplex) |
| Component Environment |
Working Temperature : -10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity : 10% to 90% |
| Physical Specification |
| Dimensions |
315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
| Weight |
≤ 2 kg (4.4 lb) |
| Warranty |
| Manufacturing Warranty |
01 year warranty |

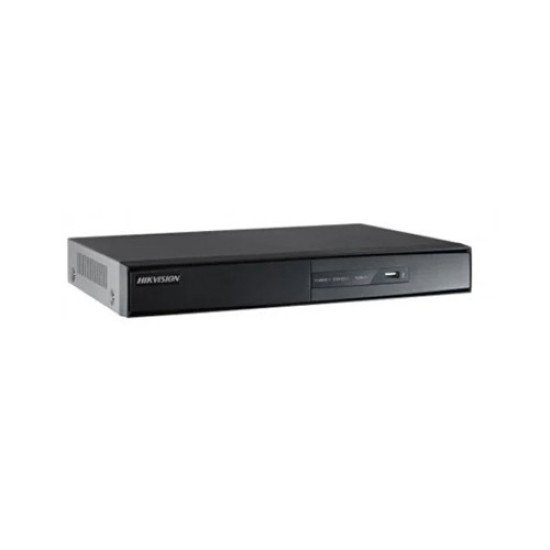

HIKVISION DS-7216HQHI-K1 16 Channel Turbo HD 1080P DVR
The HIKVISION DS-7216HQHI-K1 is a robust and advanced 16-channel Turbo HD DVR that stands out in the realm of video surveillance systems. Designed for high-performance security applications, this DVR model offers a cutting-edge solution for both commercial and residential settings, providing users with unparalleled clarity and reliability. With support for Turbo HD technology, the DS-7216HQHI-K1 enables seamless integration with various camera types, including HD-TVI and analog cameras. This versatility ensures flexibility in designing a comprehensive surveillance system tailored to specific needs. The ability to connect up to 16 channels underscores its scalability, making it suitable for larger installations where extensive coverage is paramount.
The DVR boasts a maximum resolution of 1080P, ensuring that every frame captured is sharp and detailed. Whether monitoring a retail space, office environment, or residential property, users can rely on the DS-7216HQHI-K1 to deliver clear and crisp video footage. The HDMI and VGA outputs further enhance the user experience by providing multiple display options, catering to diverse monitoring needs. Equipped with two SATA interfaces, this DVR offers substantial storage capacity for recorded footage. The dual interfaces enable users to install multiple hard drives, ensuring ample space for extended video retention. This proves invaluable in investigations or when reviewing historical data. One of the standout features of the DS-7216HQHI-K1 is its compatibility with the EZVIZ Cloud P2P service, simplifying remote access. Users can conveniently monitor their surveillance system from anywhere with an internet connection, enhancing real-time situational awareness. This cloud-based functionality adds an extra layer of convenience and accessibility to the overall surveillance experience. The HIKVISION DS-7216HQHI-K1 16 Channel Turbo HD 1080P DVR combines cutting-edge technology, scalability, and user-friendly features, making it a top choice for those seeking a reliable and comprehensive video surveillance solution. Whether for business security or home monitoring, this DVR ensures peace of mind through its advanced capabilities and robust design.
