| Brand |
Hikvision |
| Model |
Hikvision DS-7204HQHI-K1 |
| Type |
Turbo HD DVR |
| Video Input Channel (BNC) |
4-ch |
| Video Compression/Format |
H.265 Pro+/ H.265 Pro/ H.265/ H.264+/ H.264 |
| Video Output (VGA) |
1 Channel, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Video Output (HDMI) |
1 Channel, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Video Recording Res. |
When 1080p lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/ |
| Max. Video Recording Res. |
1080p |
| Video Bit Rate |
32 Kbps to 6 Mbps |
| IP Video Input |
4-ch (up to 12-ch) |
| Analog & HD-TVI Video Input |
1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 |
| Audio Input Channel (RCA) |
1-ch, RCA (2.0 Vp-p, 1 K) |
| Audio Compression |
G.711u |
| Audio Output Channel |
1-ch, RCA (Linear, 1 K) |
| Two-way Audio |
1-ch, RCA (2.0 Vp-p, 1 K) (using the first audio input) |
| Audio Bit Rate |
64 Kbps |
| Frame Rate |
Main stream: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps, Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
| Stream Type |
Video, Video & Audio |
| Dual Stream Support |
Yes |
| Synchronous Playback |
4-channel |
| Network Protocol |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF |
| Number HDD Interface (SATA) |
1 SATA |
| Max HDD Support (GB,TB) |
Up to 10 TB capacity for each disk |
| Max. Storage Support |
10TB |
| Network Interface (RJ45) |
1, RJ45 10M/100M self-adaptive Ethernet interface |
| Serial Interface |
RS-485 (half-duplex) |
| USB Port |
2 x USB 2.0 |
| Remote Connections |
32 |
| CVBS Input |
PAL/NTSC |
| Incoming Bandwidth |
24/48/96 Mbps |
| Outgoing Bandwidth |
24/48/96 Mbps |
| Power Supply |
12 VDC |
| Approx. Power Consumption |
6W (without HDD) |
| Dimensions |
315 x 242 x 45mm |
| Weight (Kg) |
1.16 kg |
| Feature |
Support H.265 Pro+/H.265 Pro/H.265 video compression, Support HDTVI/AHD/CVI/CVBS/IP video input |
| Others |
CVBS output: 1-ch, BNC (1.0 Vp-p, 75), Resolution: PAL: 704 x 576, NTSC: 704 x 480 |
| Warranty Details |
1 year |
| Country Of Origin |
China |
| Made in/ Assemble |
China |

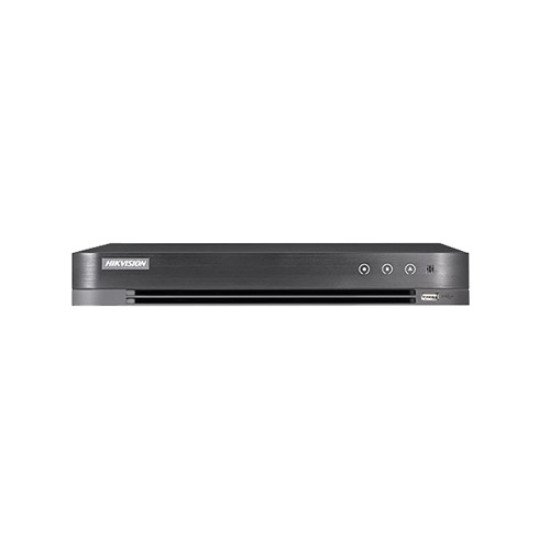

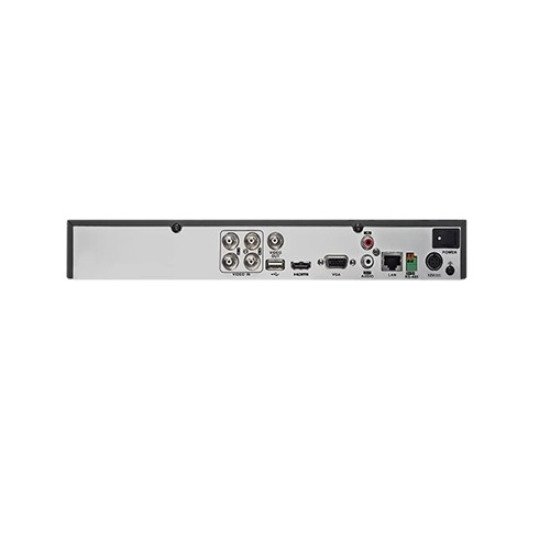

Hikvision DS-7204HQHI-K1 04 Channel Turbo HD DVR
The Hikvision DS-7204HQHI-K1 is a cutting-edge 4-channel Turbo HD DVR that stands at the forefront of advanced surveillance technology. Designed by Hikvision, a renowned leader in the security and surveillance industry, this DVR offers exceptional features and capabilities to meet the diverse needs of modern security applications. Featuring a compact and sleek design, the DS-7204HQHI-K1 is well-suited for various environments, providing reliable and high-performance video recording. Its 4-channel capacity allows users to monitor and record footage from up to four different cameras simultaneously, making it an ideal solution for small to medium-sized surveillance systems.
One of the standout features of this DVR is its support for various video input formats, including HDTVI, AHD, CVI, CVBS, and IP. This versatility ensures compatibility with a wide range of cameras, offering users flexibility in choosing the most suitable cameras for their specific requirements. The DVR supports a maximum recording resolution of 1080p, delivering crisp and detailed video footage for accurate surveillance. The H.265 video compression technology employed by the DS-7204HQHI-K1 enhances video storage efficiency without compromising on image quality. This ensures that users can store more footage on the available storage space while maintaining excellent video clarity. With a maximum storage capacity of 6TB for each disk and support for one SATA interface, the DVR provides ample storage for extended video retention periods. The device is equipped with multiple video output interfaces, including HDMI and VGA, offering flexibility in connecting to different display devices. Additionally, it supports dual-stream video for efficient network bandwidth management. The inclusion of advanced audio features, such as one audio input and one audio output channel, further enhances the surveillance capabilities, allowing users to capture and playback audio alongside video recordings. The DS-7204HQHI-K1 boasts a user-friendly interface for easy configuration and operation, and it supports remote access via Hik-Connect, enabling users to monitor their premises from anywhere with an internet connection. Its robust construction, coupled with a range of temperature and humidity tolerance, ensures reliable performance even in challenging environmental conditions. The Hikvision DS-7204HQHI-K1 4-Channel Turbo HD DVR is a powerful and versatile surveillance solution that combines cutting-edge technology with user-friendly features, making it an ideal choice for businesses, homes, and various other security applications.
